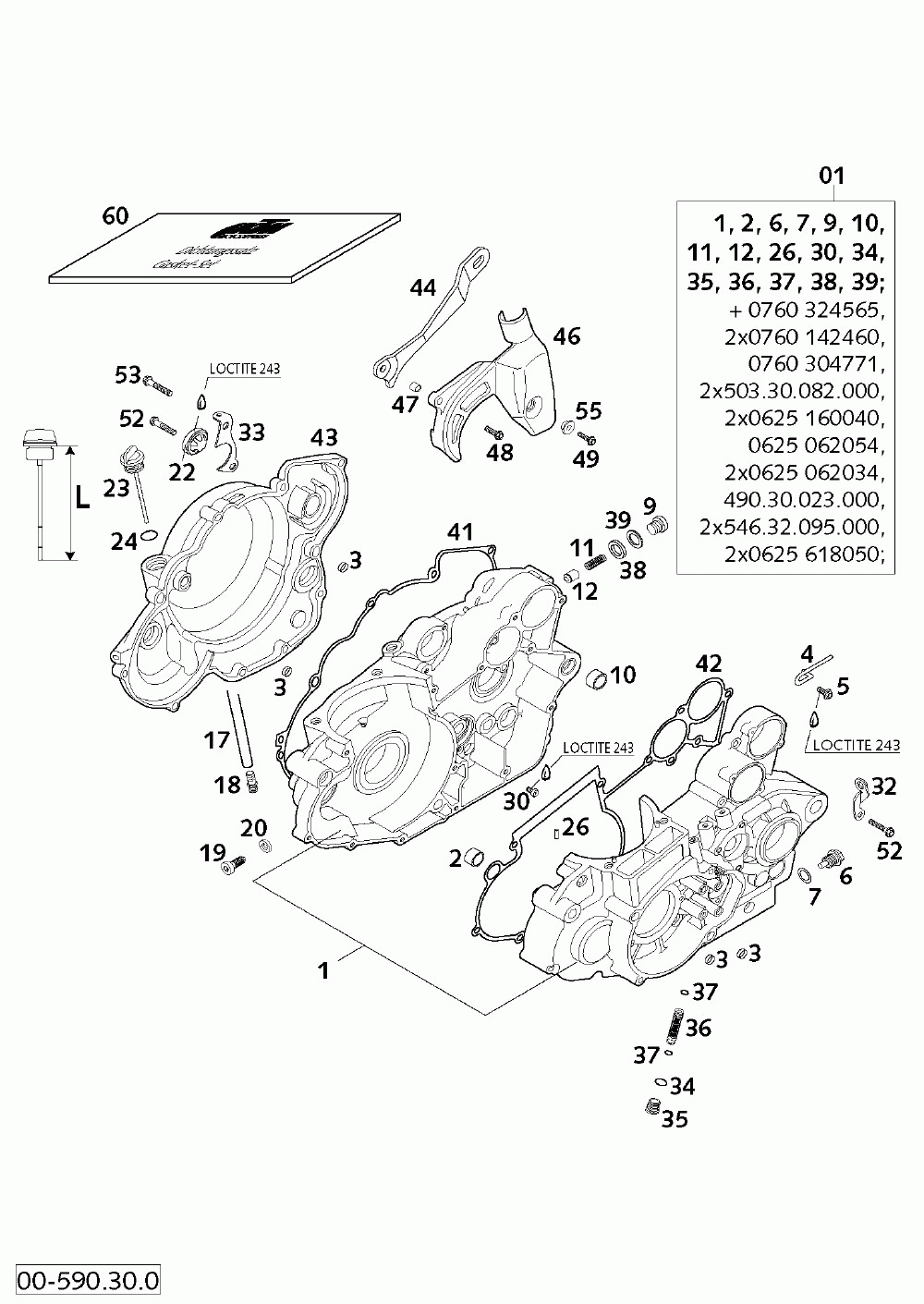

Engine case 400/520

KTM 400/520 SX, EXC RACING ENGINE

Engine case 400/520

#

oem код

название

цена

1

Spacer 15x17x118

Spacer 15x17x118

2

Dowel 17 X 13 X 12

Dowel 17 X 13 X 12

3

Шпонка 9, 8 Х 7 Х 10

Шпонка 9, 8 Х 7 Х 10

4

Hanger For Vent Hose

Hanger For Vent Hose

5

Hh Collar Screw M 6x15 Ws=8

Hh Collar Screw M 6x15 Ws=8

6

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

7

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

9

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

10

Dowel 19 X15, 1x12

Dowel 19 X15, 1x12

11

Pressure Spring L=25mm D=1mm

Pressure Spring L=25mm D=1mm

12

Valve Piston D=10mm

Valve Piston D=10mm

17

Engine Breather Tube 00

Engine Breather Tube 00

18

Штуцер,Фланец M12x1, 5

Штуцер,Фланец M12x1, 5

19

Locating Screw M8 L=23

Locating Screw M8 L=23

20

Cu-seal Ring 8 X 14 X 3

Cu-seal Ring 8 X 14 X 3

22

Стекло - уровень масла

Стекло - уровень масла

23

Oil Dipstick Cpl. L=102mm 2000

Oil Dipstick Cpl. L=102mm 2000

24

Кольцо 19,00x3,00

Кольцо 19,00x3,00

26

Needle Rol.din5402 Nrb 4x9, 8

Needle Rol.din5402 Nrb 4x9, 8

30

Flat Head Screw Din7985-m 5x 8

Flat Head Screw Din7985-m 5x 8

32

Bracket Brake Fluid Reservoir

Bracket Brake Fluid Reservoir

33

Ret.bracket F.brake Lever Hub

Ret.bracket F.brake Lever Hub

34

O-ring 12, 00x2, 00 Nbr 70

O-ring 12, 00x2, 00 Nbr 70

35

Резьбовая пробка

Резьбовая пробка

36

Oil Screen 11, 8x44, 5mm

Oil Screen 11, 8x44, 5mm

37

O-ring 9x1, 5 Nbr

O-ring 9x1, 5 Nbr

38

Seal Ring Din7603 12x18x3

Seal Ring Din7603 12x18x3

43

CLUTCH COVER RACING

CLUTCH COVER RACING

44

Chain Damping Plate Rac. 2005

Chain Damping Plate Rac. 2005

46

Bushing F. Sprocket Cover Rac.

Bushing F. Sprocket Cover Rac.

47

Bushing 6, 5x8x11

Bushing 6, 5x8x11

48

Hh Collar Screw M 6x40 Ws=8

Hh Collar Screw M 6x40 Ws=8

49

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

50

Hh Collar Screw M 6x45 Ws=8

Hh Collar Screw M 6x45 Ws=8

51

Hh Collar Screw M 6x60 Ws=8

Hh Collar Screw M 6x60 Ws=8

52

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

53

Hh Collar Screw M 6x35 Ws=8

Hh Collar Screw M 6x35 Ws=8

54

Hh Collar Screw M 6x75 Ws=8

Hh Collar Screw M 6x75 Ws=8

55

Bush For Spoiler 6x11x16x7, 5

Bush For Spoiler 6x11x16x7, 5

60

Gasket Set Cpl. Racing 2000

Gasket Set Cpl. Racing 2000

48

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30
