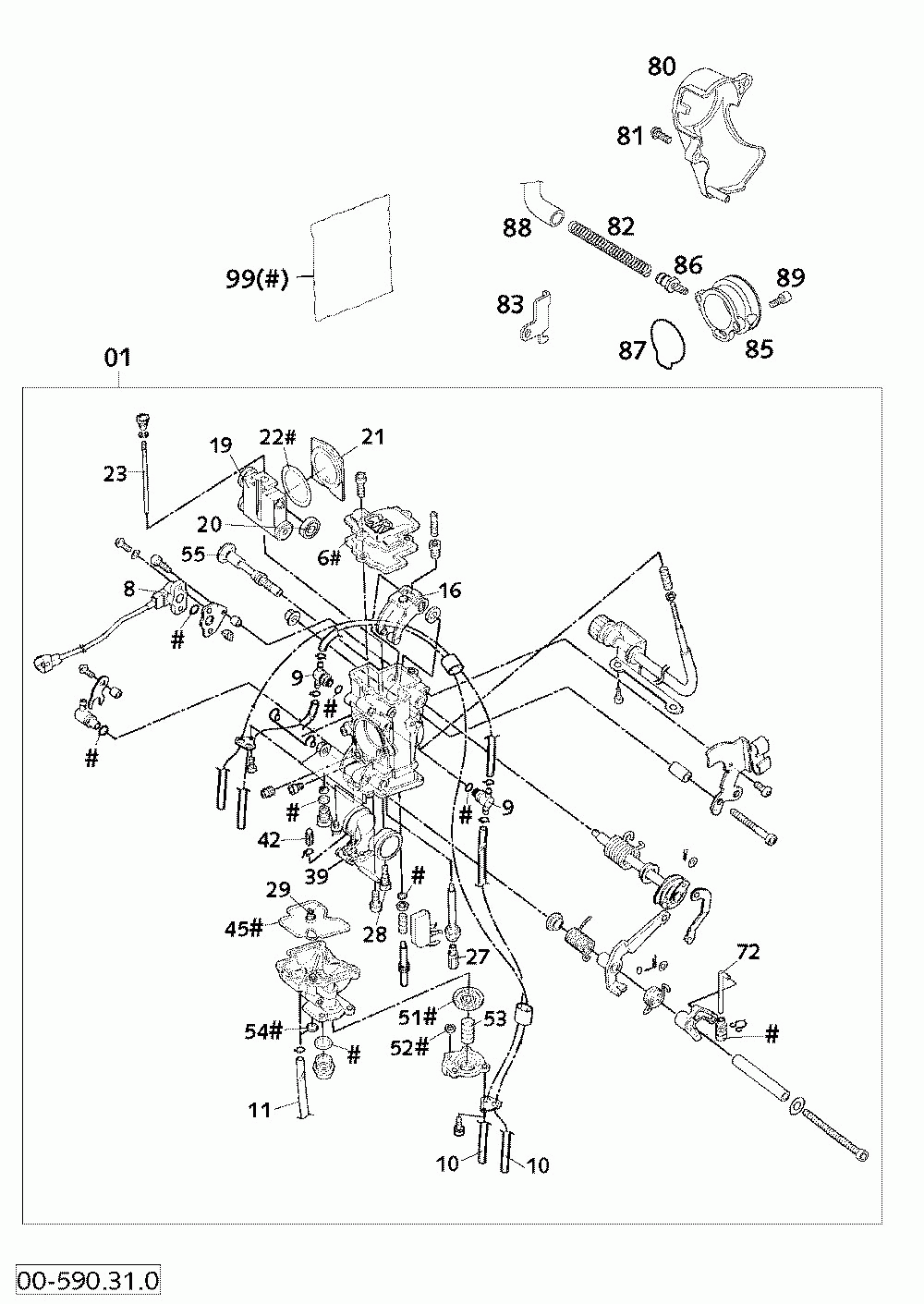

Vergaser keihin mx-fcr39 carburator keihin mx-fcr39 400/520

KTM 400/520 SX, EXC RACING ENGINE
KTM
#oem кодцена
1
59031001000
Carburetor Keih. Mx Fcr39 2000
6
59031028000
Gasket Carburetor Cover
8
59031077000
Tps-sensor Fcr 200mm 99-03
9
59031083000
T-joint Breather Hose
16
59031035051
Link Arm Throttle Valve Cpl.
19
59031035015
Throttle Valve 15 Cpl.
20
59031035050
Втулка
21
59031035153
Прокладка
22
59031035052
Gasket Washer Throttle Valve
23
59031022000
Jet Needle Keihin Obdvr
23
59031021000
Jet Needle Keihin Obdtm
27
54531623172
Main Jet 172 Keihin
27
54531623175
Main Jet 175 Keihin
27
54531623178
Main Jet 178 Keihin
27
54531623180
Main Jet 180 Keihin
28
59031607048
Idle Jet 48
28
59031607050
Idle Jet 50
28
59031607052
Idle Jet 52
29
59031051085
Жиклер #85
39
59031009000
Поплавок
45
59031010000
Прокладка поплавковой камеры
51
59031057000
Диафрагмма
52
59031058000
Прокладка
53
59031059000
Coil Spring
54
59031058100
Кольцо уплотнительное
55
59031048000
Starter Valve Cpl.
72
59031061000
Rod Accelerator Pump
80
59031086000
Carburetor Cover Racing 2000
81
0015060163
Hh Collar Screw M 6x16 Ws=8
82
32003073000
Pressure Spring
83
59031029024
Slide Stop 24, 5mm
85
59031040100
Intake Funnel Fcr/fcr-mx 2001
87
59031040010
O-ring For Intake Funnel
88
59031050100
Engine Breather Tube 00
89
0912050123
Ah Screw Din0912-m 5x12
99
59031099000
Gasket Set Fcr Keihin
