Schmiersystem lubricating system 400/620 Оригинальные запчасти для мотоциклов KTM 400/620 SUPER COMPETITION, 620 SC SUPER MOTO ENGINE (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Оригинальные запчасти для мотоциклов
KTM
2000
400/620 SUPER COMPETITION, 620 SC SUPER MOTO ENGINE

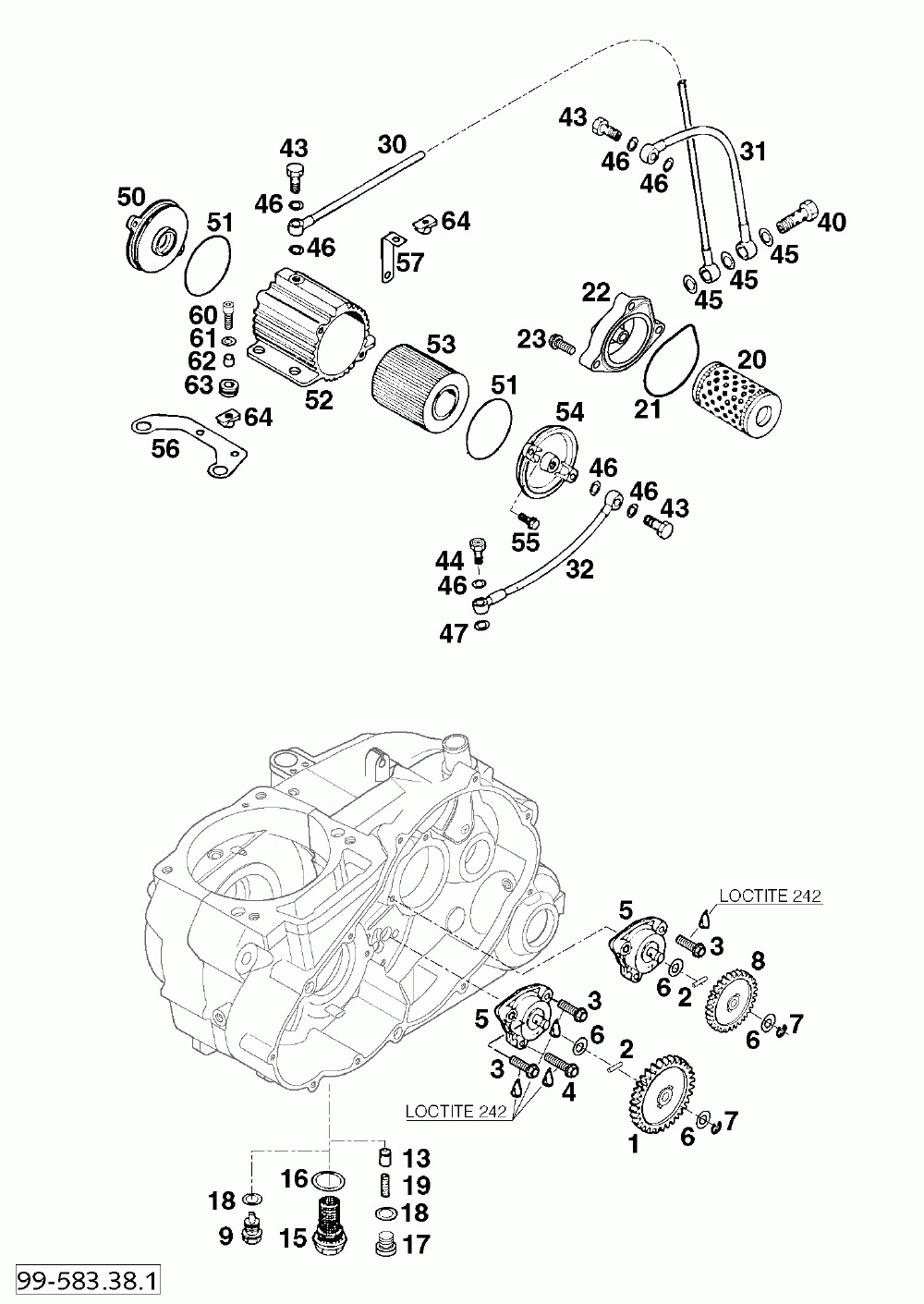

Schmiersystem lubricating system 400/620
Schmiersystem lubricating system 400/620

Schmiersystem lubricating system 400/620

KTM 400/620 SUPER COMPETITION, 620 SC SUPER MOTO ENGINE

Schmiersystem lubricating system 400/620

#

oem код

название

цена

1

Oil Pump Gear 31-t

Oil Pump Gear 31-t

2

Needlerol.din5402 Nra 2, 5x19, 8

Needlerol.din5402 Nra 2, 5x19, 8

3

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

4

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

5

Oil Pump Mikuni G-73-10

Oil Pump Mikuni G-73-10

6

Stop Disk 8, 1 X 15 X 0, 5

Stop Disk 8, 1 X 15 X 0, 5

7

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

8

Oil Pump Gear 26-t

Oil Pump Gear 26-t

9

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

13

Valve Piston D=10mm

Valve Piston D=10mm

15

Oil Drain Plug M22x1, 5

Oil Drain Plug M22x1, 5

16

Cu-seal Ring Din7603-22x27x2

Cu-seal Ring Din7603-22x27x2

17

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

18

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

19

Pressure Spring L=25mm D=1mm

Pressure Spring L=25mm D=1mm

20

Oil Filter Long

Oil Filter Long

21

Gasketring Oilf.cover Viton

Gasketring Oilf.cover Viton

22

Oil Filter Cover 2001

Oil Filter Cover 2001

30

Oil Line Filter/ Micro-filter

Oil Line Filter/ Micro-filter

31

Oil Line Filter/inject.va. R/s

Oil Line Filter/inject.va. R/s
