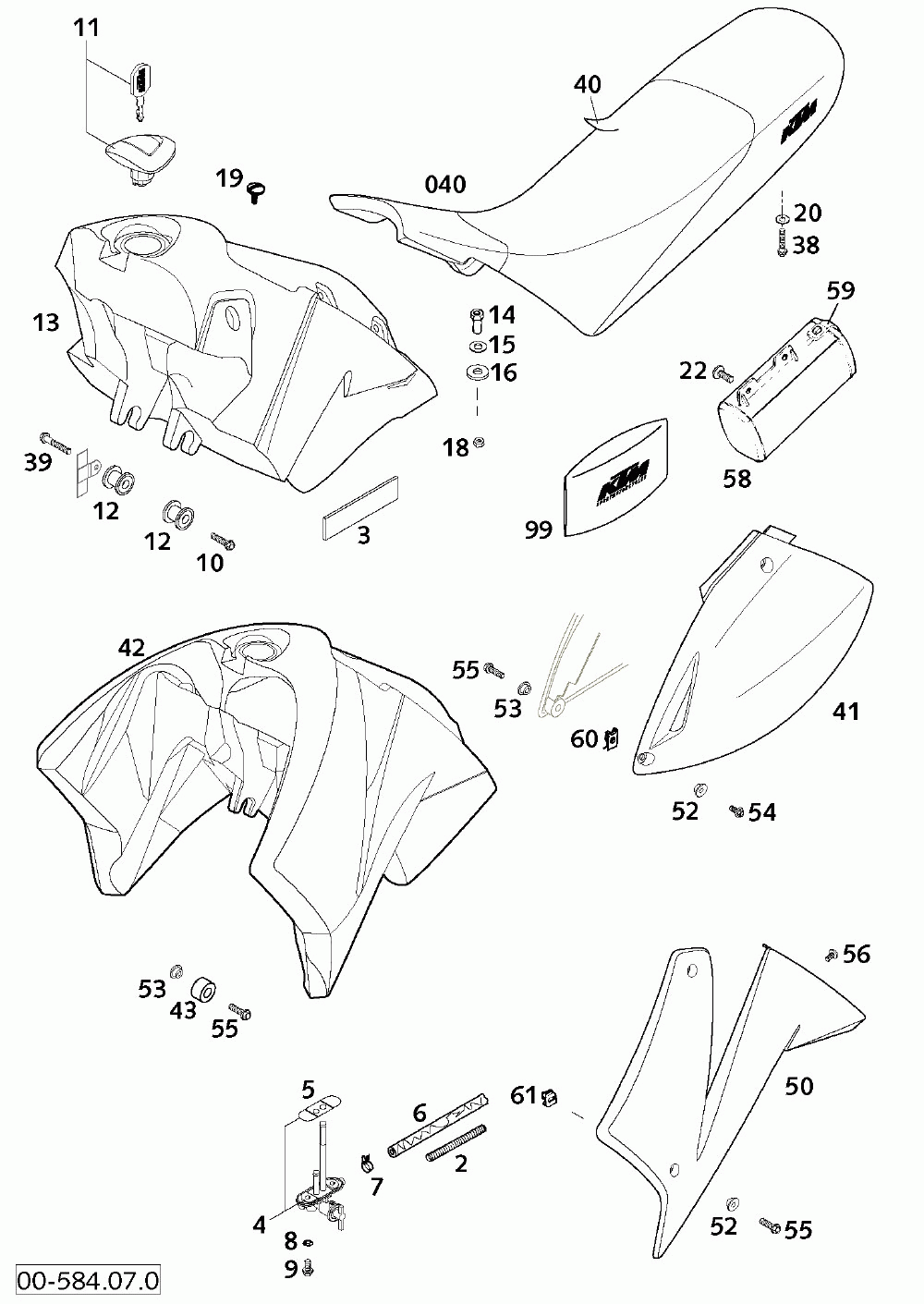

Tank, sitzbank, verkleidung tank, seat, cover 400/640

KTM 400/640 LC4 USA CHASSIS
KTM
#oem кодцена
2
58036006100
Pressure Spring 0, 9mm
3
54601097000
Rubber Strip 85x25x3 Mm
4
51107004000
Fuel Cock Cpl.mikuni Ck-69 '96
5
58307106100
Gasket Fuel Cock Mikuni
7
58031005000
Хомут 12мм
8
0603061001
Cu-seal Ring Din7603-6x10x1
9
0015060123
Hh Collar Screw M 6x12 Ws=8
10
0015060253
Hh Collar Screw M 6x25 Ws=8
11
58407008100
Tank Plug Lc4 Usa '99
12
58307113250
Tank Bushing Cpl. 12 X 34 X 25
13
58407013300
Fuel Tank 11li.cpl.lc4 Black
14
58307014000
Special Nut M8
15
58307019000
Washer 10, 5 X 25 X 1, 5
16
51005067100
Insolate Washer 12x28x3
18
0934080003
Hexagon Nut Din0934-m 8
19
58007044000
Oval Head Screw M6x15
20
50232050000
Washer 6, 2x18x2
22
0014060153
Hh Collar Screw M 6x15 Ws=8
38
0015060353
Hh Collar Screw M 6x35 Ws=8
39
0015060303
Hh Collar Screw M 6x30 Sw=8
40
58407040200
Seat Standard Orange Lc4 '98
40
58407040500
Seat Standard Silver Lc4 '99
