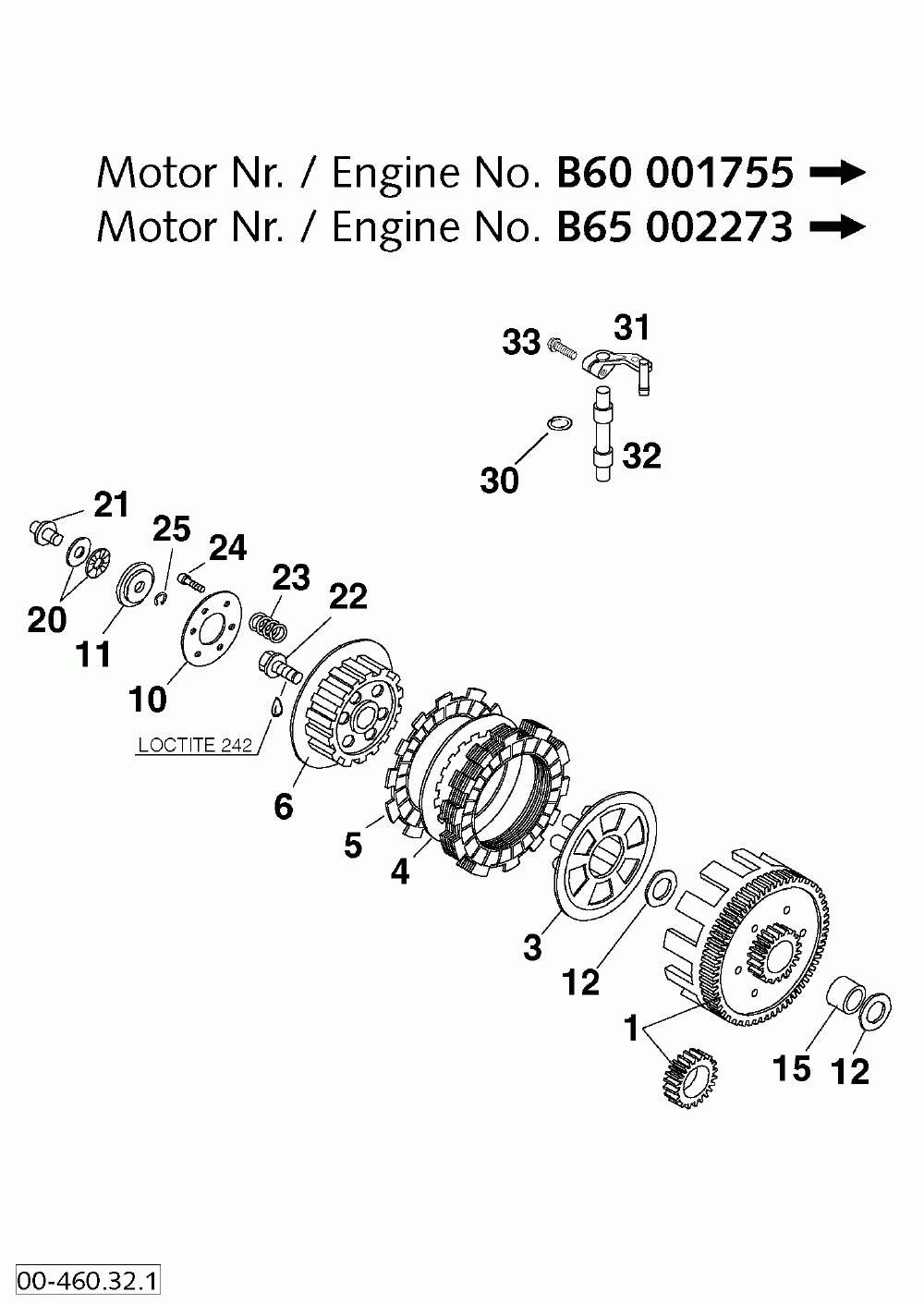

Kupplung clutch 60/65

KTM 60/65 SX ENGINE

Kupplung clutch 60/65

#

oem код

название

цена

1

Prim.dr.w.clutch Hub 23:75 '99

Prim.dr.w.clutch Hub 23:75 '99

3

Pressure Cap 60/65 Ccm '98

Pressure Cap 60/65 Ccm '98

4

Intermediate Disk Steel

Intermediate Disk Steel

5

Lining Disk Kit

Lining Disk Kit

6

Inner Clutch Hub 60/65 Ccm '98

Inner Clutch Hub 60/65 Ccm '98

10

Spring Retainer 25x63, 5x2

Spring Retainer 25x63, 5x2

11

Carrier For Axial Bearing

Carrier For Axial Bearing

12

Stop Disk 17, 2x30x1, 5

Stop Disk 17, 2x30x1, 5

15

Inner Ring 22x17x20, 5

Inner Ring 22x17x20, 5

20

Axial Bearing 6x19x2

Axial Bearing 6x19x2

21

Pressure Piece

Pressure Piece

22

Hh Collar Screw M10x20

Hh Collar Screw M10x20

23

Clutch Spring Reinforced 60/65

Clutch Spring Reinforced 60/65

24

Flat Head Din7991-m 6x20

Flat Head Din7991-m 6x20

25

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

30

O-ring 7, 66x1, 78

O-ring 7, 66x1, 78

31

Clutch Release Lever Cpl. '99

Clutch Release Lever Cpl. '99

32

Disengaging Shaft Loose '99

Disengaging Shaft Loose '99

33

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8
