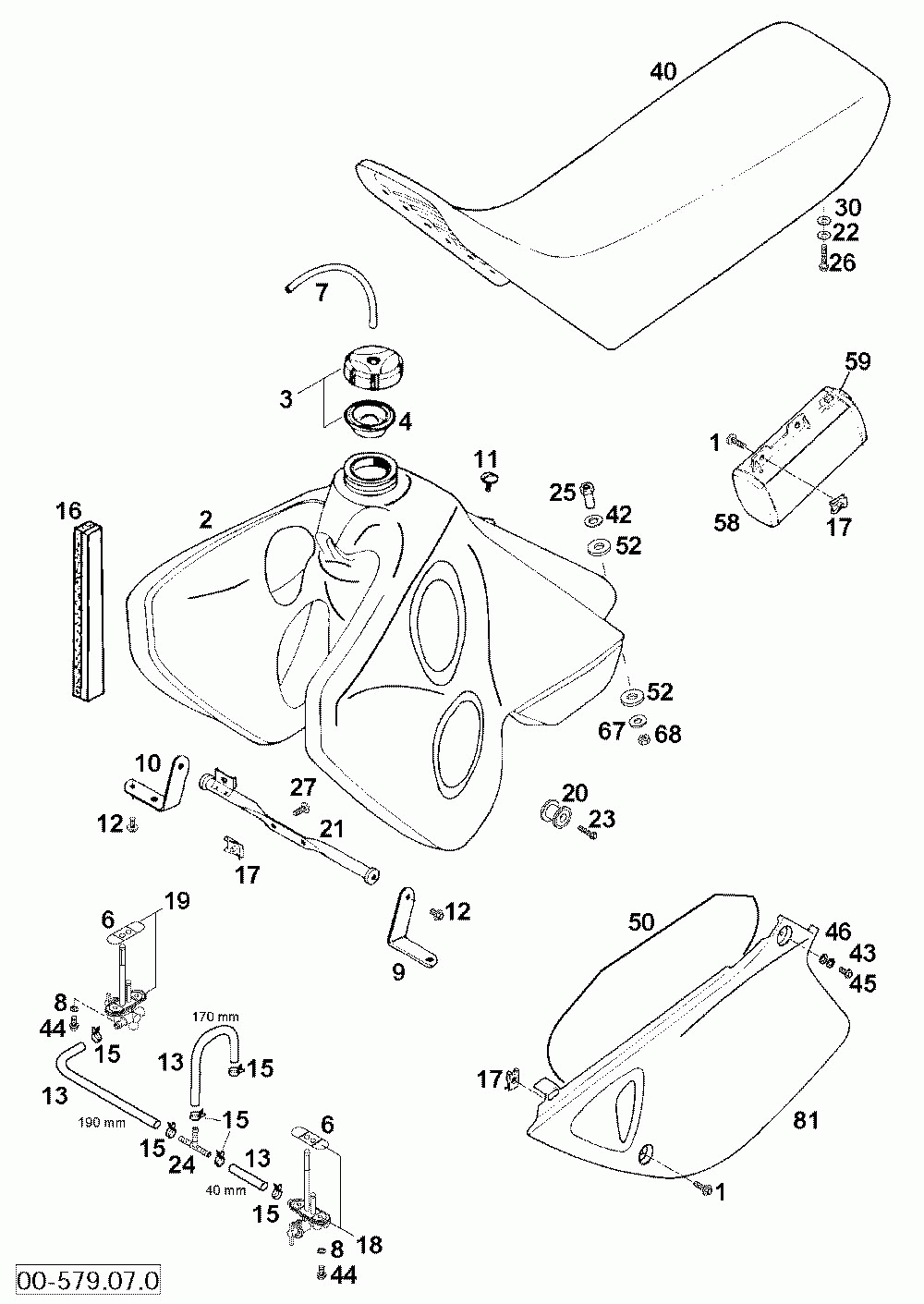

Tank, sitzbank, verkleidung tank, seat, cover 640 ls-e/mil 2000

KTM 640 LS-E/mil
KTM
#oem кодцена
1
0014060203
Hh Collar Screw M 6x20 Ws=8
3
56007008144
Tank Cap Cpl. Large
4
56007009100
Gasket For Tank Cap
6
58307106100
Gasket Fuel Cock Mikuni
8
0603061001
Cu-seal Ring Din7603-6x10x1
11
58007044000
Oval Head Screw M6x15
12
0024060106
Hh Collar Screw M6x10 Tx30
15
58031005000
Хомут 12мм
16
58107011000
Foam Rubber Strip
17
54603048100
Range Change Metal Nut M6
18
58307005100
Fuel Cock Mikuni Ck-84 '96
19
51107004000
Fuel Cock Cpl.mikuni Ck-69 '96
20
58307113250
Tank Bushing Cpl. 12 X 34 X 25
22
0125060003
Washer Din0125-a 6, 4
23
0015060253
Hh Collar Screw M 6x25 Ws=8
24
58007015000
T-connector For Fuel Line
25
58307014000
Special Nut M8
26
0015060303
Hh Collar Screw M 6x30 Sw=8
27
0014060153
Hh Collar Screw M 6x15 Ws=8
30
0799050000
Tab Washer Din6799 Rs5
42
58307019000
Washer 10, 5 X 25 X 1, 5
44
0015060123
Hh Collar Screw M 6x12 Ws=8
45
0015080553
Hh Collar Screw M 8x55 Ws=10
46
31004001100
Washer 10, 5 X 21 X 3
50
58308041050
Heat Protector
52
51005067100
Insolate Washer 12x28x3
58
58012058000
Tool Box Cpl. '92
59
58012058050
Rubber For Tool Box '92
67
0021080003
Washer Din9021-a 8, 4
68
0934080003
Hexagon Nut Din0934-m 8
