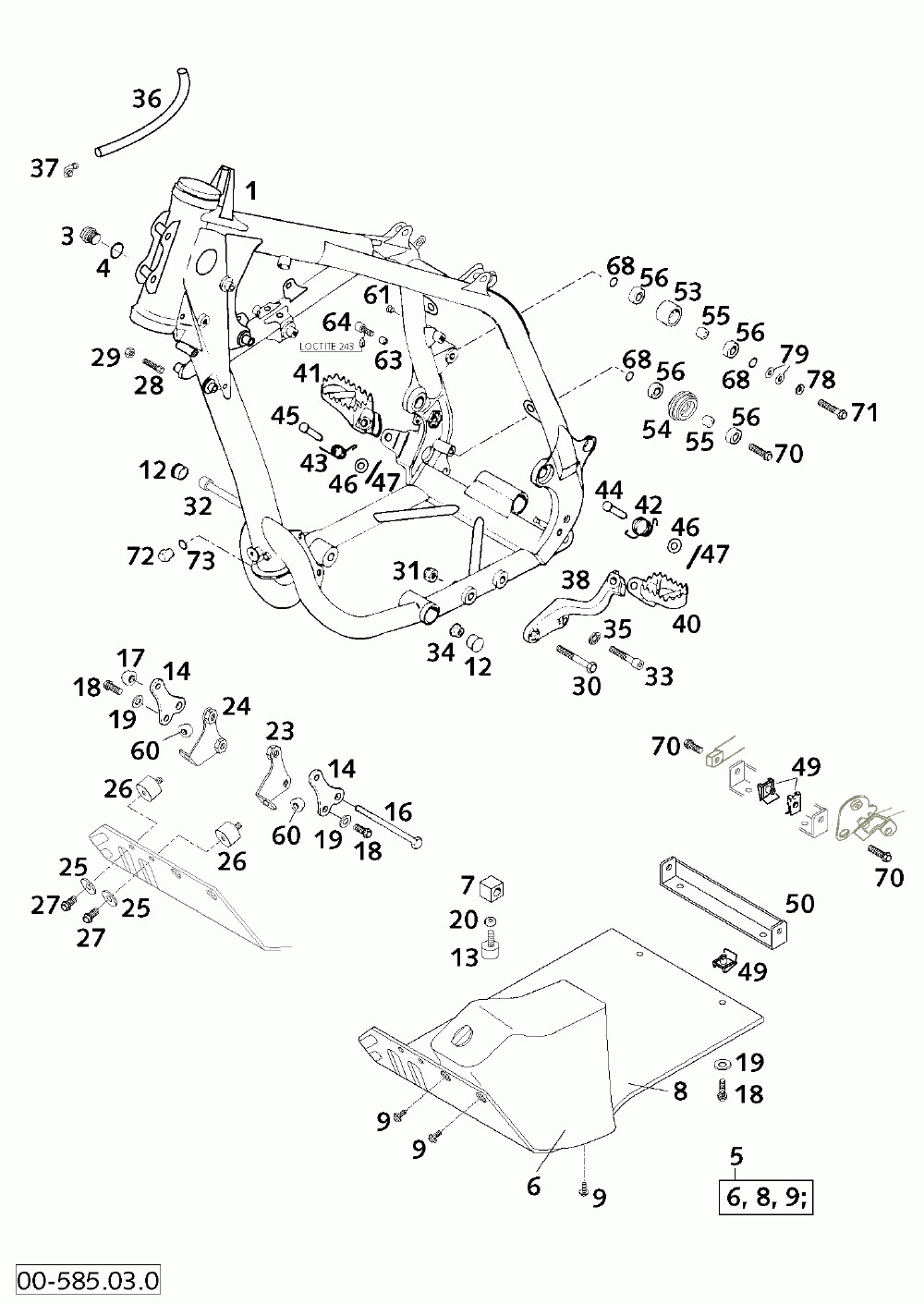

Rahmen, motorschutz frame, engine protector 660

KTM 660 LC4 RALLYE CHASSIS
KTM
#oem кодцена
3
0910160153
Plug Din0910-m16x1, 5
4
0603162220
Cu-seal Ring 16x22x2
9
0014060153
Hh Collar Screw M 6x15 Ws=8
12
71001012100
Pvc Cap D=22mm
13
58303070000
Stop Rubber M8
14
58303055000
Engine Support Agw '94
16
0931101103
Hh Screw Din0931-m10x110
17
49009082000
Self Locking Nut M10 Fk8
18
0015080203
Hh Collar Screw M 8x20 Ws=10
19
0125080003
Washer Din0125-a 8, 4
20
0934080003
Hexagon Nut Din0934-m 8
25
0021080003
Washer Din9021-a 8, 4
26
43205262000
Rubber Grommet 30x15-m8x12-(1)
27
0015080163
Hh Collar Screw M 8x16 Ws=10
28
59001037000
Special Screw M8x26 Ws=10
30
0931100603
Hh Screw Din0931-m10x60
31
0985100003
гайка Din0985-m10
32
0912101603
Ah Screw Din0912-m10x160
33
0912100453
Ah Screw Din0912-m10x45
34
54630044000
Collar Nut M10 Ws=13
35
50233041100
Pair Of Washers M10 Nordlock
37
50303089000
Angle Piece '97
38
58303038000
Footrest Bracket L/s '93
42
58303041000
Footrest Spring L/s '93
43
54603041000
Footrest Spring L/s & R/s
44
58303044000
Bolt For Footrest
45
54603044000
Bolt For Footrest 9, 8 X 50
46
0125100003
Washer Din0125-a10, 5
47
0094032253
Pin Din0094-3, 2x25 Steel
49
54603048000
Range Change Metal Nut M8
53
50203053000
Chain Roll D=30mm
54
52303053100
Chain Roll D=35mm 125-380 '99
55
74003021000
Bushing 8.2 X 12 X 6
56
0625006087
Grooved Ball Bear. 608 2rs C3
60
54310086200
Self Locking Nut M8 10.9
61
54403135000
Plastic Cap Sfl10
63
54305069000
Bushing 7x12x15, 4
64
0912060163
Ah Screw Din0912-m 6x16
68
36003014000
Стопорная шайба 8 мм
70
0025080306
Hh Collar Screw M8x30 Tx40
71
0015080353
Hh Collar Screw M 8x35 Ws=10
72
0910100003
Plug Din0910-m 10x1
73
58038022900
Cu-seal Ring 10 X 14 X 1, 5
78
0797080003
Toothlock Washer Din6797-j 8, 4
