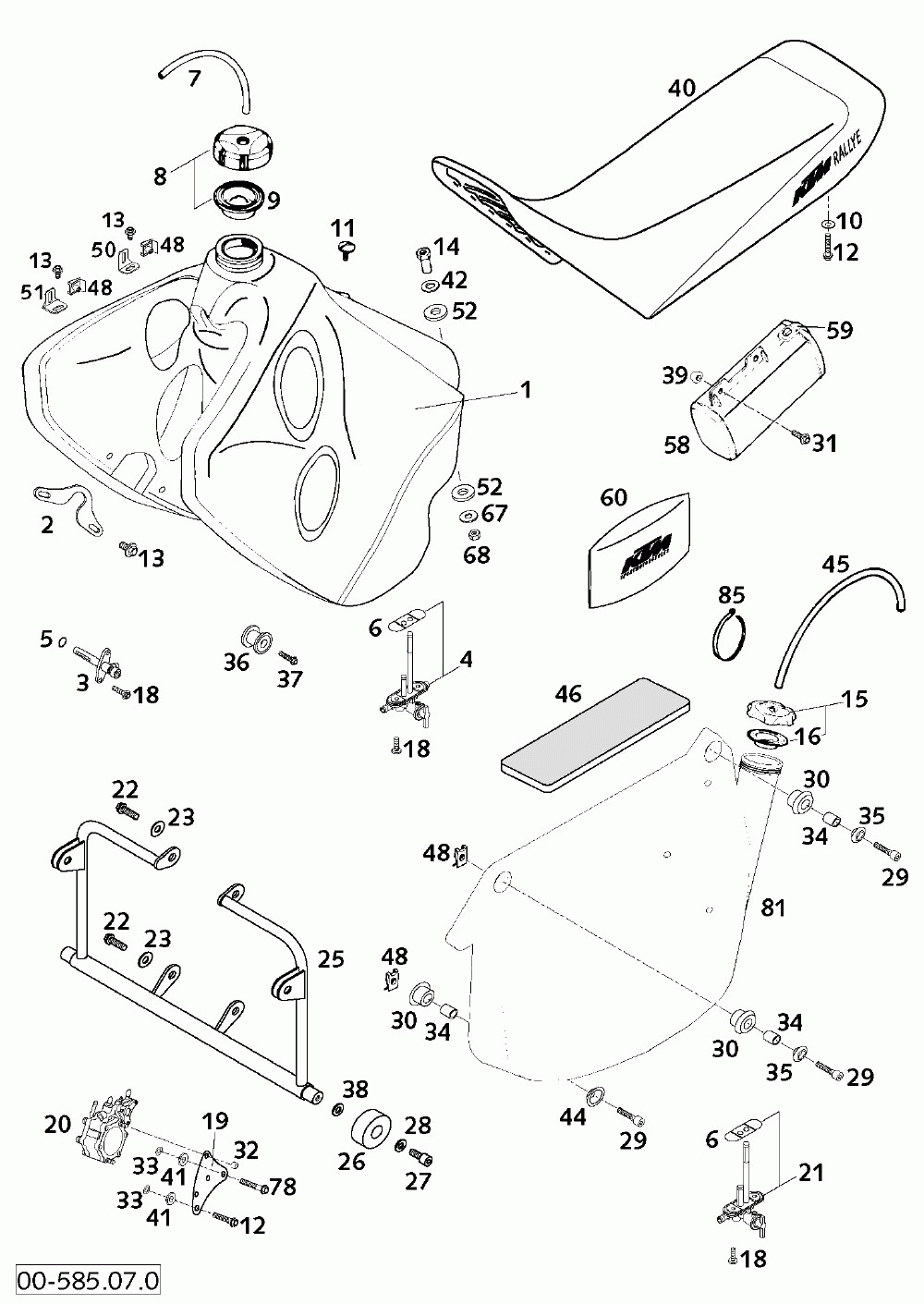

Tank, sitzbank, seitentanks tank, seat, side tank 660

KTM 660 LC4 RALLYE CHASSIS
KTM
#oem кодцена
2
58507023000
Bracket For 30 Liter Tank
3
58507003000
Fuel Cock Cpl. Small Rallye'96
4
58307105300
Fuel Cock Mikuni Ck-86 '96
5
0770020130
O-ring 1, 78x10, 82x14, 38 2-013
6
58307106100
Gasket Fuel Cock Mikuni
8
56007008144
Tank Cap Cpl. Large
9
56007009100
Gasket For Tank Cap
10
0125060003
Washer Din0125-a 6, 4
11
58007044000
Oval Head Screw M6x15
12
0015060303
Hh Collar Screw M 6x30 Sw=8
13
0024060106
Hh Collar Screw M6x10 Tx30
14
58307014000
Special Nut M8
15
49007008044
Filler Cap Cpl. Small
16
59007009000
Gasket For Filler Cap High
18
0017060203
Ejot Pt Screw K60x20 Ws=6
19
58312095100
Bracket For Fuel Pump
20
58312093000
Fuel Pump Mikuni Rallye
21
58307005100
Fuel Cock Mikuni Ck-84 '96
34
56505069000
Spacer Bushing 8, 4x12x16
36
58307113250
Tank Bushing Cpl. 12 X 34 X 25
37
0015060253
Hh Collar Screw M 6x25 Ws=8
38
12011016000
Washer 6 X 12 X 3
39
56509064100
Self Locking Nut M6 10.9
41
50213161000
Collar Bushing
42
58307019000
Washer 10, 5 X 25 X 1, 5
44
72210079000
Шайба
46
58308041050
Heat Protector
48
54603048100
Range Change Metal Nut M6
50
58211001060
Bracket L/s Top '97
51
58211001062
Bracket Below For Mask '97
52
51005067100
Insolate Washer 12x28x3
58
58012058000
Tool Box Cpl. '92
59
58012058050
Rubber For Tool Box '92
60
58329099000
Original Equipment Tool Kit
67
0021080003
Washer Din9021-a 8, 4
68
0934080003
Hexagon Nut Din0934-m 8
78
0015060353
Hh Collar Screw M 6x35 Ws=8
85
44011076305
Cable Tie 300/4, 8mm Black
