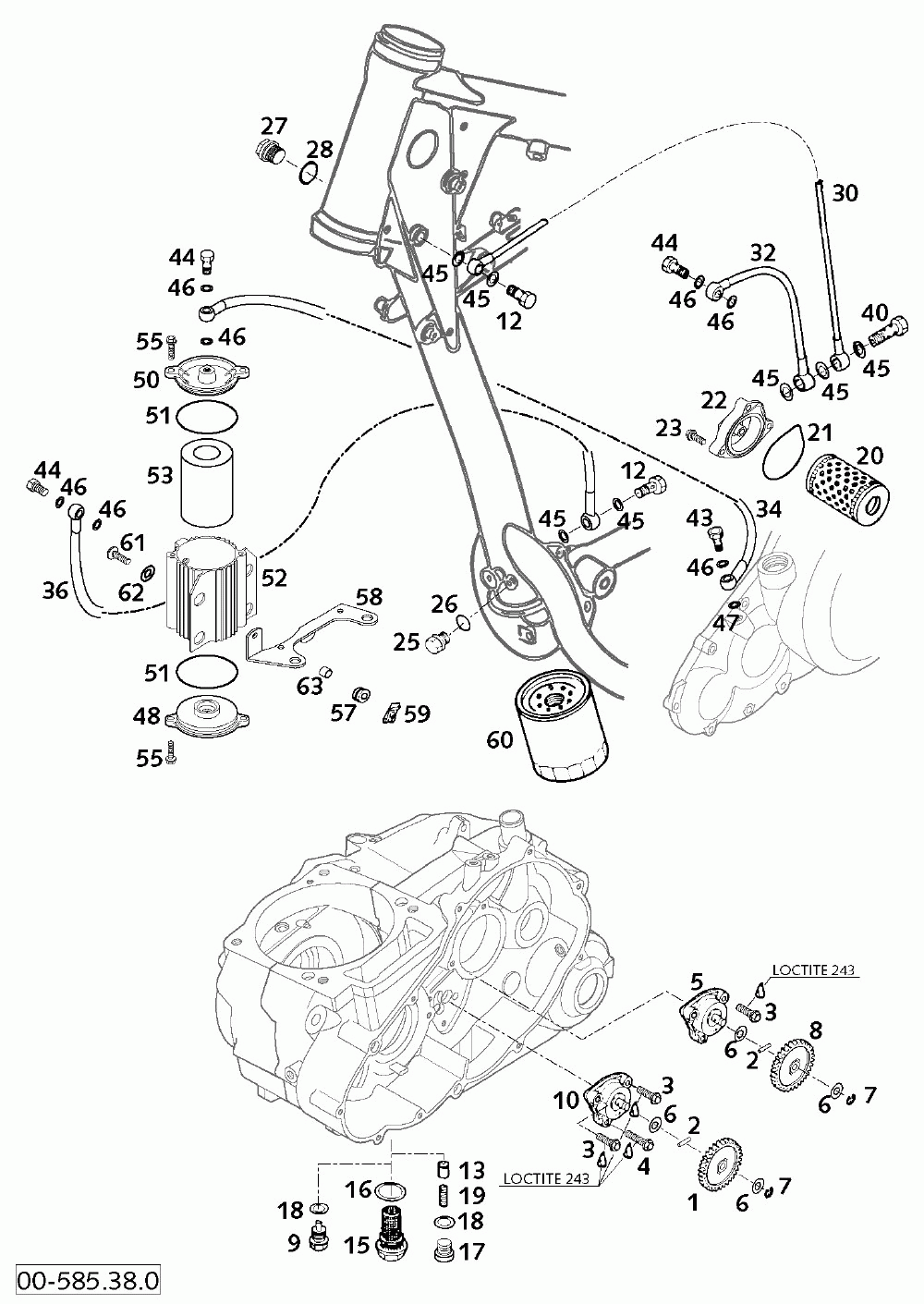

Schmiersystem lubricating system 660

KTM 660 LC4 RALLYE ENGINE
KTM
#oem кодцена
1
58038001100
Oil Pump Gear 31-t
2
0402251980
Needlerol.din5402 Nra 2, 5x19, 8
3
0015060203
Hh Collar Screw M 6x20 Ws=8
4
0015060253
Hh Collar Screw M 6x25 Ws=8
5
58038007700
Oil Pump Mikuni G-73-10
6
58038007755
Stop Disk 8, 1 X 15 X 0, 5
7
0799060000
Tab Washer Din6799-rs 6, 0
8
58438001000
Oil Pump Gear 26-t
9
58030021000
Пробка сливная с магнитом M12x1,5
12
54313025000
Hollow Screw M10 X 1
13
58038028000
Valve Piston D=10mm
15
58038019100
Oil Drain Plug M22x1, 5
16
58038017100
Cu-seal Ring Din7603-22x27x2
17
0908120153
Plug Din0908-m12x1, 5
18
58038022000
Кольцо 12x18x1, 5
19
58038023300
Pressure Spring L=25mm D=1mm
20
58038005100
Oil Filter Long
21
58030009000
Gasketring Oilf.cover Viton
22
58030008700
Oil Filter Cover 2001
25
0910100003
Plug Din0910-m 10x1
26
58038022900
Cu-seal Ring 10 X 14 X 1, 5
27
0910160153
Plug Din0910-m16x1, 5
28
0603162220
Cu-seal Ring 16x22x2
30
58038234700
Oil Line Filter-frame Tube
32
58338034000
Oil Line Clutch Cover-frame
44
58038029000
Banjo Bolt M8x1
45
0603100141
Уплотнитель шланга
46
0603082121
Seal Ring Cu Din7603- 8x12x1
47
58038032300
Cu-seal Ring 8 X 12 X 1, 5
48
58038041100
Filter Cover '91
50
58038042100
Filter Cover With M8 X 1
51
0770056020
O-ring 56, 00x2, 00 Viton
52
58038043044
Mikro-filter Housing Cpl. 97
53
58038044000
Micro Filter Element
55
0010050163
Special Screw Din7500-m5, 0x16
57
31008060000
Rubber Sleeve D=8mm Open
59
54603048200
Скоба фиксатор
60
58338045100
Screw Type Filter
61
0014060203
Hh Collar Screw M 6x20 Ws=8
62
0021060003
Washer Din9021-a 6, 4
63
58011039000
Spacer Bushing 6, 5 X 8 X 7
