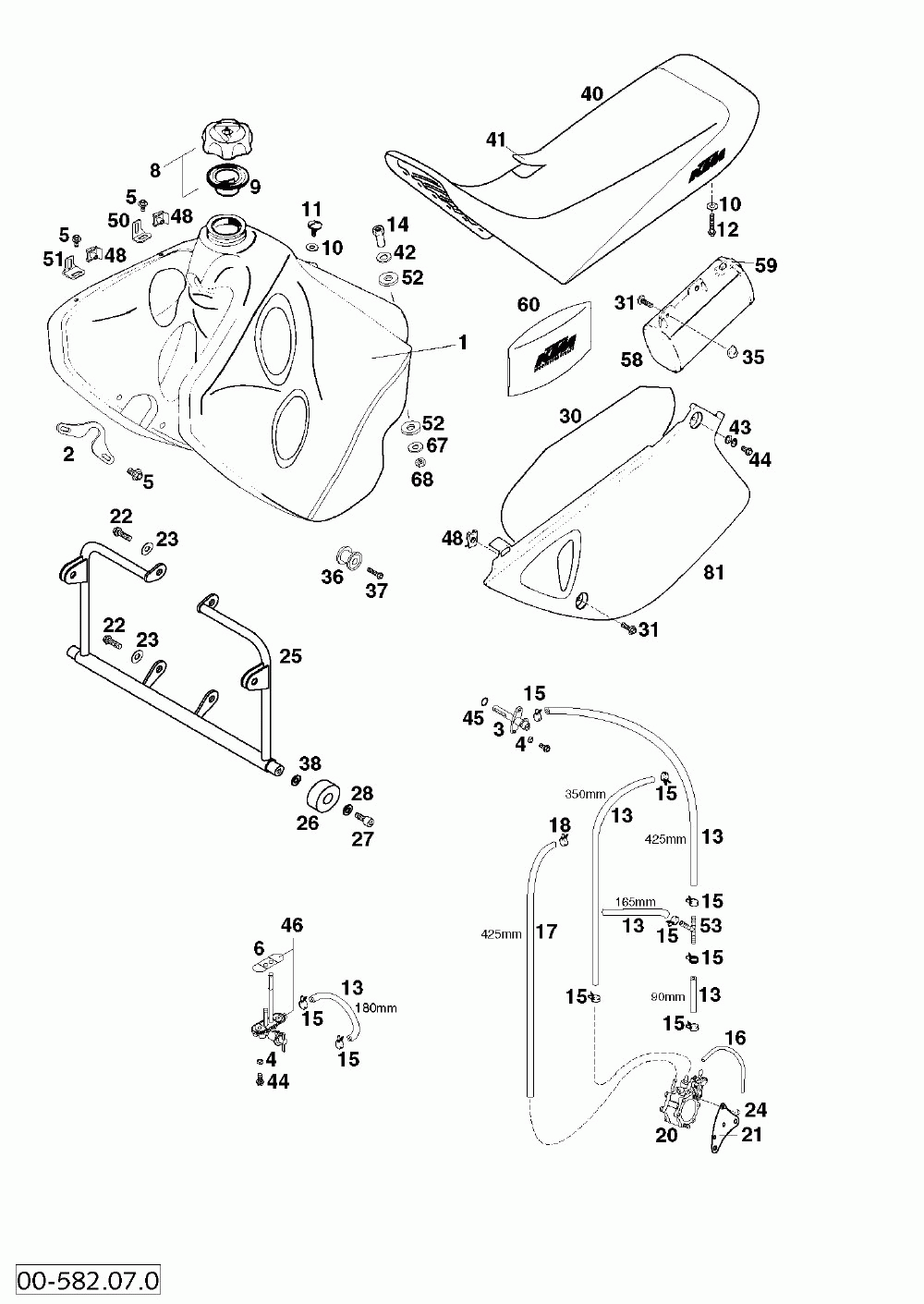

Tank, sitzbank, verkleidung tank, seat, cover 640

KTM LC4 ADVENTURE R 640 CHASSIS
KTM
#oem кодцена
1
5820701304406
Fuel Tank 30li. Nylon Adv. '98
2
58507023000
Bracket For 30 Liter Tank
3
58507003000
Fuel Cock Cpl. Small Rallye'96
4
0603061001
Cu-seal Ring Din7603-6x10x1
5
0024060106
Hh Collar Screw M6x10 Tx30
6
58307106100
Gasket Fuel Cock Mikuni
8
59007008044
Filler Cap Cpl. With Valve
9
56007009100
Gasket For Tank Cap
10
0125060003
Washer Din0125-a 6, 4
11
58007044000
Oval Head Screw M6x15
12
0015060303
Hh Collar Screw M 6x30 Sw=8
14
58307014000
Special Nut M8
15
58007117000
Ydnac-clamp 10107 10mm
18
58007017000
Ydnac Clamp 10101 (9mm)
20
58312093000
Fuel Pump Mikuni Rallye
21
58312095100
Bracket For Fuel Pump
22
0015060203
Hh Collar Screw M 6x20 Ws=8
23
0021060003
Washer Din9021-a 6, 4
24
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
25
5851209200090
Bracket 30lt Tank Silver '97
26
50107015000
Tankroll 13x36x16
27
0912060163
Ah Screw Din0912-m 6x16
30
58308041050
Heat Protector
31
0014060203
Hh Collar Screw M 6x20 Ws=8
35
50235033300
Snap-nut Holder M6 Kp142
36
58307113250
Tank Bushing Cpl. 12 X 34 X 25
37
0015060253
Hh Collar Screw M 6x25 Ws=8
38
12011016000
Washer 6 X 12 X 3
40
58207040300
Seat Adventure Blue 2000
41
58207040550
Seat Cover Adventure 2003
42
58307019000
Washer 10, 5 X 25 X 1, 5
43
50233041000
Pair Of Washers M 6 Nordlock
44
0015060123
Hh Collar Screw M 6x12 Ws=8
45
0770020130
O-ring 1, 78x10, 82x14, 38 2-013
46
51107004000
Fuel Cock Cpl.mikuni Ck-69 '96
48
54603048100
Range Change Metal Nut M6
50
58211001060
Bracket L/s Top '97
51
58211001062
Bracket Below For Mask '97
52
51005067100
Insolate Washer 12x28x3
53
58007015000
T-connector For Fuel Line
58
58012058000
Tool Box Cpl. '92
59
58012058050
Rubber For Tool Box '92
60
58329099000
Original Equipment Tool Kit
67
0021080003
Washer Din9021-a 8, 4
68
0934080003
Hexagon Nut Din0934-m 8
81
5830804100004
Side Cover Orange L/s '98
