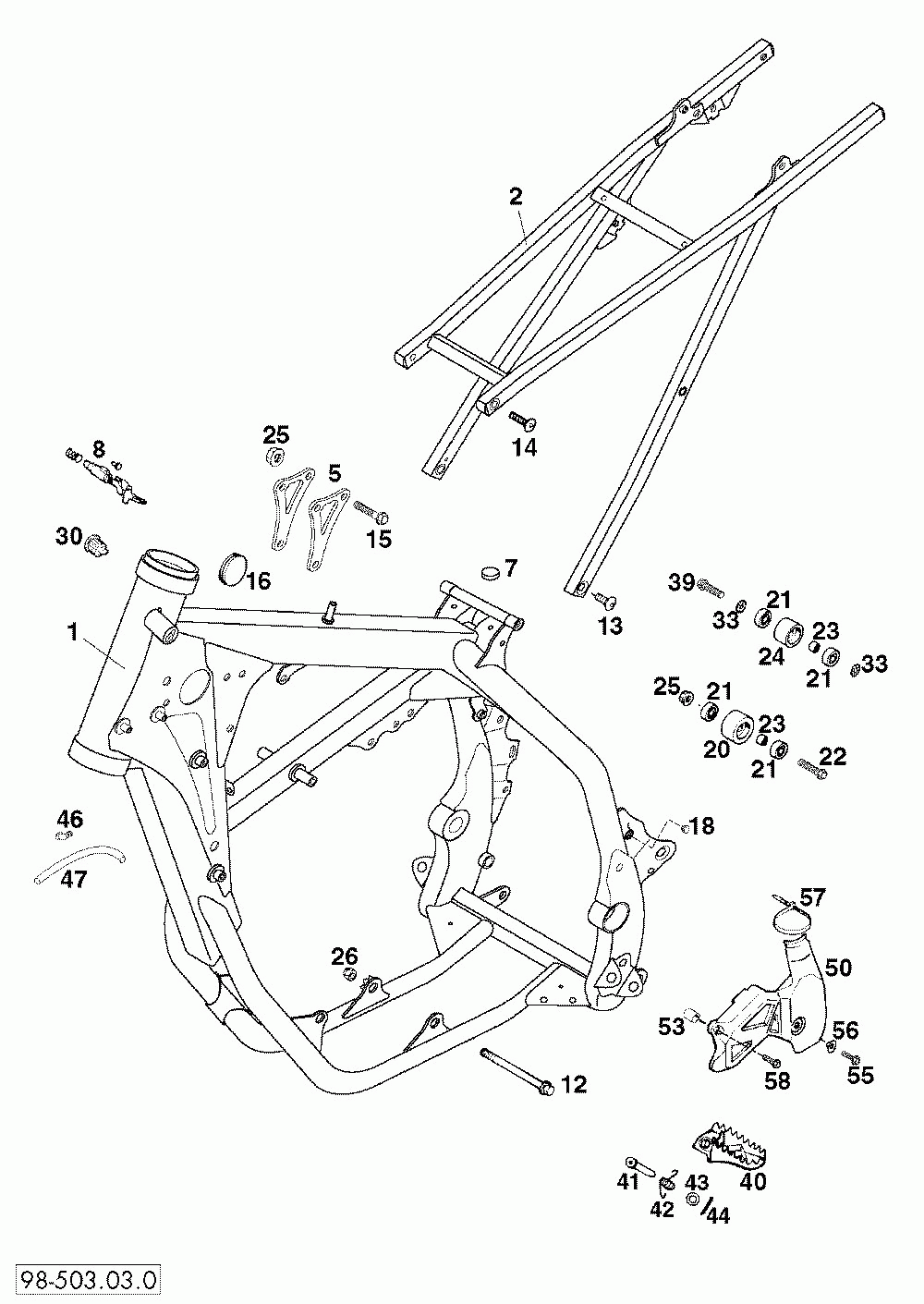

Rahmen, ausleger frame, sub frame 125/200 98

KTM 125 / 200 SX, MXC, EXC, EGS CHASSIS
KTM
#oem кодцена
1
50303001000
Frame 125-200 Sx, Mxc, Exc '98
2
50303002044
Sub Frame Cpl.alu 125-380 98
5
50303013000
Reinforcing Bracket 125 '98
5
52303013000
Reinforcing Bracket 200 '98
7
50307020000
Rubber Buffer For Tank '98
8
71003007000
Steering Head Lock Cpl. Zadi
12
54603013000
Engine Brac.scr. M10x105 Ws=13
13
54610052000
Винт M8x20 Ws=6
14
54510052100
Sprocket Screw-ah M8x26 Ws=6
15
56530079000
Collar Screw M8x42 Ws=13 10.9
16
54606004000
Plug 37mm
18
54403135000
Plastic Cap Sfl10
20
52303053100
Chain Roll D=35mm 125-380 '99
21
0625006087
Grooved Ball Bear. 608 2rs C3
22
0015080353
Hh Collar Screw M 8x35 Ws=10
23
74003021000
Bushing 8.2 X 12 X 6
24
50203053000
Chain Roll D=30mm
25
54310086200
Self Locking Nut M8 10.9
26
54310086100
Self Locking Nut M10 Cu Ws=14
30
42007049000
Plastic Cap
33
36003014000
Стопорная шайба 8 мм
39
0025080306
Hh Collar Screw M8x30 Tx40
40
5460304010090
Foot Ped L/s Silver '98
41
54603044000
Bolt For Footrest 9, 8 X 50
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
46
50303089000
Angle Piece '97
50
54607061000
Sprocket Cover
53
54613038150
Bushing 6, 5x8x11
55
0015050203
Hh Collar Screw M 5x20 Ws=8
56
54603073000
Collar Bushing 5 X 10 X 6 Alu
57
44011076200
Стяжка пластиковая 6мм
58
0015060253
Hh Collar Screw M 6x25 Ws=8
