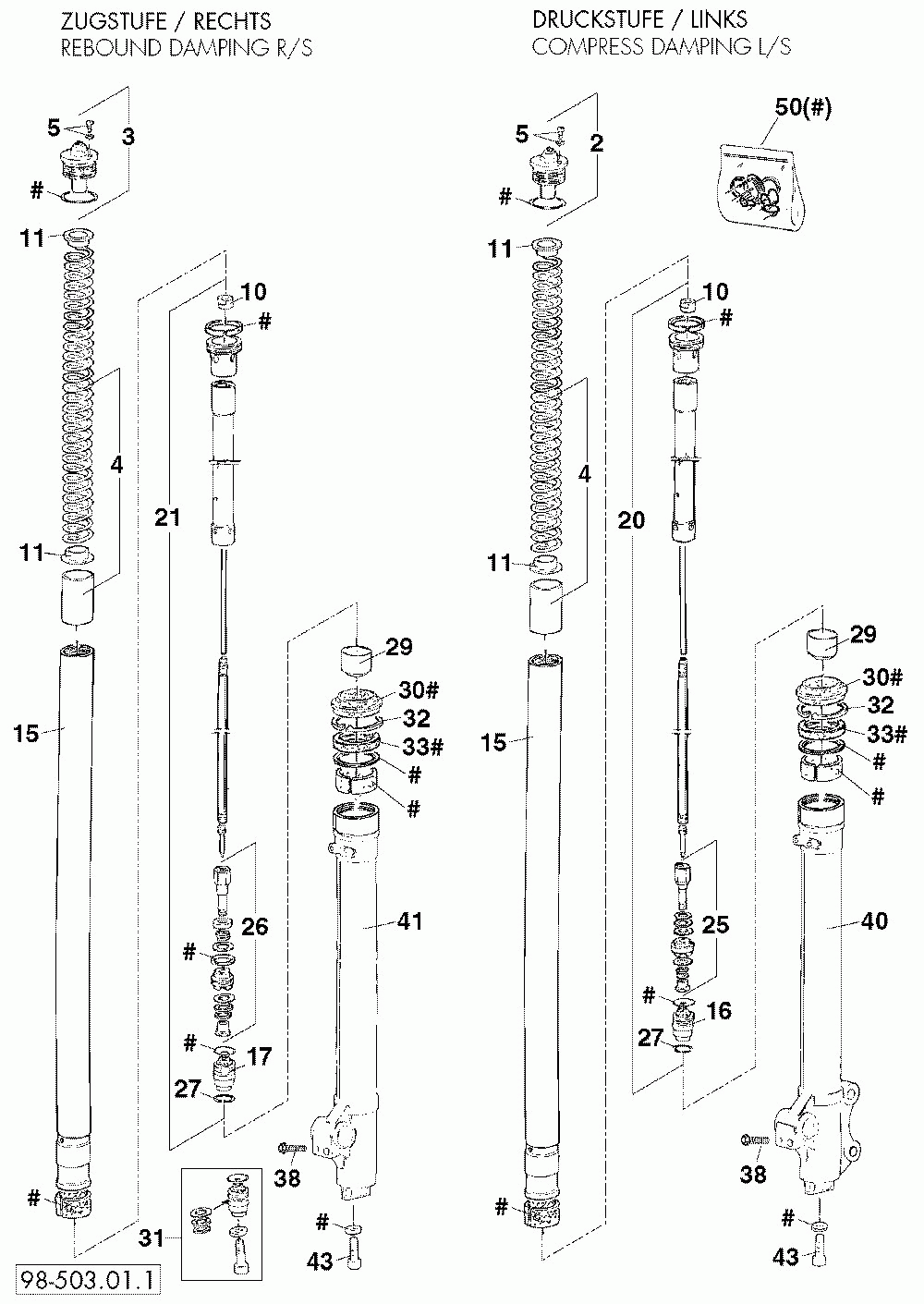

  6. Gabelbeine marzocchi 45 fork legs 125/200 98

Gabelbeine marzocchi 45 fork legs 125/200 98

KTM 125 / 200 SX, MXC, EXC, EGS CHASSIS
KTM
#oem кодцена
4
7850246
Spring Kit 4, 0 N/mm
4
7850247
Spring Kit 4, 2 N/mm
4
7850248
Spring Kit 4, 5 N/mm
4
7850249
Spring Kit 4, 8 N/mm
5
7850208AR
Lentil Head Screw M4x6
10
7521119KM
Lock Nut
11
7536071
Spring Guide Cup
15
7507437
Fork Tube D=45mm
16
7717033
Foot Valve L/s Typ 81, 82, 83, 91
17
7717034
Foot Valve R/s Type 81
17
7717035
Foot Valve R/s Type 82, 83, 91
20
7731287
Cartridge L/s Type 81 '98
20
7731288
Cartridge L/s Type 82, 83, 91
21
7731285
Cartridge R/s Type 81 '
21
7731286
Cartridge R/s Type 82, 83 '98
25
7715061
Piston Cpl. L/s Type 81
25
7715062
Piston Cpl. L/s Type 82, 83, 91
26
7715060
Piston Cpl.r/s Typ 81, 82, 83, 91
27
7523232
Стопорное кольцо
29
7532631
Hydrostop
30
7533266
Пыльник
31
7850618
Adjustment Kit Rebound R/s
32
7523239
Стопорное кольцо
33
7528197
Seal Ring 45x58x11
38
7520196
H H Collar Screw M 6x25 Ws=10
40
75031323BS
Slider Tube L/s Compress
41
75031326BS
Slide Tube R/s Rebound
43
7520256
Ah Screw Marzocchi
50
7850628
Repair Kit Sealrings+bushings
