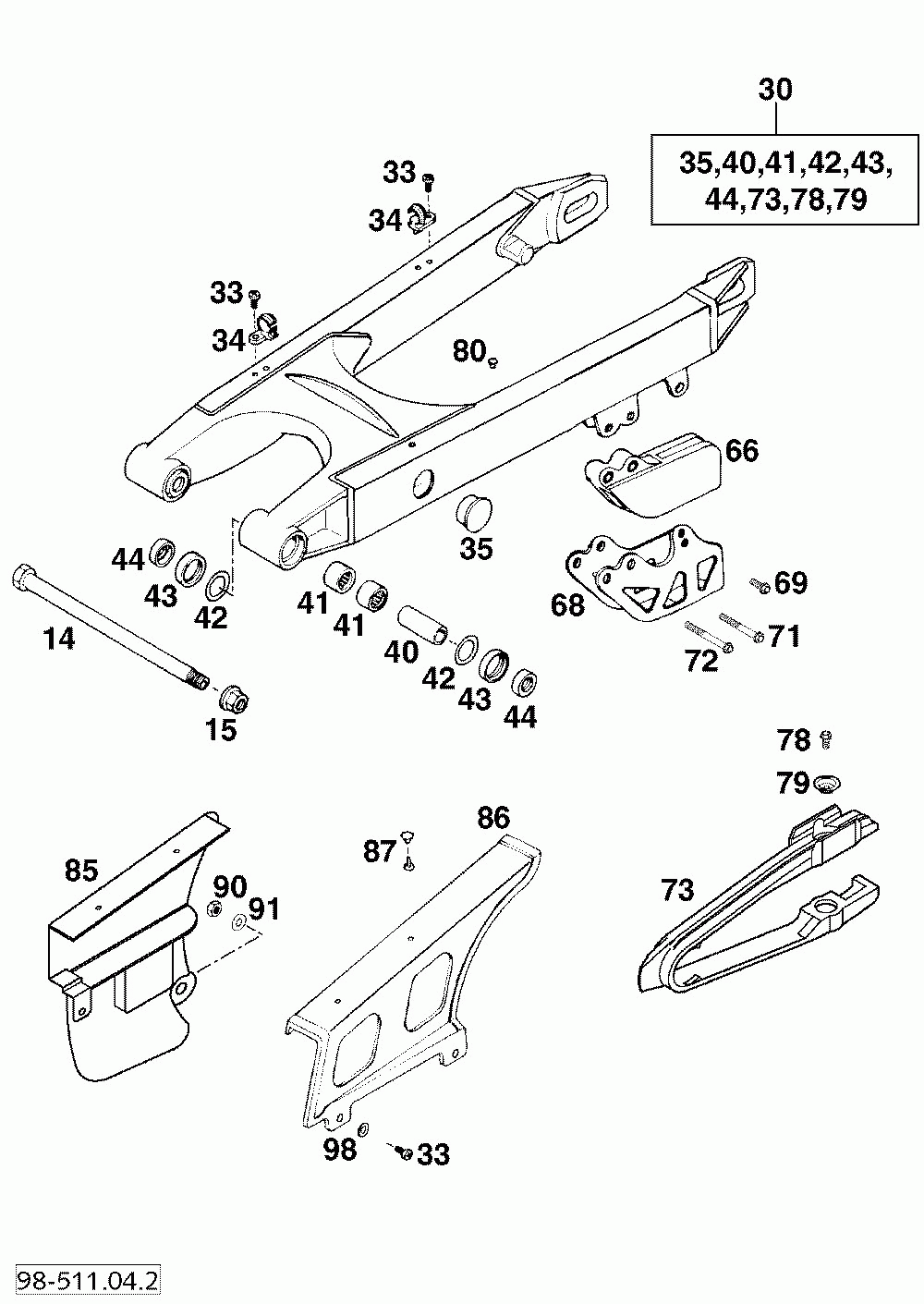

Schwingarm, kettenschutz swingarm, chain guard 125 98

KTM 125 Sting CHASSIS
KTM
#oem кодцена
14
54603014100
Swingarm Bolt Kpl. L=253
15
54603015000
Self Locking Nut M14x1, 5 Ws=19
30
51104030044
Swingarm Cpl. 250-360 '97
33
0010050103
Special Screw M 5, 0x10
34
54611076100
Retain.clamp For Brake Hose'96
35
54603135000
Plug Moss For Swingarm
40
54603081000
Bushing Sleeve 15 X 20 X 48
41
54603097000
Needle Bush Hk 2016
42
54603036000
Stop Disk 22, 2x31, 7x1
43
0760253270
Shaft Seal Ring 25x32x7
44
54603090000
Bucket F.shaftsealring 15x25x9
66
54607066100
Chain Guide Rear '94
68
54607070144
Retaining Plate Cpl.
69
0015060163
Hh Collar Screw M 6x16 Ws=8
71
0015060503
Hh Collar Screw M 6x50 Ws=8
72
0015060553
Hh Collar Screw M 6x55 Ws=8
73
50304066100
Chain Guard 05
78
0009050103
Special Screw M 5, 0x10
79
72210079000
Шайба
80
54603235000
Dummy Plug 4 Mm
85
50304060000
Chain Guard Exc '97
86
54607460000
Chain Guard Large Egs
87
20012062055
Hollow Rivet Two Parts
90
0985060003
Self Lock. Nut Din0985-m 6
91
0021060003
Washer Din9021-a 6, 4
98
0021050003
Washer Din9021-a 5, 3
