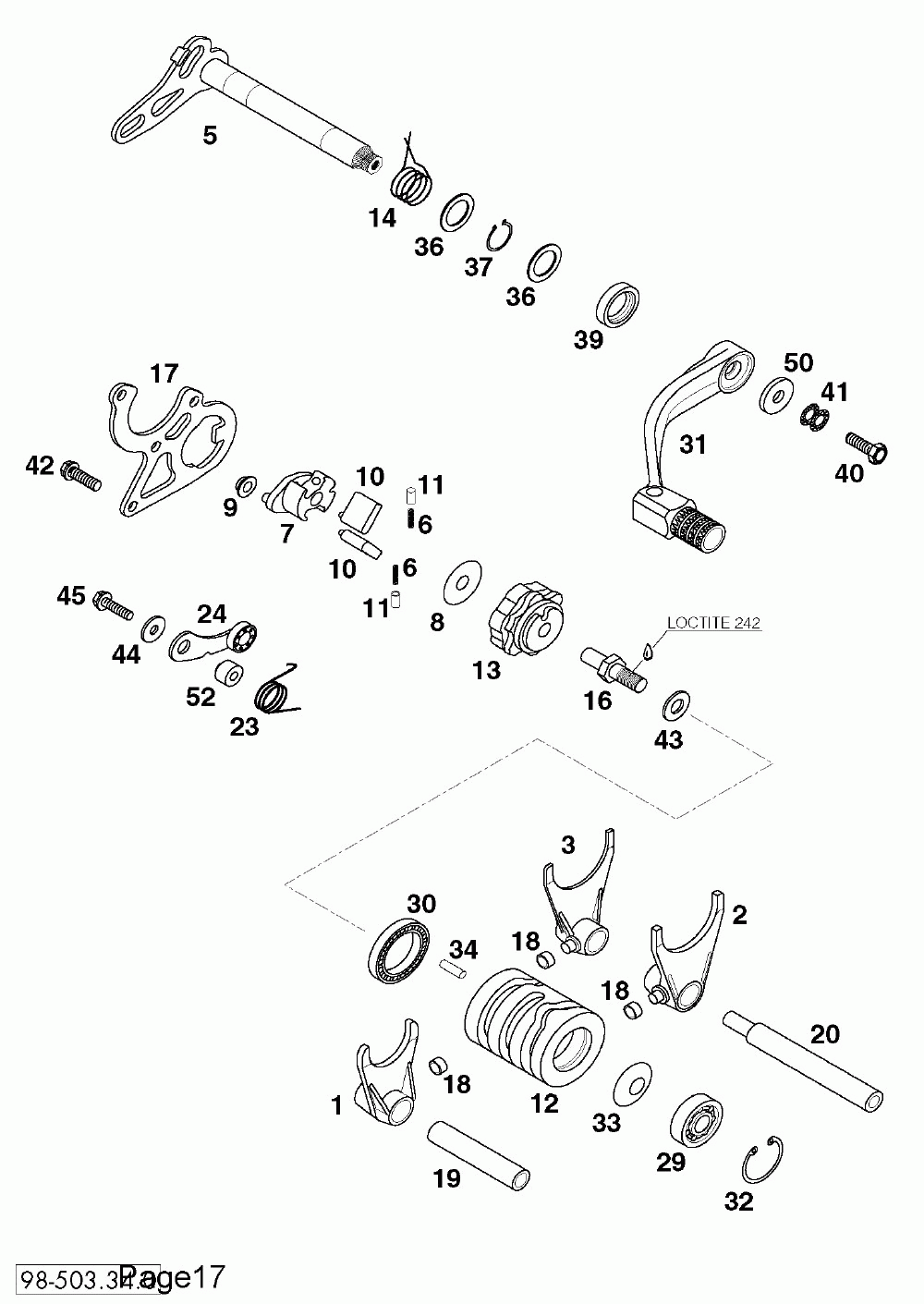

Schaltung shifting mechanism 125/200 98

KTM 125/200 ENGINE
KTM
#oem кодцена
1
50334001000
Shifting Fork 5th/6th Gear '98
2
50334002000
Shifting Fork 2nd/4th Gear '98
3
50334003000
Shifting Fork 1st/3rd Gear '98
5
50334005000
Shifting Shaft 125/200'98
6
50334007052
Spring For Ratchet 0, 5x11, 5
7
50334007000
Ratchet Support 125/200'98
8
50334007054
Stop Disk 8, 2x26x0, 7
9
50334007053
Bushing 6x8x12x4, 5
10
50334007050
Shifting Ratchet 125/200'98
11
50334007051
Pressure End Pad 4, 1x5, 6x8, 4
12
50334012100
Shifting Drum Alu 125/200'00
13
50334013000
Locating Drum 125/200'98
14
50334014000
Return Spring 3mm
16
50334016000
Special Screw M8x21, 5 Ws=12
17
50334017000
Shifting Gate 3mm 125/200'98
18
50334018100
Shifting Roller 6x8x5, 2
19
50334019000
Shifting Rod Drive 11, 8x67, 5
20
50334020000
Shift. Rod Drive End 11, 8x94, 5
23
50334023000
Locating Lever Spring 2, 5mm'98
24
50334024144
Locating Lever Cpl. 08
29
0625060006
Ball Bearing 6000 Rs1 C3
30
0625618050
Ball Bearing 61805 C3
31
54834031000
Shift Lever Cpl. 250/300 05
32
0472260120
Lock Ring Din0472-26x1, 2
33
0093251209
Spring Washer 12, 2x25x0, 9
34
0402040980
Needle Rol.din5402 Nrb 4x9, 8
36
49033031000
Stop Disk 14, 3x20x1
37
0471140100
Lock Washer Din0471-14x1
39
0760142460
Shaft Seal Ring 14x24x6 B
40
0933060203
Hh Screw Din0933-m 6x20
41
50233041000
Pair Of Washers M 6 Nordlock
42
0015060203
Hh Collar Screw M 6x20 Ws=8
43
0125080003
Washer Din0125-a 8, 4
44
0125050003
Шайба Din0125-в 5, 3
45
0015050203
Hh Collar Screw M 5x20 Ws=8
50
50232050001
Steel Washer 6, 4x17x3
52
54634052300
Sleeve For Locking Lever
