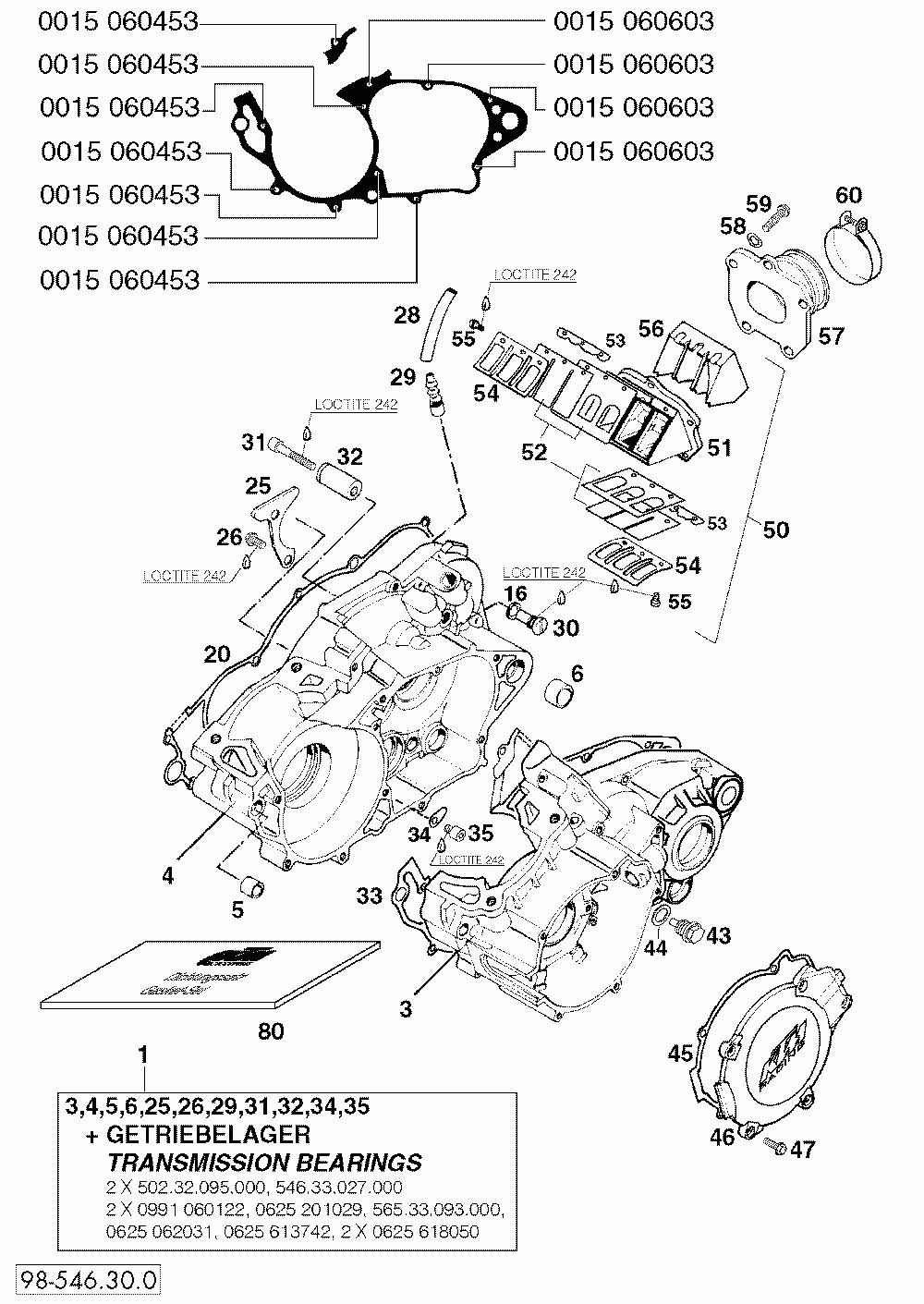

Engine case 250/300/380 98

KTM 250/300 380 ENGINE
KTM
#oem кодцена
1
54630000944
Engine Case Cpl.w.tran.bear'98
5
54630027000
Dowel Bushing 13, 8x11x12
6
50130027000
Dowel 19 X15, 1x12
16
58038032110
Cu-seal Ring 9 X 13 X1
20
54630025100
Clutch Cover Gasket 0, 5mm
25
54630017000
Retaining Plate
26
0015060123
Hh Collar Screw M 6x12 Ws=8
29
54630022000
Bleeder Flange '94
30
54530001150
Flat Head Screw With Pin
31
0912060404
Ah Screw Din0912-m 6x40 A2
32
54633018400
Bushing Pin
33
54630039200
Case Gasket 0, 5mm 250-380'98
34
54634049000
Retaining Plate
35
0912060083
Ah Screw Din0912-m 6x 8
43
58030021000
Пробка сливная с магнитом M12x1,5
44
58038022000
Кольцо 12x18x1, 5
45
54630040300
Ignition Cover Gasket '92
46
54630002300
Ignition Cover 250-380 '98
47
0015050163
Hh Collar Screw M 5x16 Ws=8
50
54630051344
Reed Valve Housing 250-360'96
51
54430051000
Reed Valve Case Loose
52
54630052600
Reed Valve Cpl. 250/300/360'96
53
54230056000
Paper Strip
54
54630053000
Stop Plate Top
55
0084040083
Cyl.head Screw Din0084-m 4x8 A
56
54630054000
Velocity Insert
57
54630050000
Intake Flange 200-380
58
0137060003
Spring Washer Din0137-b 6
59
0015060253
Hh Collar Screw M 6x25 Ws=8
60
54330061000
Clamp 52/12 Gemi
80
54630100000
Gasket Set 250-380 '90-'98
