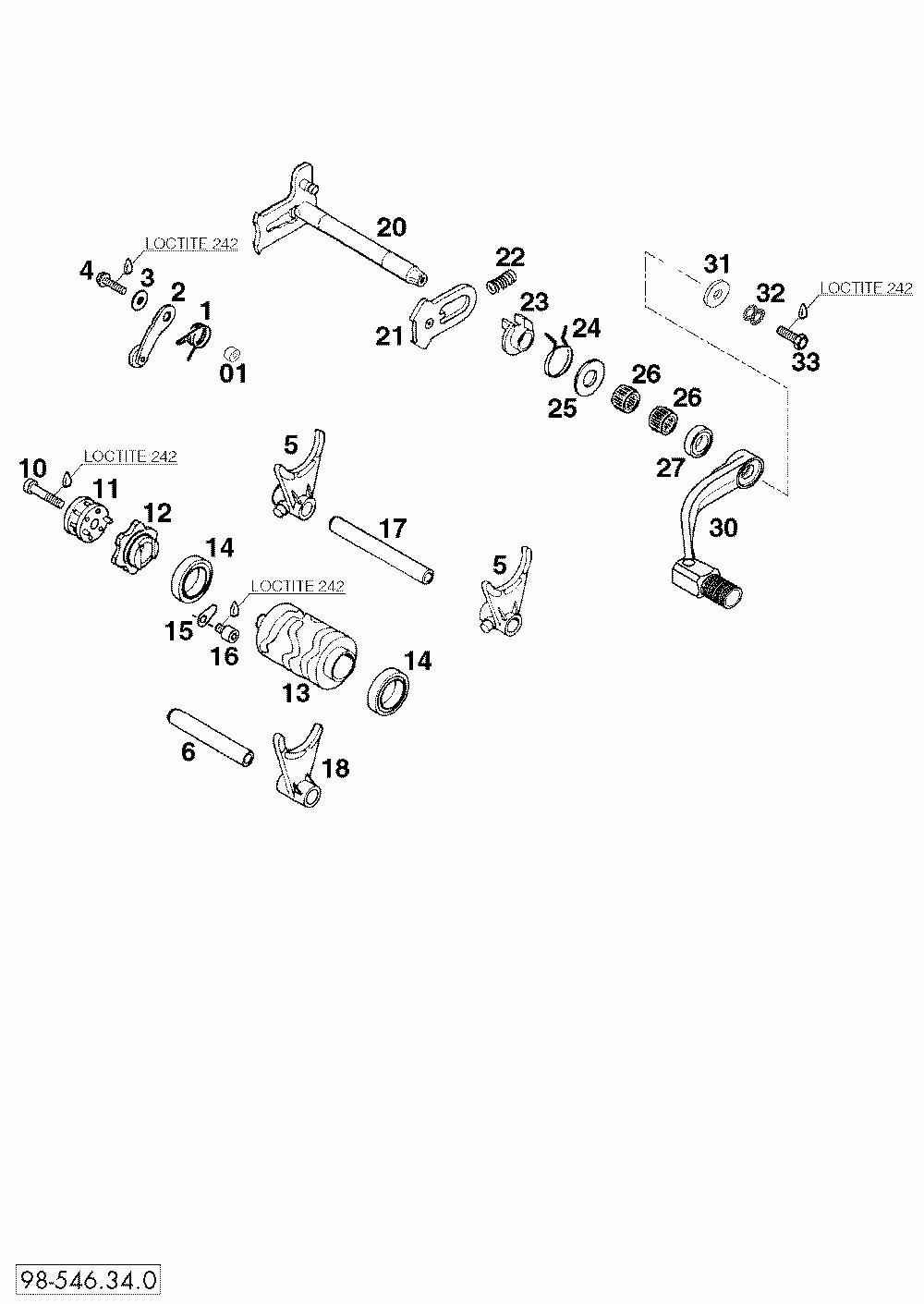

Schaltung shifting mechanism 250/300/380 98

KTM 250/300 380 ENGINE
KTM
#oem кодцена
1
54634023300
Locking Lever Spring '96
1
54634052300
Sleeve For Locking Lever
2
77034024044
Locking Lever Cpl. 08
3
0021050003
Washer Din9021-a 5, 3
4
0015050203
Hh Collar Screw M 5x20 Ws=8
5
54634002100
Shifting Fork 1st/3rd Gear+2nd
6
54634003000
Shifting Rail Crankshaft
10
0984060302
Ah Screw Din6912 M 6x30
11
59034015144
Ship Drum Locating Cpl.
13
54634012400
Shiftroller Alu 250/300/360'95
14
0625618050
Ball Bearing 61805 C3
15
54634049000
Retaining Plate
16
0912060083
Ah Screw Din0912-m 6x 8
17
54634004000
Shifting Rail Crankshaft
18
54634001100
Shifting Fork 4th/6th Gear
20
54634105044
Shift Shaft Cpl. '03
21
54634008044
Sliding Plate Cpl.
22
56534013100
Tensioning Spring 0, 8mm
23
54634020000
Spring Guide
24
54634014100
Return Spring 2, 2mm '95
25
54634050000
Stop Disk 14x30x1
26
54632095000
Needle Bear.hk 1412 14x20x12
27
0760142460
Shaft Seal Ring 14x24x6 B
30
54834031000
Shift Lever Cpl. 250/300 05
31
50232050001
Steel Washer 6, 4x17x3
32
50233041000
Pair Of Washers M 6 Nordlock
33
0933060203
Hh Screw Din0933-m 6x20
