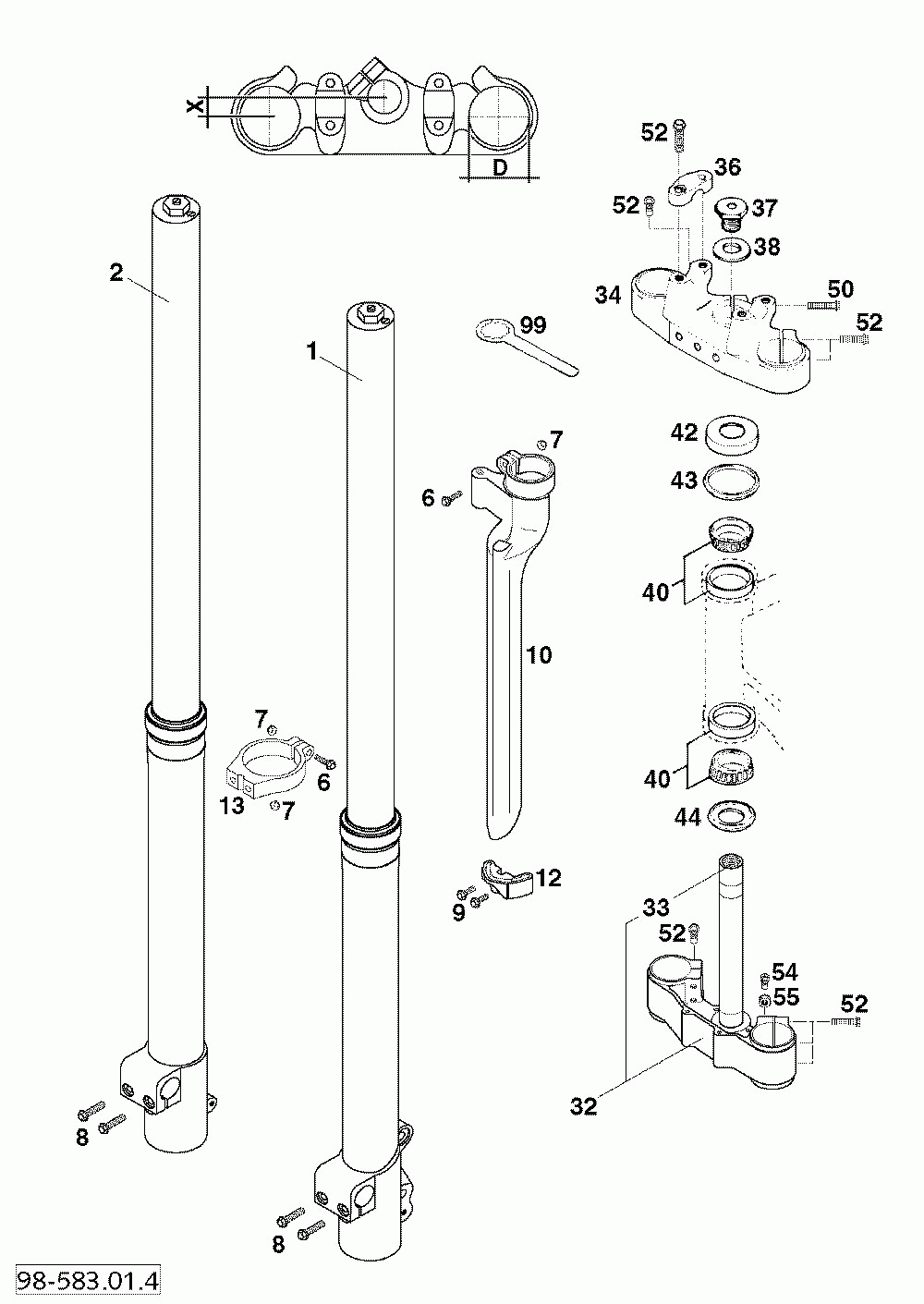

Telegabel white power front fork wp 400/540 98

KTM 400/540 SXC CHASSIS
KTM
#oem кодцена
6
0015050203
Hh Collar Screw M 5x20 Ws=8
7
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
8
0015080203
Hh Collar Screw M 8x20 Ws=10
9
0015050163
Hh Collar Screw M 5x16 Ws=8
10
50301092000
Fork Protector L/s Black '97
12
5460129000030
Fork Protection Guide L/s '97
13
50301090250
Clamp Protector Guide '98
32
50301032016
Bot.triple Clamp X=16mm/d=50mm
33
54801033200
Fork Tube L=244 Exc
34
58301034016
Top Tripleclamp X=16mm/d=50mm
36
58301038000
Handlebar Clamp Sx, Sxc, Sc '97
37
56401043000
Hh Screw M20x1, 5
38
56401044000
Washer 21x38x3
40
54201081100
Tapered Roller Bearing Cpl. 06
42
54201086000
Steering Head Cover
43
54601184000
Stearing Head Gasket Top
44
54601084200
% O-ring Support W. Sealinglip
50
0015080403
Hh Collar Screw M 8x40 Ws=10
52
0025080306
Hh Collar Screw M8x30 Tx40
54
0933080253
Hh Screw Din0933-m 8x25
55
0934080003
Hexagon Nut Din0934-m 8
99
54212035000
Ring Wrench Ws=32
44
54601084100
O-ring Support W. Sealing Lip
