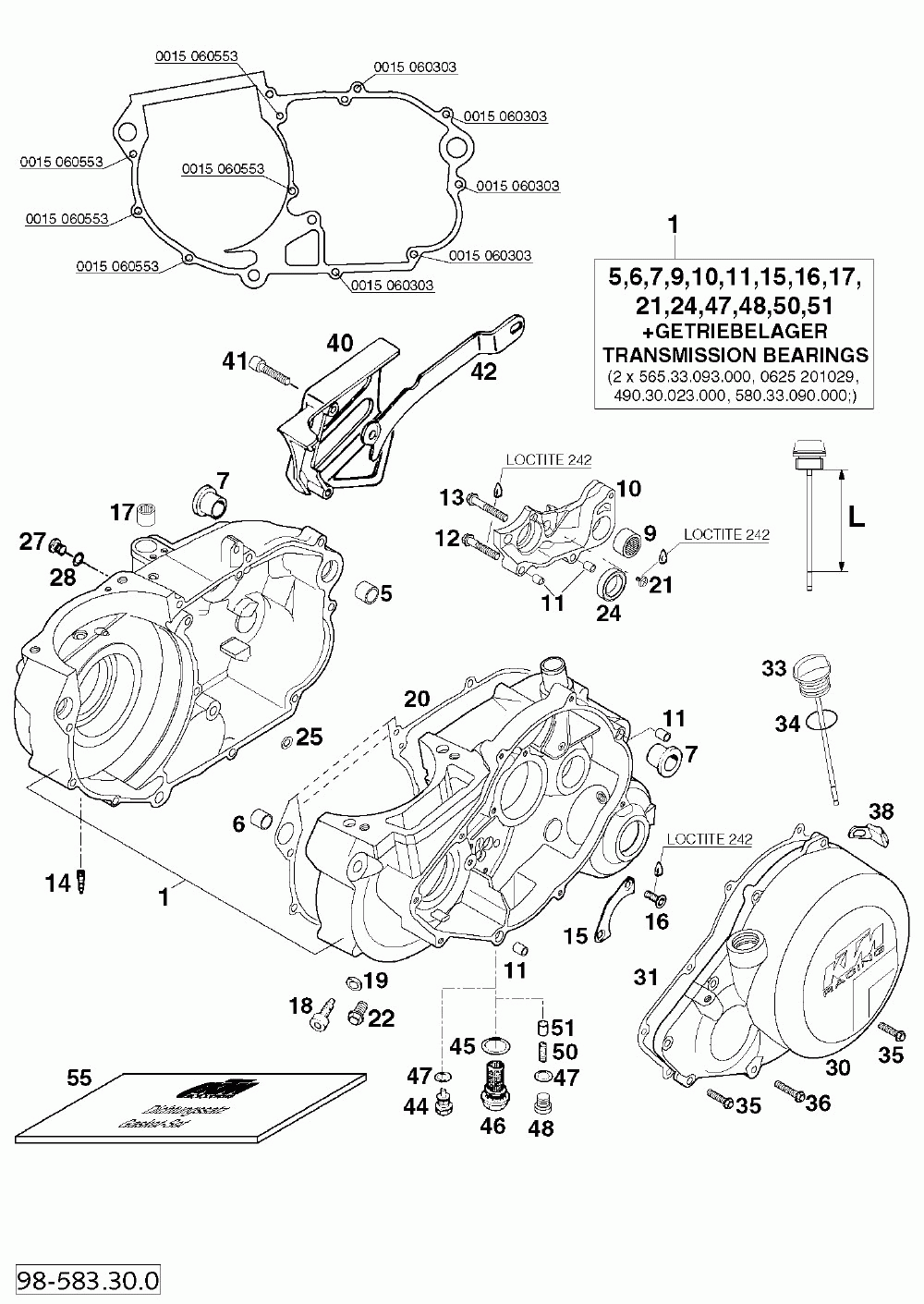

Engine case 400/540 98

KTM 400/540 SXC ENGINE

Engine case 400/540 98

#

oem код

название

цена

1

Engine Case Cpl.w.tran.bear'98

Engine Case Cpl.w.tran.bear'98

5

Dowel 19 X15, 1x12

Dowel 19 X15, 1x12

6

Dowel 17 X 13 X 12

Dowel 17 X 13 X 12

7

Crank Case Bush

Crank Case Bush

9

Needle Bearing Hk 2216

Needle Bearing Hk 2216

10

Shift Mechanism Support Lc4'94

Shift Mechanism Support Lc4'94

11

Шпонка 9, 8 Х 7 Х 10

Шпонка 9, 8 Х 7 Х 10

12

Hh Collar Screw M 6x35 Ws=8

Hh Collar Screw M 6x35 Ws=8

13

Hh Collar Screw M 6x40 Ws=8

Hh Collar Screw M 6x40 Ws=8

14

Tube Lw 3

Tube Lw 3

15

Retaining Plate

Retaining Plate

16

Flat Head Scr. Din7991-m 6x16

Flat Head Scr. Din7991-m 6x16

17

Needle Bearing Hk 1212

Needle Bearing Hk 1212

18

Locating Screw M8 L=23

Locating Screw M8 L=23

19

Seal Ring Cu Din7603- 8x12x1

Seal Ring Cu Din7603- 8x12x1

20

Engine Case Gasket Sx, Sxc '98

Engine Case Gasket Sx, Sxc '98

21

Oval Head Scr. Din7985-m 5x10

Oval Head Scr. Din7985-m 5x10

22

Hh Collar Screw M 8x10 Ws=10

Hh Collar Screw M 8x10 Ws=10

24

Ball Bearing 61805 C3

Ball Bearing 61805 C3

25

Cu-seal Ring Din7603-6x10x1

Cu-seal Ring Din7603-6x10x1

27

Oil Drain Plug M10x1, 5 Ah-ws=6

Oil Drain Plug M10x1, 5 Ah-ws=6

28

Уплотнитель шланга

Уплотнитель шланга

30

Clutch Cover Sx'97

Clutch Cover Sx'97

31

Clutch Cover Gasket Sx'97

Clutch Cover Gasket Sx'97

33

Oil Dipstick Cpl. L=93mm '96

Oil Dipstick Cpl. L=93mm '96

34

O-ring 16, 00x3, 00 Nbr 70

O-ring 16, 00x3, 00 Nbr 70

35

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

36

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

38

Bump Rubber

Bump Rubber

40

Chain Cover Black '99

Chain Cover Black '99

41

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

42

Chain Damper Sheet Lc4 '90

Chain Damper Sheet Lc4 '90

44

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

45

Cu-seal Ring Din7603-22x27x2

Cu-seal Ring Din7603-22x27x2

46

Oil Drain Plug M22x1, 5

Oil Drain Plug M22x1, 5

47

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

48

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

50

Pressure Spring L=25mm D=1mm

Pressure Spring L=25mm D=1mm

51

Valve Piston D=10mm

Valve Piston D=10mm

55

Gasket Set 400-620 Sx, Sxc '98

Gasket Set 400-620 Sx, Sxc '98

13

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30
