Zylinderkopf cylinder head 400/540 98 Оригинальные запчасти для мотоциклов KTM 400/540 SXC ENGINE (1998)

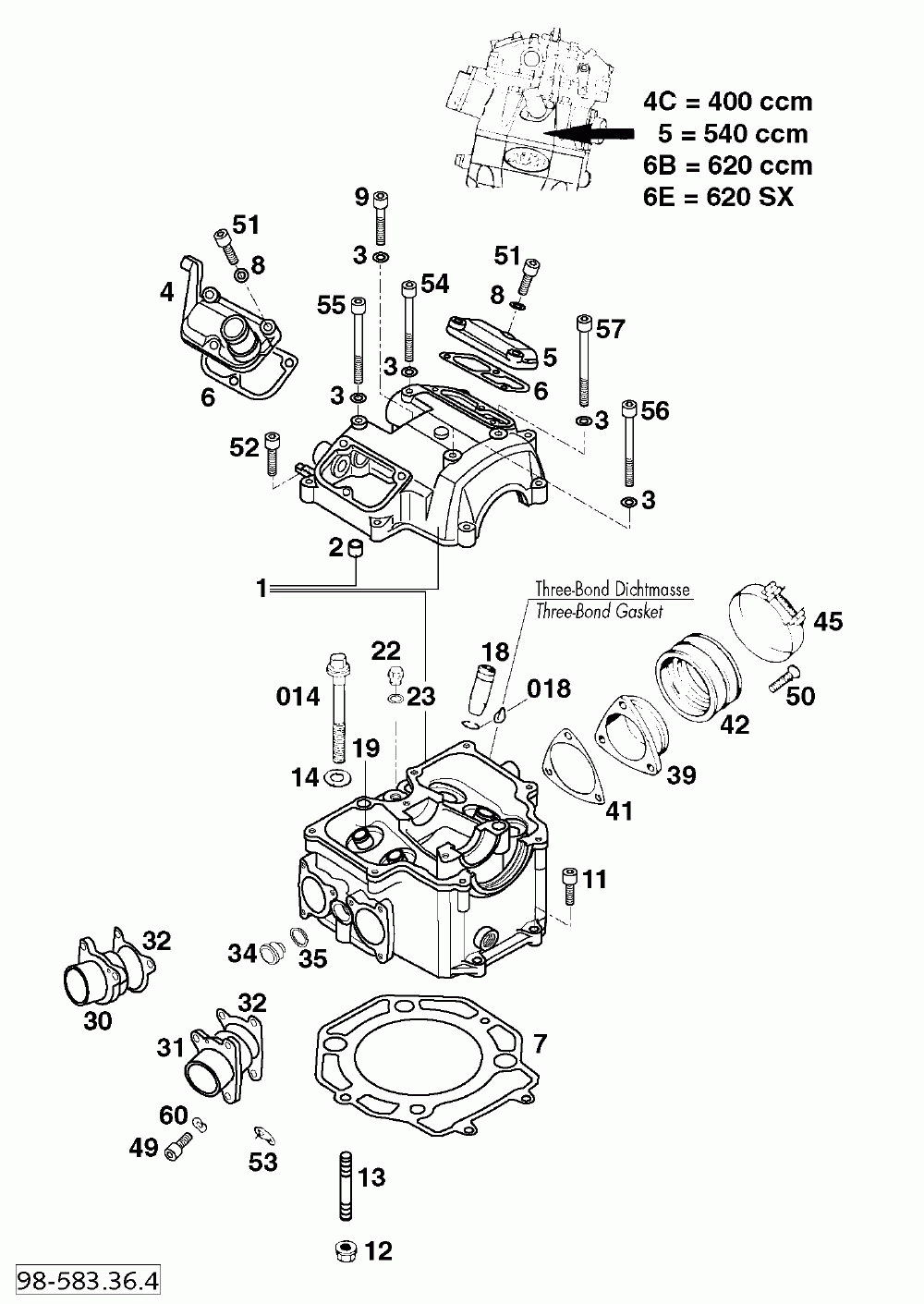

Zylinderkopf cylinder head 400/540 98

KTM 400/540 SXC ENGINE

oem код

название

цена

57636020300

Cylinder Head Cpl. 400 Lc4 '97

49030090000

Шпонка 9, 8 Х 7 Х 10

58036065100

Cu-seal Ring 6 X 10 X 2

58036152600

Valve Cover Front '99

58036052200

Valve Cover Rear

58036053000

Valve Cover Gasket

57530036000

Cylinder Head Gasket 90, 3 Mm

58030136200

Cyl.head Gasket 95, 3 Mm

0603061001

Cu-seal Ring Din7603-6x10x1

0912060353

Ah Screw Din0912-m 6x35

0912060253

Ah Screw Din0912-m 6x25

49030028000

Collar Nut M8

0835080355

Stud Din0835-m 8x35 10.9

54330043000

Stud Din0835-m 8x40

58036098000

Cu-seal Ring 10 X 20 X 1

58036099100

Collar Screw M10x80 Ws=13 10.9

0993012000

Circlip Din7993-rw12

58036026644

Valve Guide Intake Cpl.

58036126644

Valve Guide Exhaust Cpl.

Plug Din0910-m 10x1

Уплотнитель шланга

Exhaust Flange R/s

Exhaust Flange L/s

Exhaust Flange Gasket

58336024000

Plug Sas Bore

58436054000

Cu-seal Ring 12 X 16 X 2

58136042040

Intake Flange D=40mm

58136043000

Intake Flange Gasket

58136044100

Intake Boot D=38mm 400-660 Lc4

57536044100

Intake Boot D=39mm 540 Lc4 '98
