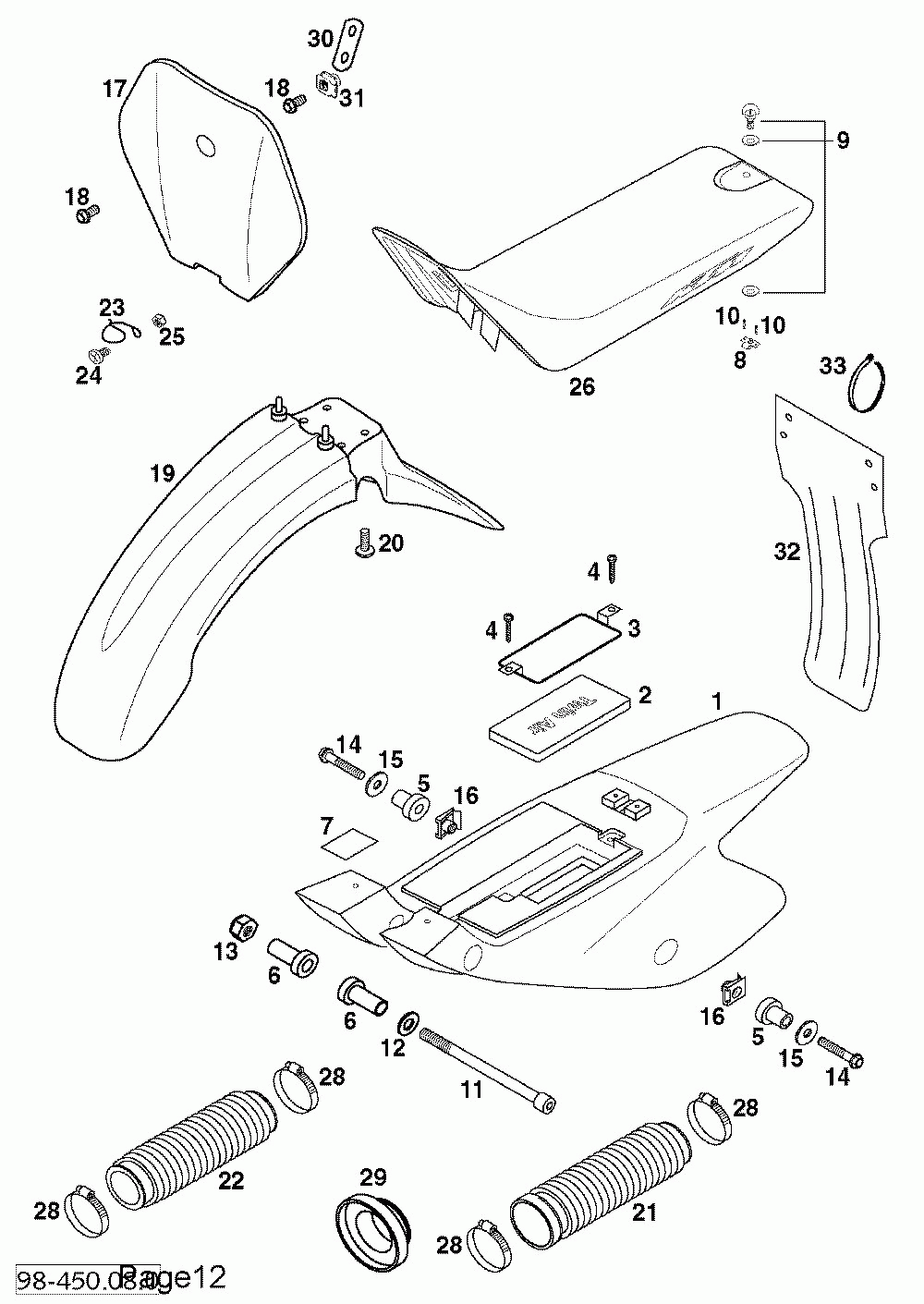

Seat, fenders 50 sxr 98

KTM 50 SXR ADVENTURE, PRO JUNIOR, PRO SENIOR CHASSIS
KTM
#oem кодцена
1
4500801310004
Fender/frame End Rear '98
2
45006015000
Airfilter 120x58x15 Mm
3
45006016000
Фильтрующая рамка
4
0016050153
Special Screw Z 5x16
5
45007013050
Collar Bush L=21 Mm
6
45007013051
Collar Bush L=38, 5 Mm
7
54601097000
Rubber Strip 85x25x3 Mm
8
45007040050
Quick Release Latchplate
9
45007040051
Quick Release Cpl. 50 Sxr '97
10
0981350163
Sheet Met.scr.din7981- 3, 5x16
11
0912081203
Ah Screw Din0912-m 8x120
12
0125080003
Washer Din0125-a 8, 4
13
0934080003
Hexagon Nut Din0934-m 8
14
0015060353
Hh Collar Screw M 6x35 Ws=8
15
0021060003
Washer Din9021-a 6, 4
16
54603048100
Range Change Metal Nut M6
17
4500800700004
Number Plate 50 Sxr '98
18
0015060123
Hh Collar Screw M 6x12 Ws=8
19
4500801000004
Fender Front 50 Sxr '98
20
0024060106
Hh Collar Screw M6x10 Tx30
21
45006026000
Airfilt.boot-dell Orto 40/35mm
22
45006026100
Airfilter Boot-mikuni 32/35 Mm
23
58011008000
Guide For Brake Hose
24
0985050103
Oval Head Scr. Din7985-m 5x10
25
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
26
45007040200
Seat Black 50 Mini 2000
28
54305058000
Hose Clamp 30-45 Sgt
29
49106826000
Reduction Ring Pvc 59/40 Mm
30
45008007050
Retaining Plate
31
50235033300
Snap-nut Holder M6 Kp142
32
45006010000
Splash Protector 50 Sxr
33
44011076305
Cable Tie 300/4, 8mm Black
