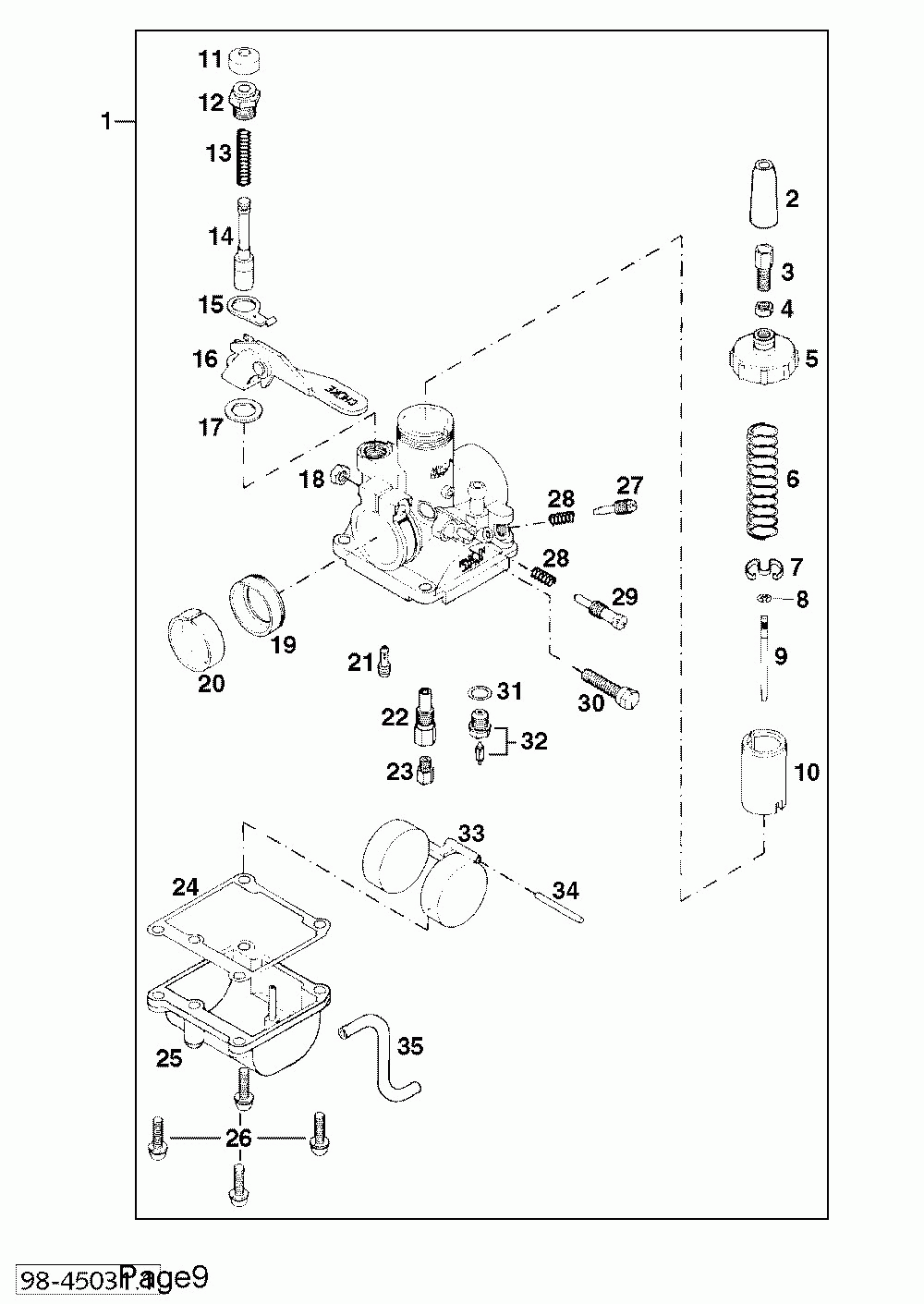

Vergaser mikuni 18 carburetor 50 sxr pro junior 98

KTM 50 SXR PRO JUNIOR/ADVENTURE/PRO SENIOR ENGINE
KTM
#oem кодцена
1
45031001044
Carburetor Mikuni Se Vm 18-144
2
45031038000
Rubber Cap
3
45031025000
Adjusting Screw M6x0, 75
4
45031026000
Hh-nut M6x0, 75
5
45031027000
Крышка
6
45031030000
Пружина
7
45031009000
Retaining Spring
8
45031045000
Пружина
9
45031034000
Jet Needle J8-4f18
10
45031035000
Throttle Valve
11
45031041000
Опора
12
45031047000
Фитинг
13
45031049000
Пружина
14
45031048000
Starter Plunger
15
45031052000
Spring Plate
16
45031050000
Starting Lever
17
45031070000
Шайба
18
0934050003
Hexagon Nut Din0934-m 5
19
45031039000
Rubber Plug
20
45031239000
Reduction Ring
21
45031007000
Idling Jet
22
45031021045
Needle Jet 45
23
45031023060
Main Jet 60 Mikuni
23
45031023065
Main Jet 65 Mikuni
23
45031023070
Main Jet 70 Mikuni
24
45031010000
Gasket Float Chamber Vm18
25
45031011000
Float Bowl
26
45031014000
Lentil Head Screw M4x14 (set)
27
45031017000
Air Reg. Screw
28
45031015000
Пружина
29
45031019000
Idle Adj. Screw Vm16/18
30
45031046000
Screw M5x27
31
45031018000
Уплотнительное Кольцо
32
45031020000
Needle Valve
33
45031006000
Поплавок
34
45031008000
Pin 2, 5x27
