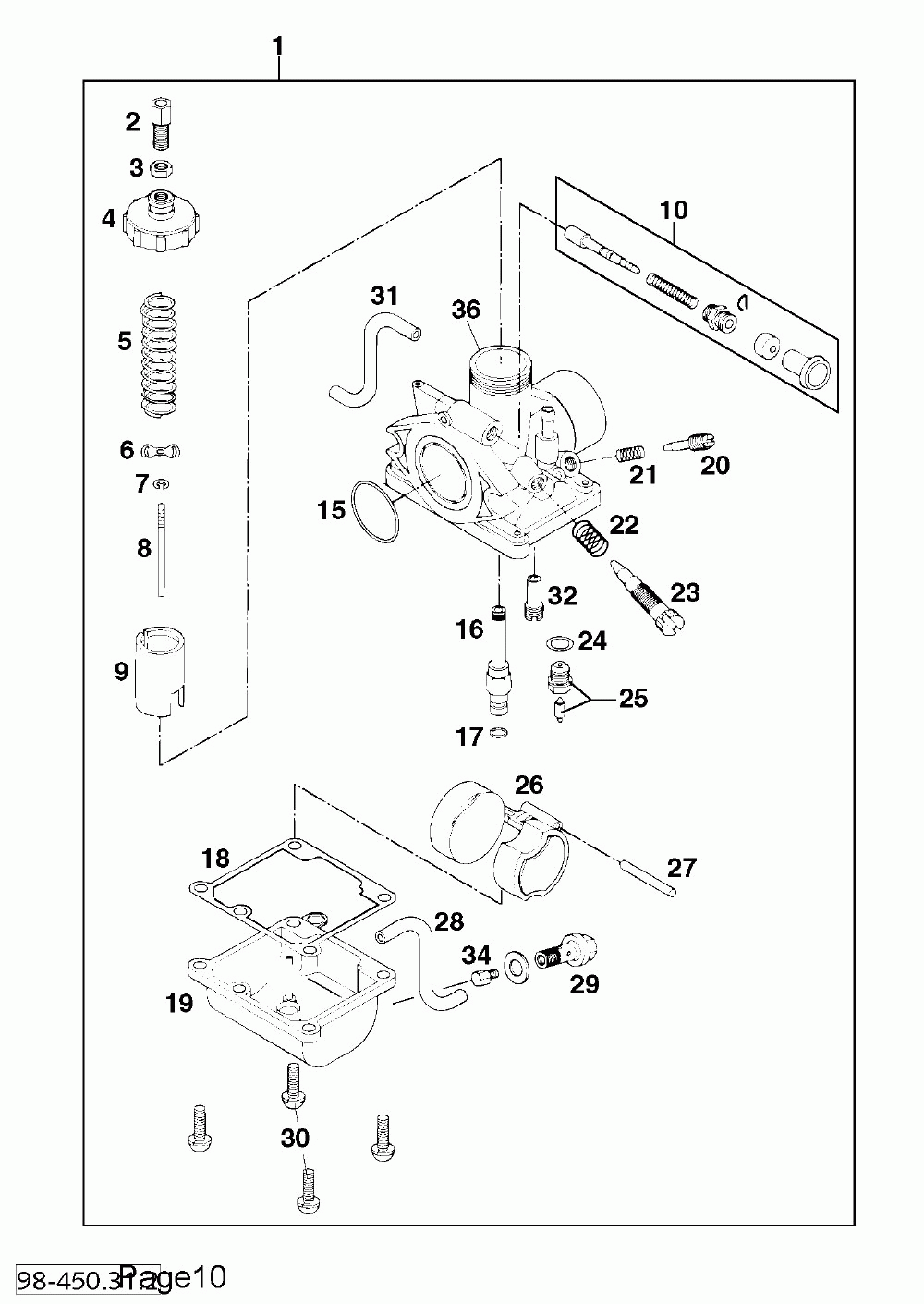

Vergaser mikuni 20 carburetor 50 sxr pro senior 98

KTM 50 SXR PRO JUNIOR/ADVENTURE/PRO SENIOR ENGINE
KTM
#oem кодцена
1
45031023170
Main Jet 170 Mikuni
1
45031001344
Carburetor Mikuni Vm20-364 '99
2
57031525000
Adjustment Screw M6x0, 75
3
52031126000
Hexagon Nut M 6x0, 75 Din0439
4
45031027100
Carburetor Cover Vm20-352
5
45031030100
Throttle Valve Spring Vm20-352
6
45031009100
Retaining Spring Vm20-352 Mik.
7
45031045000
Пружина
8
45031034100
Jet Needle 4j13 Mikuni
9
45031035100
Throttle Valve 23mm Mik. No.2
10
45031048144
Starter Knob Cpl. Vm20
15
45031039100
O-ring 24x2, 5 Mikuni
16
45031021100
Needle Jet 0-6 Vm20-352 Mikuni
17
45031044000
O-ring 3x2 Mikuni
18
45031010100
Gasket Float Bowl
19
45031011100
Float Bowl Vm20-352
20
45031017000
Air Reg. Screw
21
45031015000
Пружина
22
45031015100
Spring Mikuni
23
45031019100
Idle Adj. Screw Vm20
24
45031018000
Уплотнительное Кольцо
25
45031020000
Needle Valve
26
45031006100
Float Vm20-352 Mikuni
27
45031008000
Pin 2, 5x27
29
45031014100
Main Jet Holder M10x1
30
45031014000
Lentil Head Screw M4x14 (set)
32
45031007100
Idling Jet Vm20-352 Mikuni
34
45031023160
Main Jet 160 Mikuni
34
45031023165
Main Jet 165 Mikuni
34
45031023175
Main Jet 175 Mikuni
34
45031023180
Main Jet 180 Mikuni
