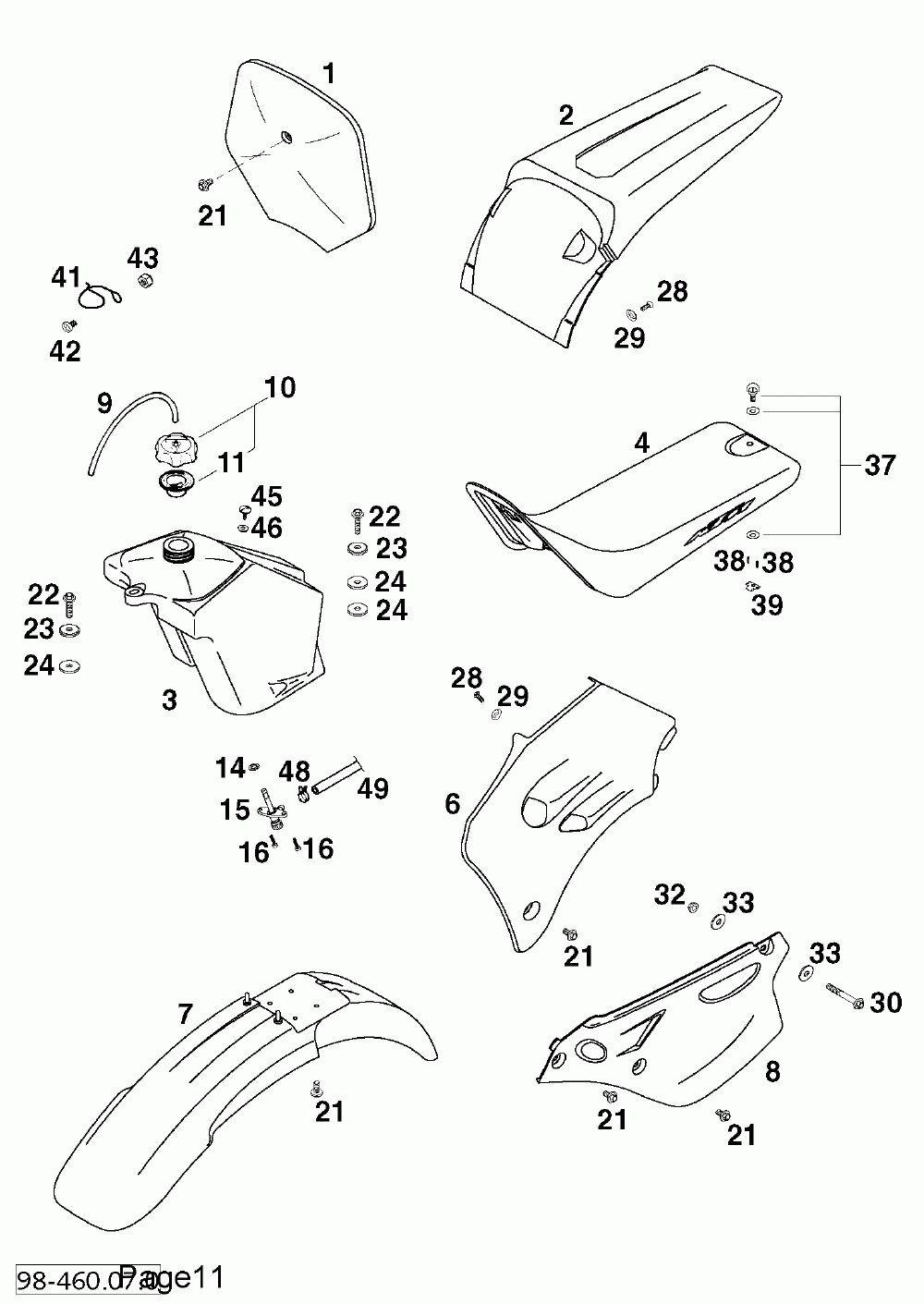

Tank, verkleidung tank, cover 60/65 98

KTM 60/65 SX CHASSIS
KTM
#oem кодцена
1
46008007000
Start Number Plate 60/65 Sx'98
2
46008013000
Fender Rear Silver 60/65
3
46007013000
Fuel Tank Cpl. Black 60/65
4
46007040000
Seat Black/white 60/65
6
46008050000
Spoiler Orange L/s 60/65 '98
7
46008010000
Fender Front Orange 60/65
8
46008041000
Side Cover L/s Silver 60/65
10
49007008044
Filler Cap Cpl. Small
11
59007009000
Gasket For Filler Cap High
14
0770020130
O-ring 1, 78x10, 82x14, 38 2-013
15
58507003000
Fuel Cock Cpl. Small Rallye'96
16
0016050153
Special Screw Z 5x16
21
0024060106
Hh Collar Screw M6x10 Tx30
22
0014060253
Hh Collar Screw M 6x25 Ws=8
23
54605069000
Bushing 7, 5x12x28x7, 8 '96
24
51005067100
Insolate Washer 12x28x3
28
0017050181
Screw For Plastic D=5x18
29
40006006000
Шайба 6мм
30
0015060453
Hh Collar Screw M 6x45 Ws=8
32
56509064100
Self Locking Nut M6 10.9
33
0021060003
Washer Din9021-a 6, 4
37
45007040051
Quick Release Cpl. 50 Sxr '97
39
45007040050
Quick Release Latchplate
38
0011321000
Dummy Rivet 3, 2x10 Alu
41
58011008000
Guide For Brake Hose
42
0985050103
Oval Head Scr. Din7985-m 5x10
43
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
45
58007044000
Oval Head Screw M6x15
46
0125060003
Washer Din0125-a 6, 4
48
58031005000
Хомут 12мм
