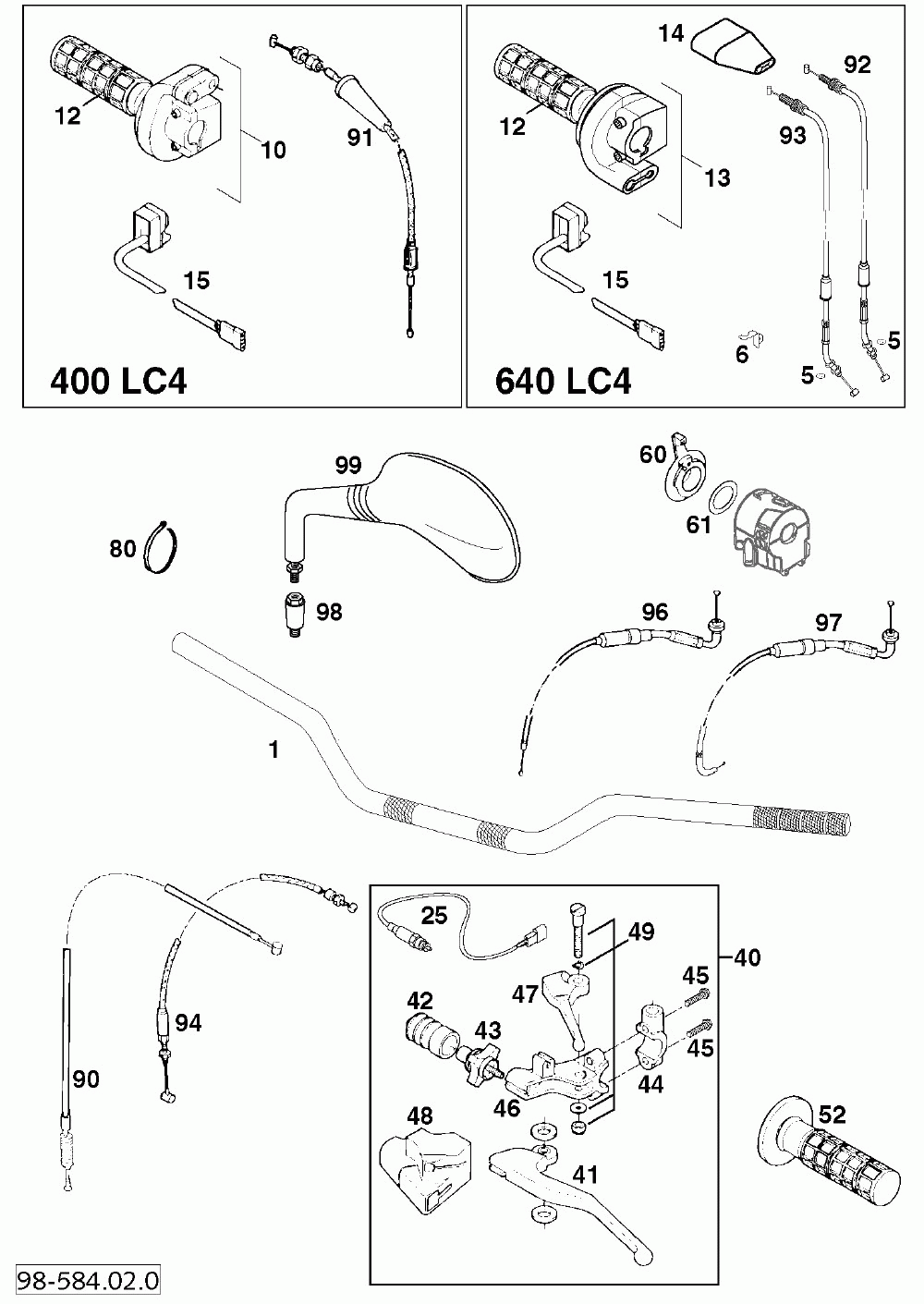

Lenker, armaturen lc4 handlebar, controls lc4 400/640 98

KTM 620 LC4 COMPETITION CHASSIS
KTM
#oem кодцена
1
58302001400
Alu-handlebar Silver "4t" '97
5
0799040000
Tab Washer Din6799-rs 4, 0
6
58402093000
Bracket For Thrott.cable Lc4
10
58302010000
Throttle Grip Cpl.domino '93
12
58302021000
Gripp Set Full Waffle
13
58402010400
Thrott.grip Cpl. Domino-mikuni
14
58302016200
Protect.cover Rxc/duke Usa '95
15
58411074000
Start-stop Switch
25
58411049000
Clutch Switch '96
40
58402040100
Clutch Lever Cpl. Domino '97
41
58402042000
Clutch Lever Loose Silver '97
42
58302126000
Clutch Lever Boot '95
43
58302043000
Adjustment Screw Cpl.m7
44
58302044000
Clamp Mirrow M10x1, 25
45
0015060253
Hh Collar Screw M 6x25 Ws=8
46
58402041000
Joint (pivot) Domino '96
47
58302047000
Decompression Lever Loose
48
58302048000
Protecting Cover
49
58302049000
Винт
60
58302050100
Choke Lever Domino '94
61
0988253505
Thrust Wash. Din0988-25x35x0, 5
80
44011076200
Стяжка пластиковая 6мм
80
44011076100
% Cable Tie 100/2, 5mm Black
90
58402090000
Clutch Cable 4t L=1115mm '99
91
58202091000
Throttle Cable Dom./dello.adv.
92
58402092000
Thrott.cable"close"dom.-mikuni
93
58402192000
Thrott.cable"open"dom.-mikuni
94
58302094000
Decompression Cable Lc4 '93
96
58302095100
Choke Cable Lc4 '94
97
58402095000
Choke Cable For Mikuni Lc4 '98
98
58412040050
Поддержка зеркала
99
58412040000
Mirror L/s 98
