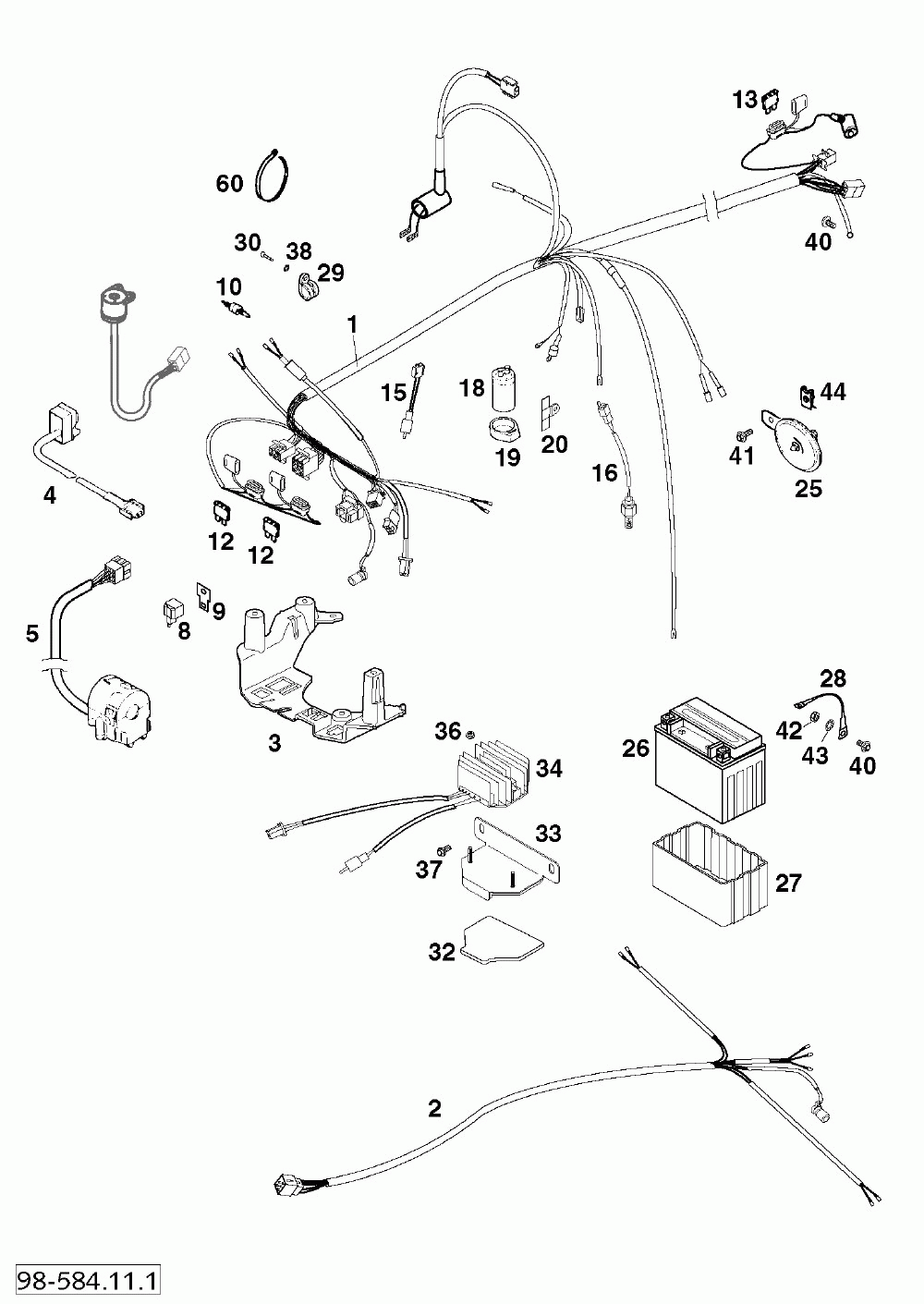

Kabelstrang competition wiring harness comp. 620 98

KTM 620 LC4 COMPETITION CHASSIS
KTM
#oem кодцена
2
58411176100
Wiring Harness Rear Lc4 '98
3
58411083100
Bracket For Plugs Lc4 '98
4
58311071100
Short Circuit Switch 550mm '94
5
58411070000
Head Light Switch Cev Lc4 '98
8
44611207200
Flasher Unit 97
9
58211031100
Bracket For Flasher Relay
10
51011050000
Front Brake Light Switch
12
58011109110
Fuse 10 A 2000
13
58011109120
Fuse 20 A
16
50311051100
Brake Light Switch Rear '98
18
49111435100
Condensator 25v, 10.000 Mf
19
54511048000
Capacitor Bracket
20
54611448000
Bracket For Capacitor
25
50311060000
Dc Horn 12v K80/l Leb
26
58411053000
Battery 12v 8ah '96
27
58411053050
Battery Cover 96
28
58411097100
Ground Cable D=6mm L=140mm '97
29
49007439000
Clamp Rsgu 15/12
32
58411055150
Metamoll For Battery Bracket
33
58411055100
Battery Bracket Lc4-e/duke'97
34
58411034100
Volt.regulator-rectifier 12v
36
56509064100
Self Locking Nut M6 10.9
37
0015060103
Hh Collar Screw M 6x10 Ws=8
38
0797050003
Tooth Lock Wash. Din6797-j 5, 3
40
0024060106
Hh Collar Screw M6x10 Tx30
41
0014060153
Hh Collar Screw M 6x15 Ws=8
42
0985060003
Self Lock. Nut Din0985-m 6
43
58411098100
Contact Washer M6 Vsv-k6
44
54603048100
Range Change Metal Nut M6
60
44011076305
Cable Tie 300/4, 8mm Black
