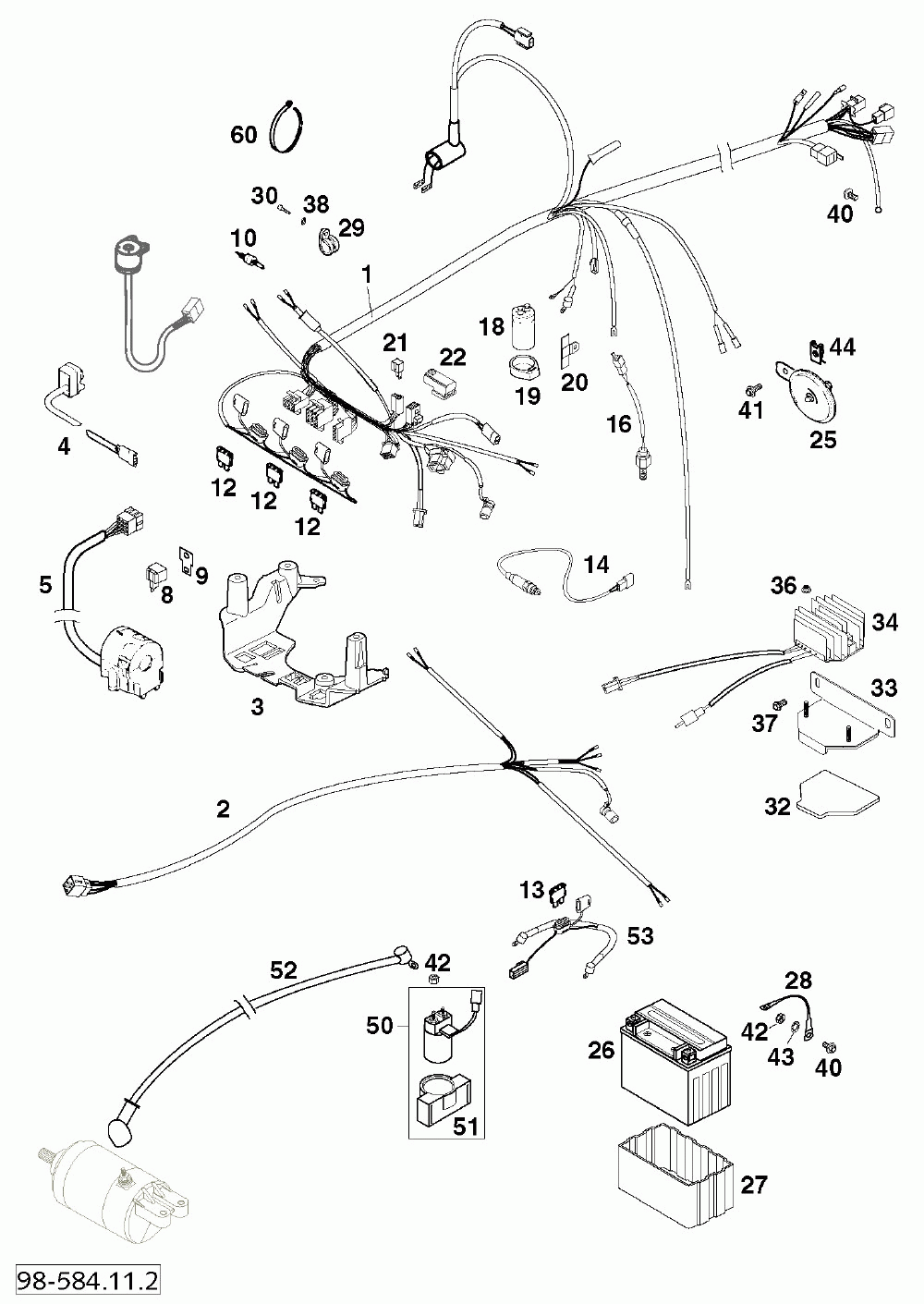

Kabelstrang lc4 wiring harness lc4 400 98

KTM 620 LC4 COMPETITION CHASSIS
KTM
#oem кодцена
1
58411175200
Wiring Harness 400 Lc4 '98
2
58411176100
Wiring Harness Rear Lc4 '98
3
58411083100
Bracket For Plugs Lc4 '98
4
58411074000
Start-stop Switch
5
58411070000
Head Light Switch Cev Lc4 '98
8
44611207200
Flasher Unit 97
9
58211031100
Bracket For Flasher Relay
10
51011050000
Front Brake Light Switch
12
58011109110
Fuse 10 A 2000
13
58011109120
Fuse 20 A
14
58411049000
Clutch Switch '96
16
50311051100
Brake Light Switch Rear '98
18
49111435100
Condensator 25v, 10.000 Mf
19
54511048000
Capacitor Bracket
20
54611448000
Bracket For Capacitor
21
58411096100
Diode S3h-15 97
22
58411057000
Starter Relay '96
25
50311060000
Dc Horn 12v K80/l Leb
26
58411053000
Battery 12v 8ah '96
27
58411053050
Battery Cover 96
28
58411097100
Ground Cable D=6mm L=140mm '97
29
49007439000
Clamp Rsgu 15/12
32
58411055150
Metamoll For Battery Bracket
33
58411055100
Battery Bracket Lc4-e/duke'97
34
58411034100
Volt.regulator-rectifier 12v
36
56509064100
Self Locking Nut M6 10.9
37
0015060103
Hh Collar Screw M 6x10 Ws=8
38
0797050003
Tooth Lock Wash. Din6797-j 5, 3
40
0024060106
Hh Collar Screw M6x10 Tx30
41
0014060153
Hh Collar Screw M 6x15 Ws=8
42
0985060003
Self Lock. Nut Din0985-m 6
43
58411098100
Contact Washer M6 Vsv-k6
44
54603048100
Range Change Metal Nut M6
50
58411058000
Starter Relay With Hold.rubber
51
58411058050
Hold. Rubber For Startrelay
52
58411059100
Startercable 700 Mm '97
53
58411059250
Battery Cable 190mm 20a '98
