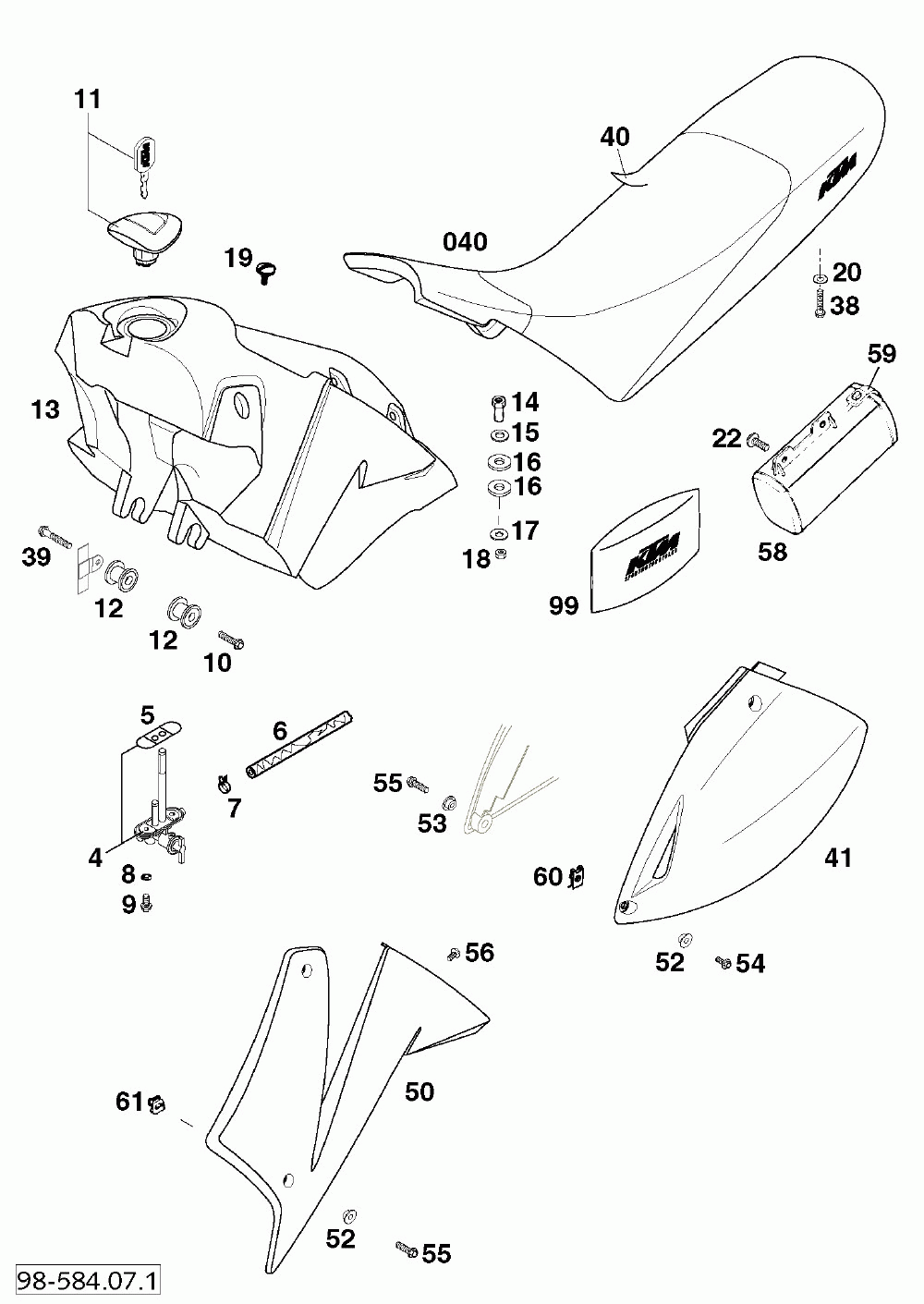

Tank,sitzbank,verkleidung tank,seat,cover 400/620/640 98

KTM 620 LC4 COMPETITION CHASSIS
KTM
#oem кодцена
4
51107004000
Fuel Cock Cpl.mikuni Ck-69 '96
5
58307106100
Gasket Fuel Cock Mikuni
7
58031005000
Хомут 12мм
8
0603061001
Cu-seal Ring Din7603-6x10x1
9
0015060123
Hh Collar Screw M 6x12 Ws=8
10
0015060253
Hh Collar Screw M 6x25 Ws=8
12
58307113250
Tank Bushing Cpl. 12 X 34 X 25
13
58407013300
Fuel Tank 11li.cpl.lc4 Black
14
58307014000
Special Nut M8
15
58307019000
Washer 10, 5 X 25 X 1, 5
16
51005067100
Insolate Washer 12x28x3
17
0021080003
Washer Din9021-a 8, 4
18
0934080003
Hexagon Nut Din0934-m 8
19
58007044000
Oval Head Screw M6x15
20
0125060003
Washer Din0125-a 6, 4
22
0014060153
Hh Collar Screw M 6x15 Ws=8
38
0015060353
Hh Collar Screw M 6x35 Ws=8
39
0015060303
Hh Collar Screw M 6x30 Sw=8
40
58407040200
Seat Standard Orange Lc4 '98
55
0015060203
Hh Collar Screw M 6x20 Ws=8
56
0024060106
Hh Collar Screw M6x10 Tx30
58
58012058000
Tool Box Cpl. '92
59
58012058050
Rubber For Tool Box '92
60
54603048100
Range Change Metal Nut M6
61
50235033300
Snap-nut Holder M6 Kp142
99
58329099000
Original Equipment Tool Kit
