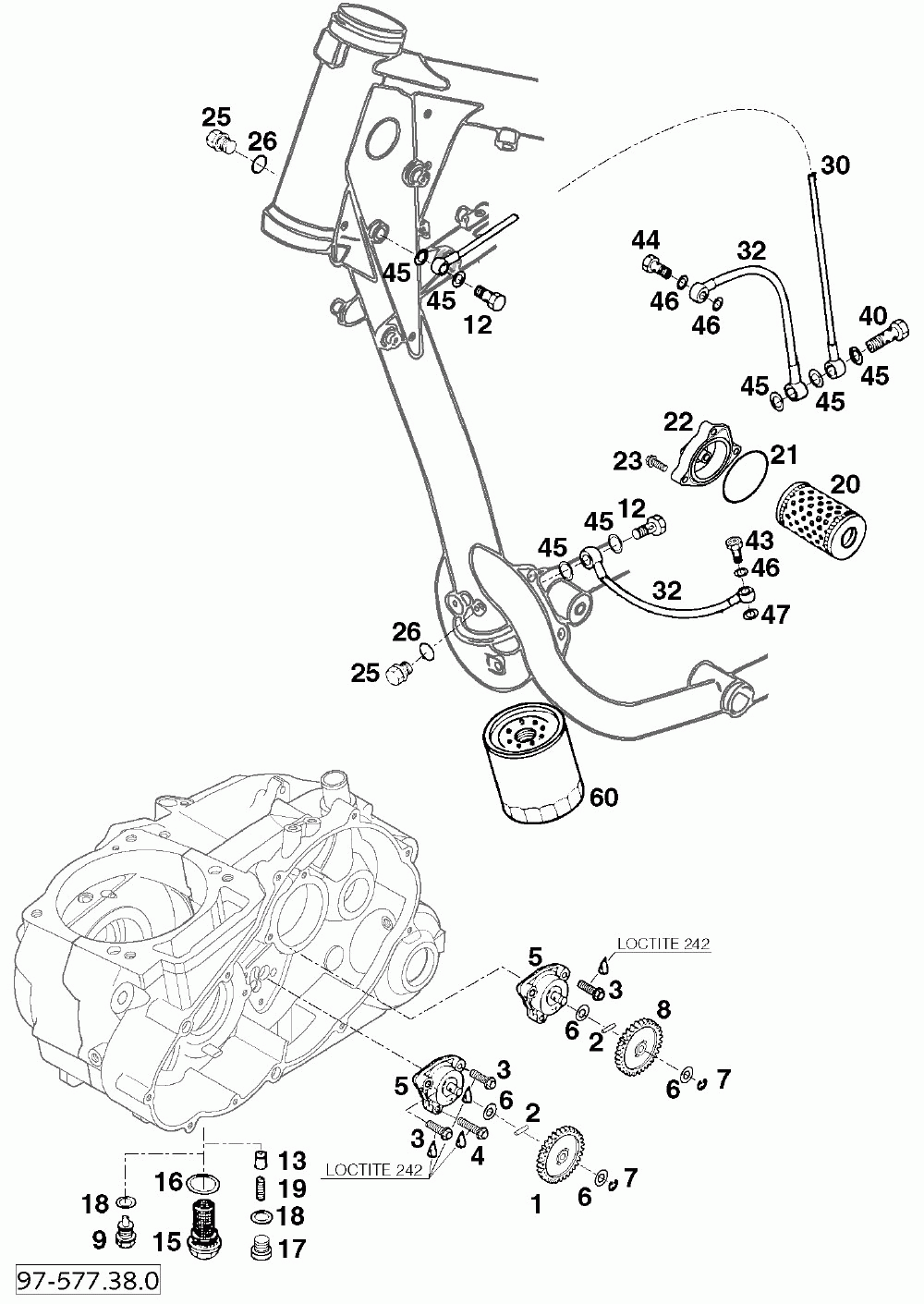

Schmiersystem lubricating system 620 98

KTM 620 LC4 COMPETITION ENGINE

oem код

название

цена

58038001100

Oil Pump Gear 31-t

0402251980

Needlerol.din5402 Nra 2, 5x19, 8

0015060203

Hh Collar Screw M 6x20 Ws=8

0015060253

Hh Collar Screw M 6x25 Ws=8

58038007700

Oil Pump Mikuni G-73-10

58038007755

Stop Disk 8, 1 X 15 X 0, 5

0799060000

Tab Washer Din6799-rs 6, 0

58438001000

Oil Pump Gear 26-t

58030021000

Пробка сливная с магнитом M12x1,5

54313025000

Hollow Screw M10 X 1

58038028000

Valve Piston D=10mm

58038019100

Oil Drain Plug M22x1, 5

58038017100

Cu-seal Ring Din7603-22x27x2

0908120153

Plug Din0908-m12x1, 5

58038022000

Кольцо 12x18x1, 5

58038023300

Pressure Spring L=25mm D=1mm

58038005100

Oil Filter Long

0770055020

0-ring 55, 00x2, 00 Nbr70

58030008700

Oil Filter Cover 2001

0910100003

Plug Din0910-m 10x1

58038022900

Cu-seal Ring 10 X 14 X 1, 5

58038234700

Oil Line Filter-frame Tube

58338034000

Oil Line Clutch Cover-frame
