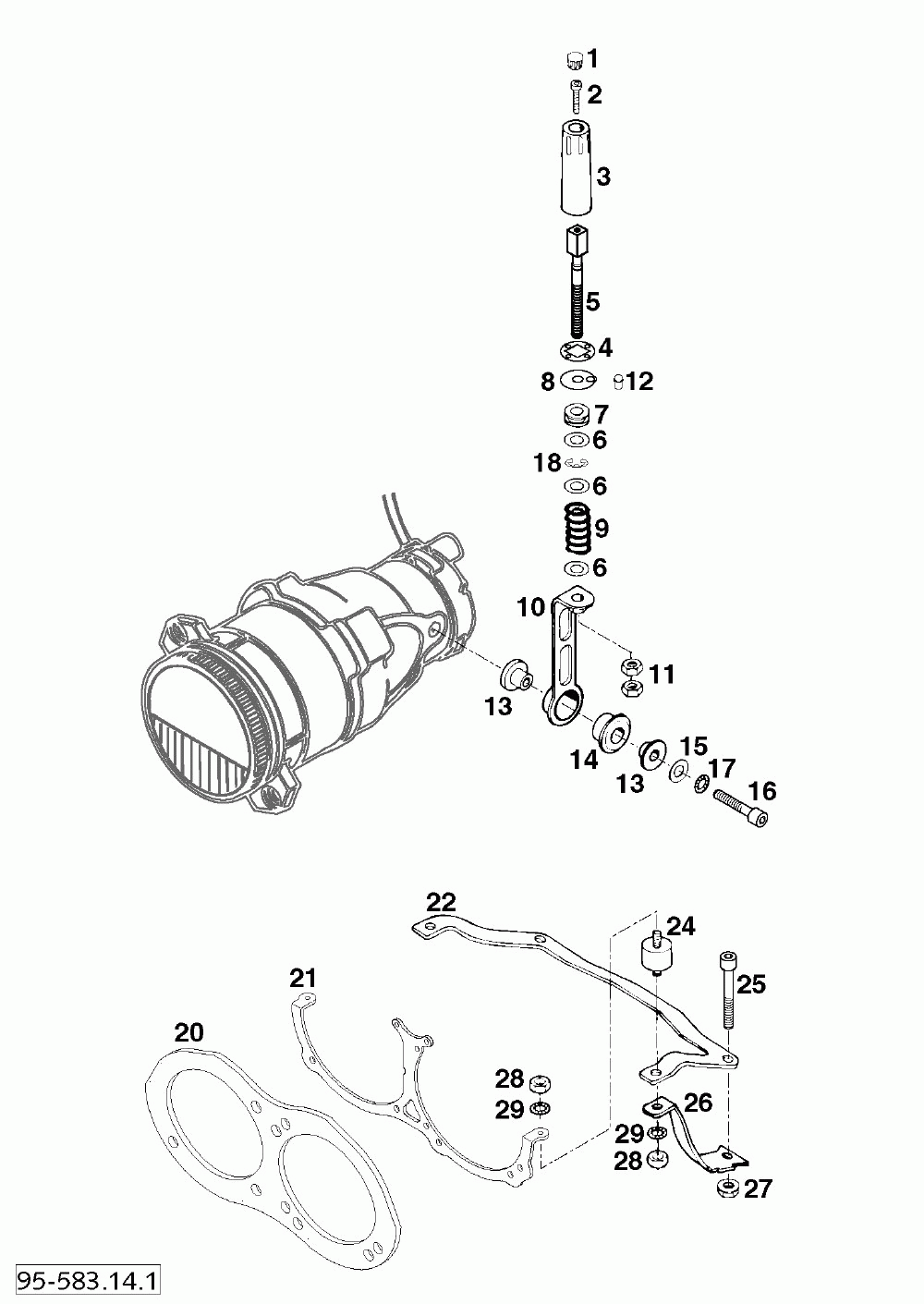

Befestigung scheinwerfer support head light 640 98

KTM 640 DUKE ELECTRIC STARTER CHASSIS
KTM
#oem кодцена
1
58301098100
Plastic Cap 3/8" 2617
2
0912040163
Ah Screw Din0912-m 4x16
3
58311049003
Adjusting Button Duke'94
4
58311049008
Locking Washer Duke'95
5
58311049002
Adjusting Screw M8
6
0125080003
Washer Din0125-a 8, 4
7
31008060000
Rubber Sleeve D=8mm Open
8
58311049009
Support Washer '95
9
58311049007
Tensioning Spring 1 X 12 X 35
10
58311049000
Adjusting Screw Bracket Duke94
11
0936080003
Hexagon Nut Din0936-m 8
12
58303050054
Pressure Piece T16663
13
54635036000
Втулка
14
56401040000
Ркзиновый отбойник
15
0021060003
Washer Din9021-a 6, 4
16
0912060353
Ah Screw Din0912-m 6x35
17
0797060003
Tooth Lock Wash. Din6797-a 6, 4
18
0799070000
Tab Washer Din6799-rs 7, 0
20
58311009000
Headlight Cover Duke'94
21
58311045000
Headlight Carrier Duke'94
22
58311047000
Headlight Support Top
24
54335031000
Rubber Grommet 20x15-m6x10 (2)
25
0912060503
Ah Screw Din0912-m 6x50
26
58311147000
Headlight Support L/s Bottom
27
56509064100
Self Locking Nut M6 10.9
28
0934060003
Hexagon Nut Din0934-m 6
