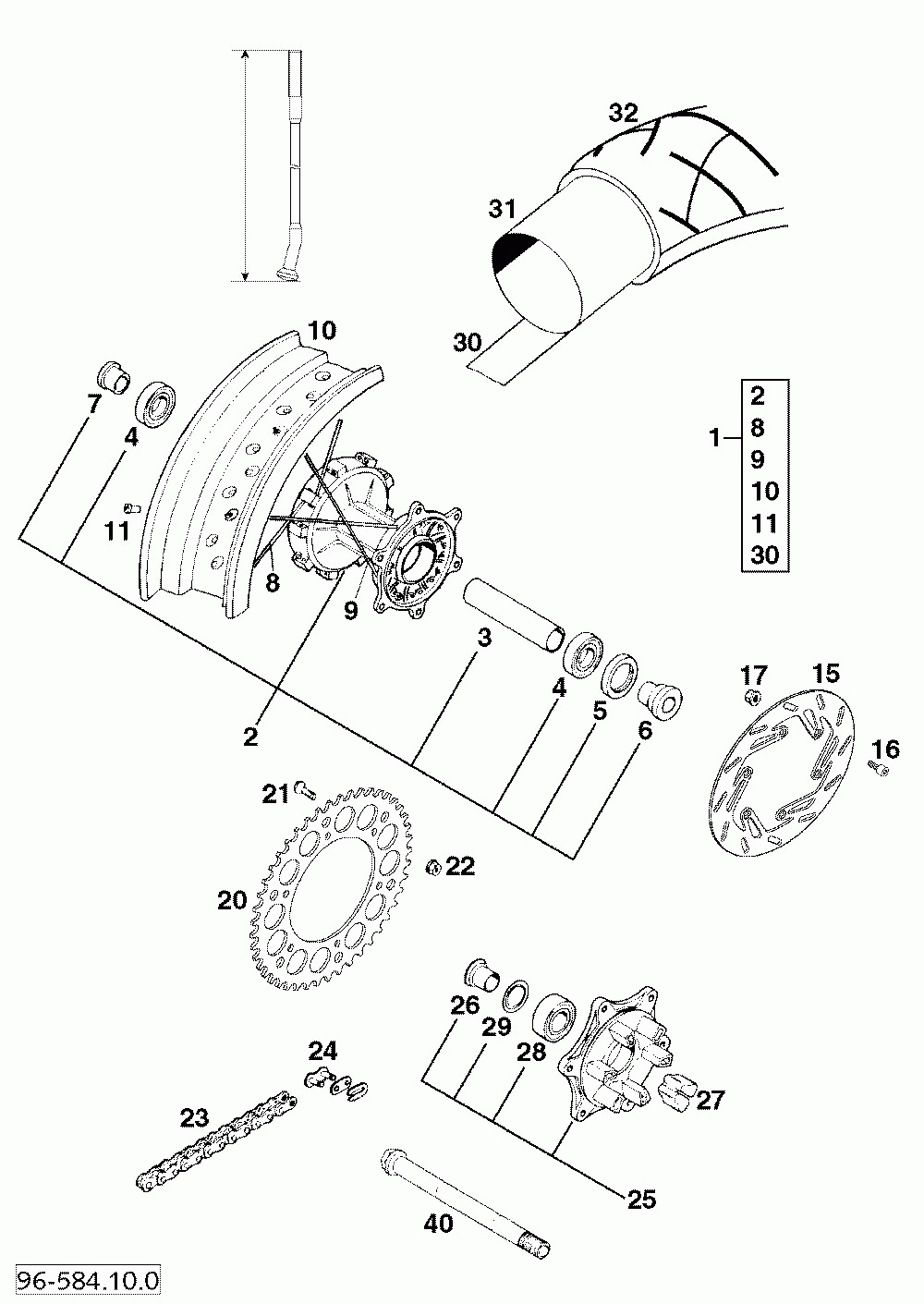

Hinterrad rear wheel 640 98

KTM 640 DUKE ELECTRIC STARTER CHASSIS
KTM
#oem кодцена
1
58410001344
Rear Wheel 4, 25x17"
2
5841001034491
Rear Wheel Hub Damped Cpl. 06
3
58410011000
Bushing Spacer Tube L=98, 3mm
4
0625062052
Gr.ball Bear. 6205-2rshc3hmtf7
5
0760325272
Shaft Seal Ring 32x52x7 B
6
54610016000
Bushing For Hub
7
54610416300
Bushing For Rear Damped Hub
8
58310171100
Spoke M5x199-16g 17"
9
58310071100
Spoke M5x186-26g 17"
10
58410070000
Rear Rim 4, 25x17"
11
58309072100
Spoke Nipple M5-ta 8x21mm
15
58010060600
Rear Brake Disk 220mm Counters
16
0984060163
Ah Screw Din6912-m 6x16
17
56509064100
Self Locking Nut M6 10.9
20
58310051038
Rear Sprocket 38-t
20
58310151040
Rear Sprocket 40-t
20
58310051042
Rear Sprocket 42-t
21
54510052100
Sprocket Screw-ah M8x26 Ws=6
22
54310086200
Self Locking Nut M8 10.9
23
50310800118
% Chain Z-ring 5/8x1/4"
24
50010066100
Master Link 5/8x1/4" X-ring
25
58310050044
Sprocket Support Cpl.
26
54610417300
Bush. F.sprocketsupport L=25mm
27
54610459000
Rubber Damping Block '91
28
0625032057
Gr. Ball Bearing 3205b-2rsrtng
29
54610018000
Seal Washer 3205 Av
30
58309073000
Rim Band 17"
31
58410075000
Tube 17"
40
58310085000
Wheel Spindle Rear L=232mm '94
