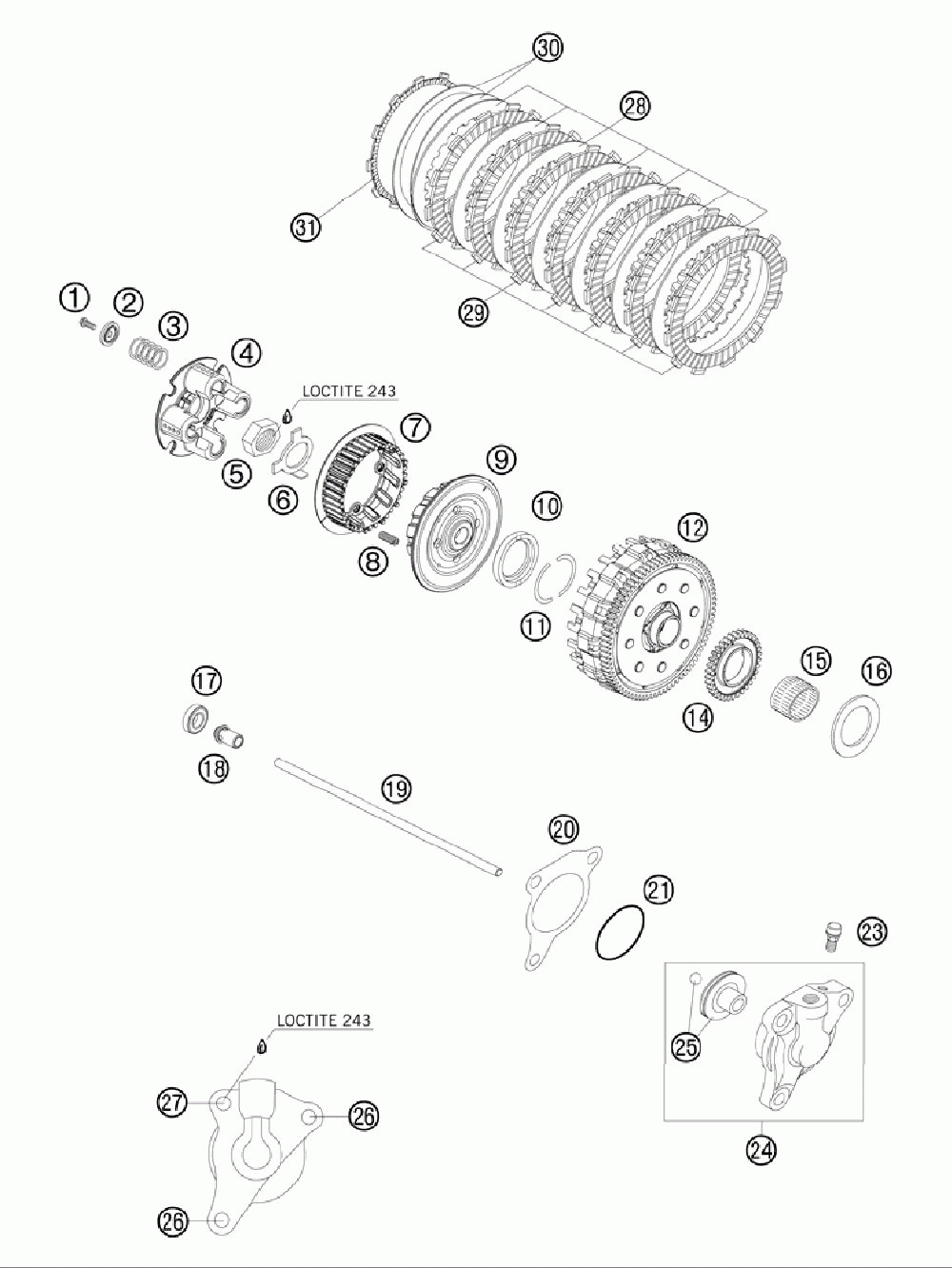

Сцепление

KTM 690 LC4 DUKE USA ENGINE
KTM
#oem кодцена
1
0015060203
Hh Collar Screw M 6x20 Ws=8
2
75032006000
Spring Ring 07
3
58532080000
Clutchspring 3, 0x33, 5
4
75032003000
Крышка Давления
5
60036073050
Hexagon Nut M20x1, 5 7mm
6
75032018000
Lock Washer 07
7
75032002002
Inner Clutch Hub Movable
8
75032033000
Clutch Release Spring
9
75032002001
Inner Clutch Hub Fixed
10
75032009000
Stepped Washer 07
11
75032007000
Half-washer 07
12
75032001044
Outer Clutch Hub Cpl.
14
75032050001
Oil Pump Drive Wheel 07
15
56532095000
Needle Bearing K26x30x22zw.kse
16
75032017000
Washer 26x40x2 07
17
0625060016
Groov.ball Bear. 6001.2rsr C3
18
75032055000
Pressure Bolt 07
19
75032054100
Push Rod 08
20
59032065000
Gasket For Slave Cylinder
21
0770300015
O-ring 30, 00x1, 50 Nbr 70
23
54732064000
Штуцер С Колпачком
24
75032061044
Output Cyl. With Bleeder Screw
26
0015060353
Hh Collar Screw M 6x35 Ws=8
28
75032112000
Steel Disk 1, 5 Mm Lc4 07
29
58332011300
Lining Disk 2, 7mm Fcc 02
30
58632016000
Rondella Antivibrazione Set
31
75032111100
Lining Disc Cut Out
