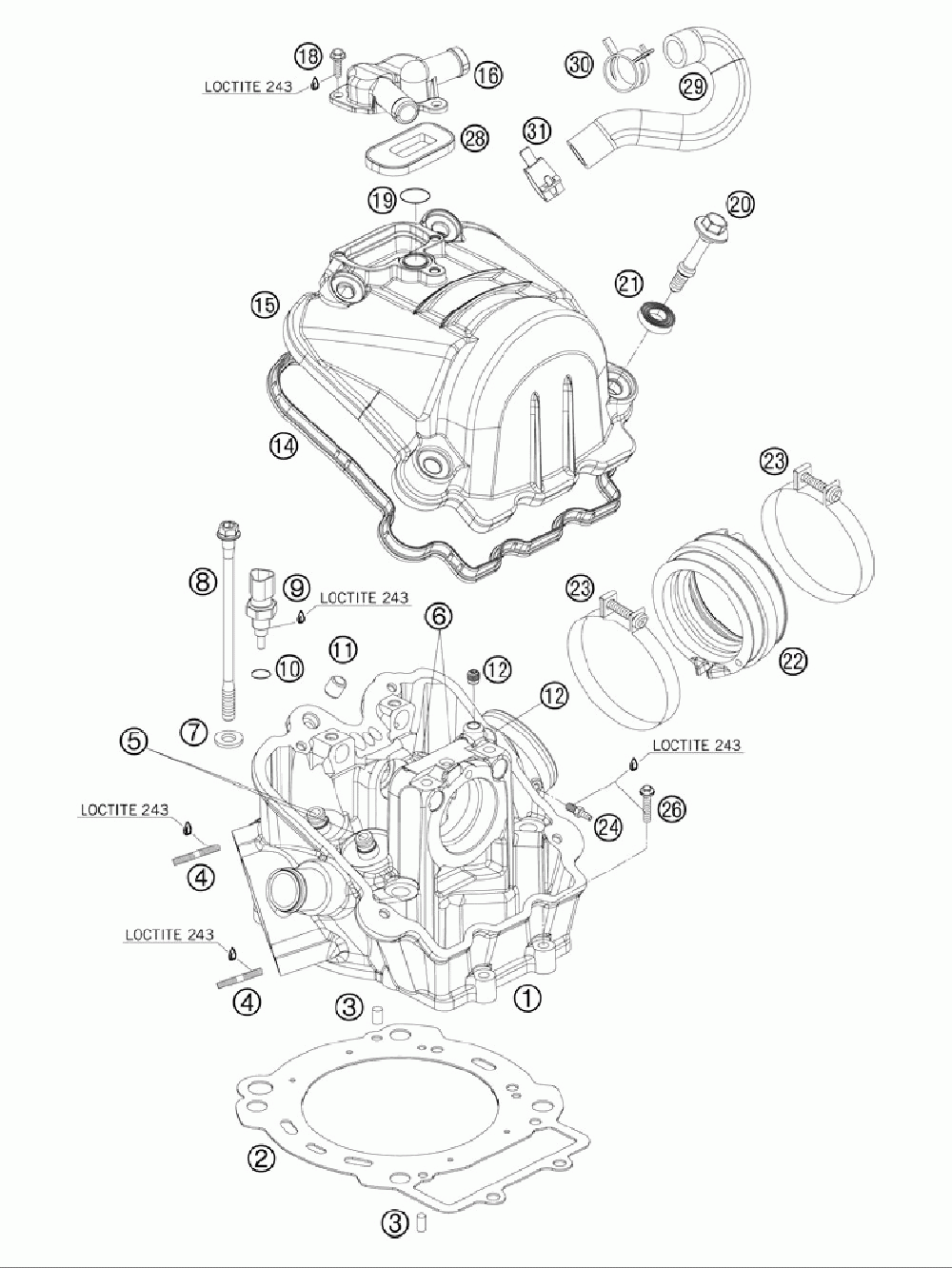

ГОЛОВКА ЦИЛИНДРА

KTM 690 LC4 DUKE USA ENGINE
KTM
#oem кодцена
1
75036020100
Cylinder Head Cpl. 05
2
75030036000
Cylinder Head Gasket 07
3
0474050080
Grooved Pin Din1474 5x8
4
0835080256
Stud Din0835-m 8x25 10.9
5
60036026100
Valve Giude Outlet '05
6
60036025100
Valve Giude Outlet '05
7
60036078050
Shim 10, 2x19x1, 5mm 05
8
75036079000
Cylinderhead Screw M10x168ws14
9
75035047000
Temperature Sensor Water 07
10
0770100020
O-ring 10, 00x2, 00 Silcone
11
49030090000
Шпонка 9, 8 Х 7 Х 10
12
59030296000
Резьбовая пробка
13
42011252050
Adapter For Temperature Switch
14
75036053000
Valve Cover Gasket 07
15
75036052000
Valve Cover 07
16
75036052050
Breather Cover 07
18
0984050103S
Cylind. Scr. Din6912 M5x10 8.8
19
0770150151
O-ring 15, 00x1, 50 Viton
20
75036055000
Valve Cover Screw 05
21
75036052010
Decoupling Element 07
22
75036044000
Intake Boot 07
23
75036047000
Hose Clamp Gemi 70mm
24
60036023100
Vacuum Conection M6/0, 5mm
26
0015060253
Hh Collar Screw M 6x25 Ws=8
28
60005026000
Sls-valve 03
29
75030084000
Breather System Cyl. Box 07
30
00049200121
Clamp Std Dn20
31
00049210121
Clamp 21x12 Std-des
