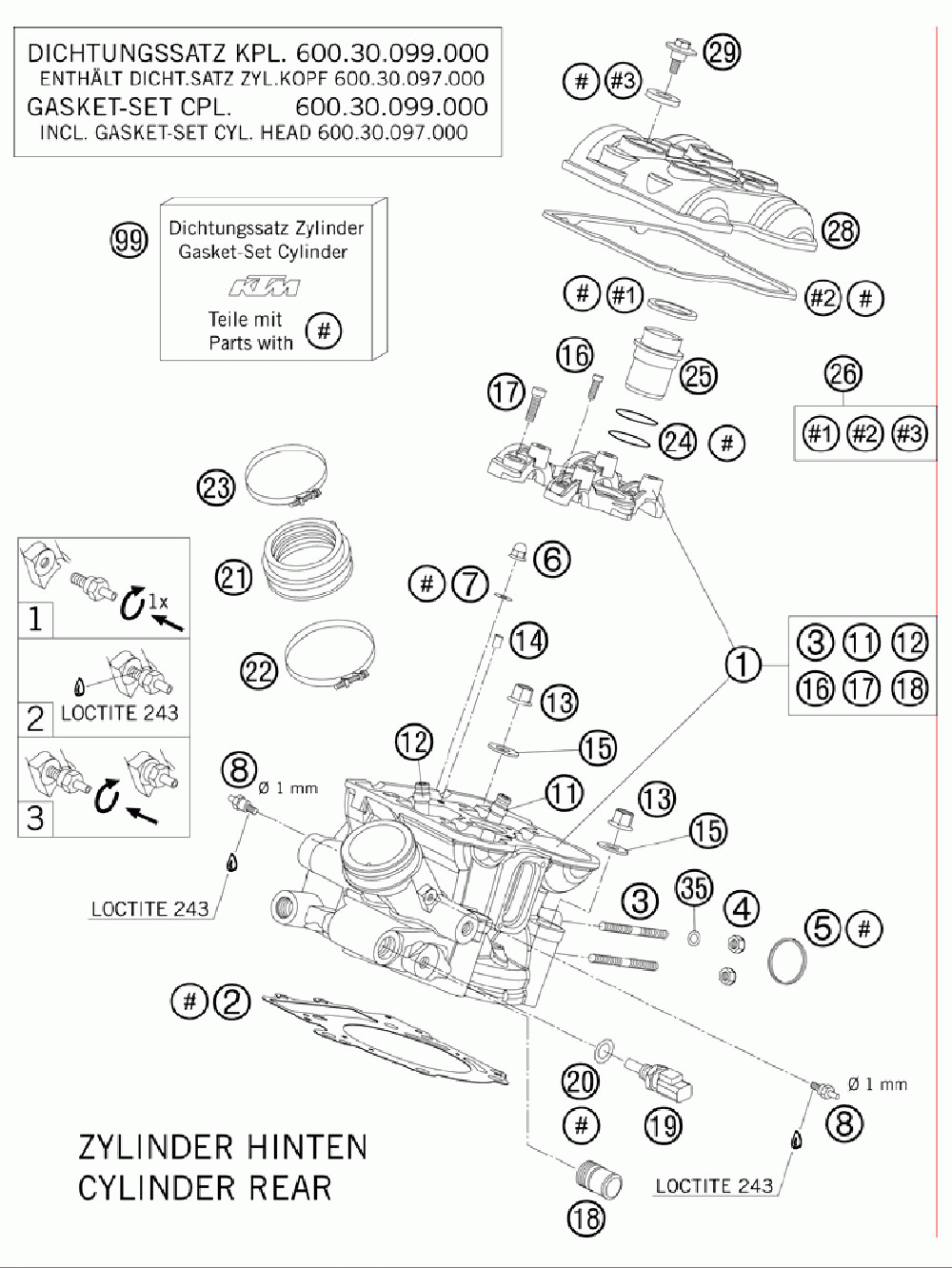

Головка цилиндра задняя

KTM 990 ADVENTURE USA ENGINE
KTM
#oem кодцена
1
60136120044
Cylinder Head Cpl. Rear
2
60030036000
Cylinder Head Gasket 0, 5 101mm
3
0835080165
Stud M 8x16 10.9
4
51010086100
Self Locking Nut M 8 Cu
5
61005005000
Exhaust Gasket 05
6
0587060002
Hh Cap Nut Din1587-m 6 Ss.
7
0125060003
Washer Din0125-a 6, 4
8
61036023100
Vacuum Conection 2006
11
60036026100
Valve Giude Outlet '05
12
60036025100
Valve Giude Outlet '05
13
60036078200
Collar Nut M 10 Ws=13 05
14
0402050980
Needle Roller Din5402 5x9, 8
15
60036078050
Shim 10, 2x19x1, 5mm 05
16
0912060255
Ah Screw Din0912-m 6x25 10.9
17
0984080305
Ah Screw Din7984-m 8x30 10.9
18
58030010200
Screw In Nozzle M20x1, 5
19
60011252000
Temperat.-sensor Water Lc8 02
20
0770100020
O-ring 10, 00x2, 00 Silcone
21
61036044000
Rubbersleeve Intake Flange 05
22
61036048000
Hose Clamp Gemi 66mm 05
23
61036047000
Hose Clamp Gemi 63mm 05
24
0770298178
O-ring 29, 87x1, 78 Viton
25
60036075000
Insert Spark-plug Shaft Lc8 03
26
60036099000
Valve Cover Gasket Set Fr+rr
28
60036152000
Valve Cover Rear 03
29
60036052020
Collar Screw M 6 Ws=10 03
35
61005009000
Spacer Bush. 8, 5x15x7, 5 05
99
60030097000
Gasket Set Cyl. Head Kpl. 03
