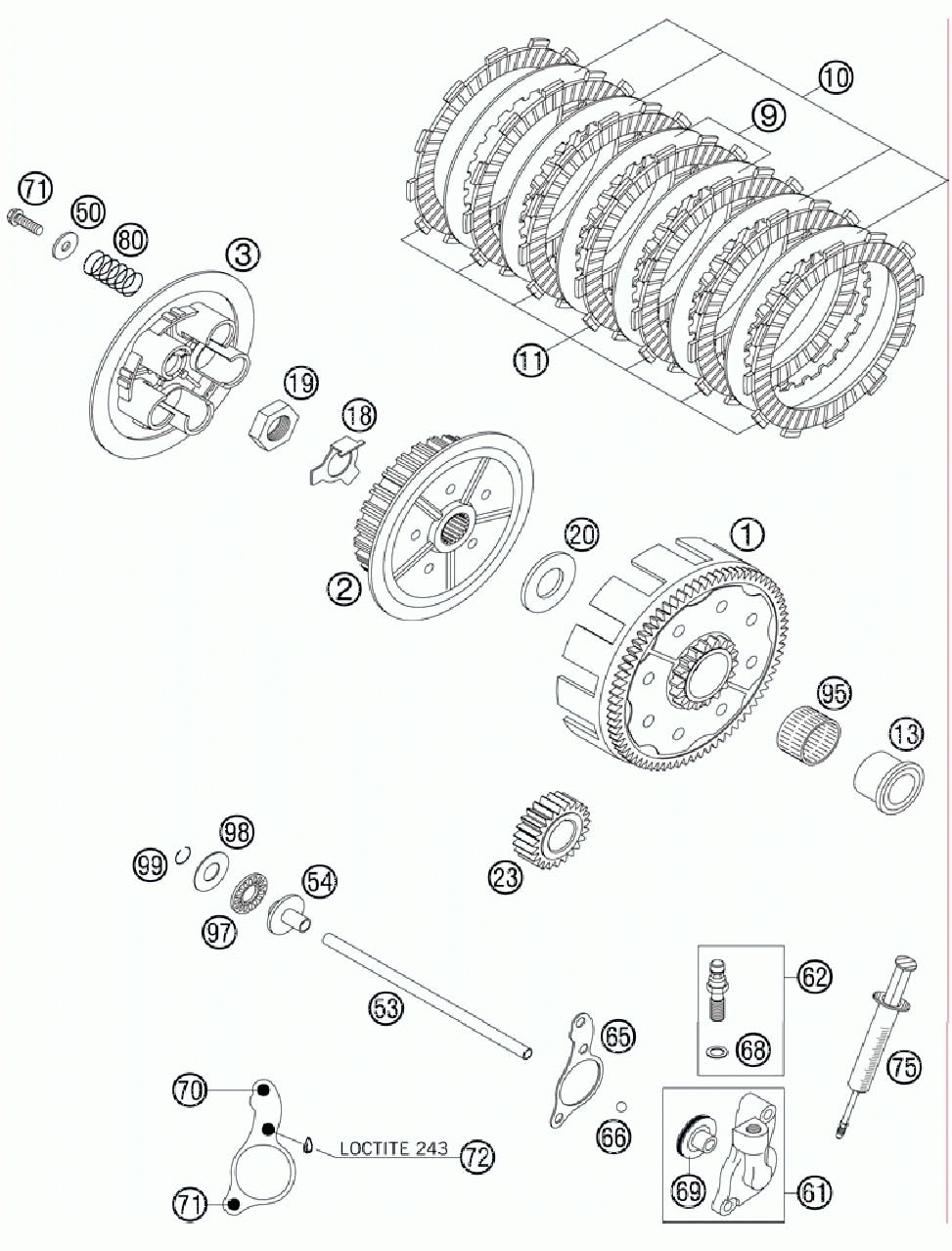

Сцепление

KTM 200 XC ENGINE
KTM
#oem кодцена
1
50332000073
Outer Clutch H.73-t 125/200
2
50332002000
Inner Clutch Hub 125/200'98
3
50332003100
Pressure Plate 1257200 06
9
50332010100
Intermedi. Disc Steel 1, 5mm'98
10
50332010300
Intermediate Disk Alu 1, 5mm 06
11
50332011000
Organic Disk 3mm '98
13
50332013000
Inner Ring 20x26x25, 9 '98
18
50332018000
Sheet Metal Lock 1, 5mm '98
19
0936181505
Hexagon Nut Din0936-m18x1, 5 R.
20
50332020000
Stop Disk 20x39, 6x3 '98
23
50332023123
Primary Pinion 23-t 125/200 06
50
52332006100
Stepped Washer 03
53
50332017300
Push Rod L=178 125/200 2006
54
50332054051
Pressure Piece 125-380 '98
61
50332061044
Cylinder Cpl. 125/200'98
62
50332062000
Hollow Screw Cpl. M 10x1 '98
65
50332065051
Clutch Release Gasket 0, 3mm
65
50332065052
Clutch Release Gasket 0, 5mm
65
50332065053
Clutch Release Gasket 0, 75mm
66
0401070003
Ball Din5401-7
68
42013226000
Cu-seal Ring Din7603-10x16x1
69
50332066000
Piston W. O-ring 125/200 2000
70
0015060403
Hh Collar Screw M 6x40 Ws=8
71
0015060203
Hh Collar Screw M 6x20 Ws=8
72
0015060253
Hh Collar Screw M 6x25 Ws=8
75
50329050000
Vent Injektion Hydr. Clutch
80
52332005000
Clutch Spring 2, 4x40 200'98
95
56532095000
Needle Bearing K26x30x22zw.kse
97
54637097200
Axial Needle Bearing Axk 1226
98
54637098200
Axial Washer As1226 12x26x1
98
54637098300
Axial Washer 12, 5x25, 8x1, 5
99
0993012000
Circlip Din7993-rw12
70
0025060406
Hh Collar Screw M6x40 Tx30
