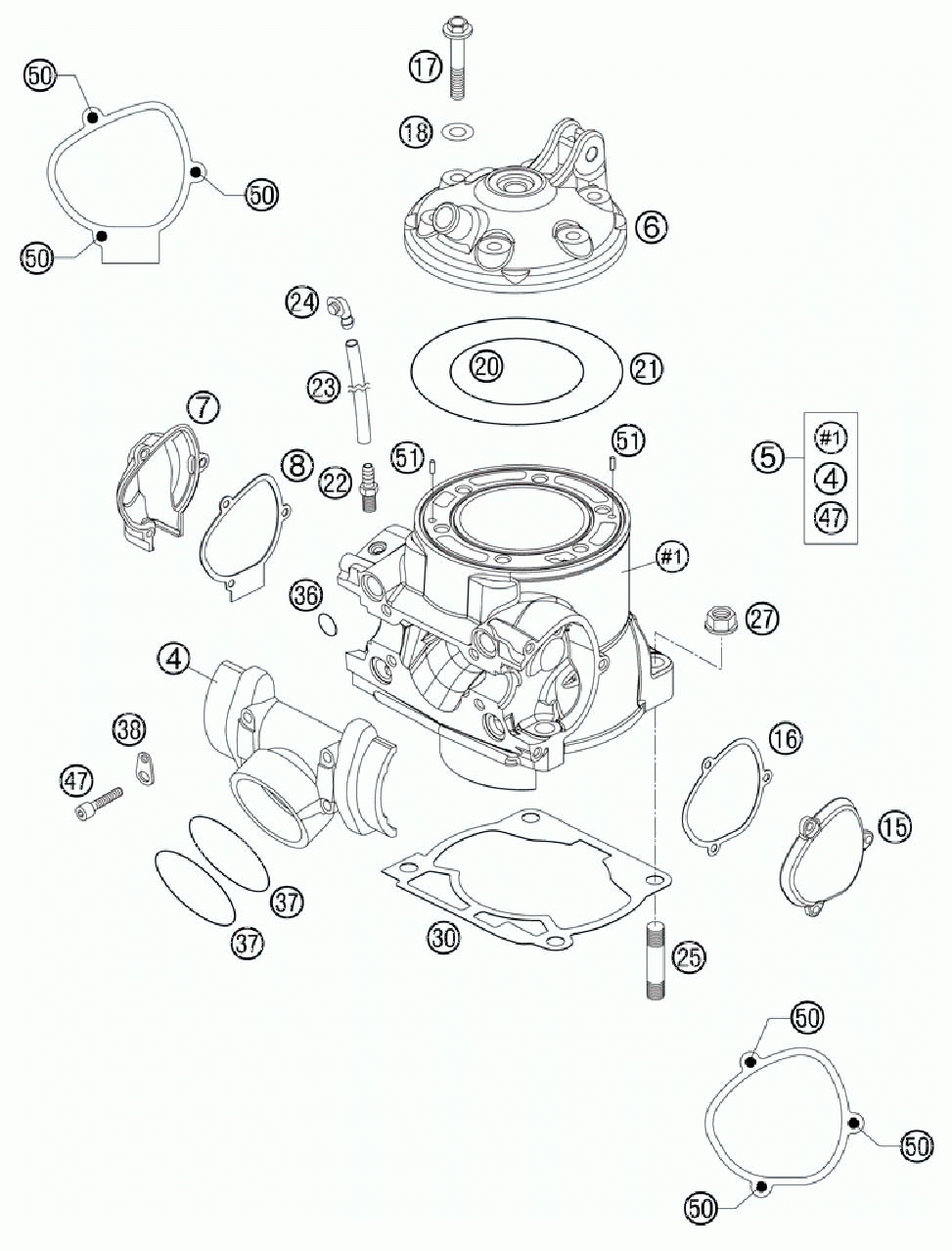

Цилиндр

KTM 250 XC ENGINE

Цилиндр

#

oem код

название

цена

4

Intermediate Flange 250/300 07

Intermediate Flange 250/300 07

5

Cylinder Cpl. W. Flange 250 07

Cylinder Cpl. W. Flange 250 07

6

Cylinder Head 250 Ccm

Cylinder Head 250 Ccm

7

Control Cover R/s 07

Control Cover R/s 07

8

Gasket For Control Cover R/s

Gasket For Control Cover R/s

15

Control Cover L/s 07

Control Cover L/s 07

16

Gasket For Control Cover L/s

Gasket For Control Cover L/s

17

Collar Screw M 8x35 Ws=13

Collar Screw M 8x35 Ws=13

18

Cu-seal Ring 8 X 16 X 1

Cu-seal Ring 8 X 16 X 1

20

O-ring 73, 00x2, 00 Viton

O-ring 73, 00x2, 00 Viton

21

O-ring 105, 00x2, 00 07

O-ring 105, 00x2, 00 07

22

Vacuum Connection M 6x1

Vacuum Connection M 6x1

23

Pvc-hose 6x9 Mm Per Meter

Pvc-hose 6x9 Mm Per Meter

24

Angle Piece '97

Angle Piece '97

25

Stud Din0835-m10x35

Stud Din0835-m10x35

27

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

30

Gasket Cylinder Base 0, 2mm 03

Gasket Cylinder Base 0, 2mm 03

30

Gasket Cylinder Base 0, 4mm 03

Gasket Cylinder Base 0, 4mm 03

30

Gasket Cylinder Base 0, 5mm 03

Gasket Cylinder Base 0, 5mm 03

30

Gasket Cylinder Base 0, 75mm 03

Gasket Cylinder Base 0, 75mm 03

36

O-ring 11, 3 X2, 4 Silicon

O-ring 11, 3 X2, 4 Silicon

37

O-ring 44, 00x3, 00 Viton

O-ring 44, 00x3, 00 Viton

38

Retaining Plate

Retaining Plate

47

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

50

Hh Collar Screw M 5x12 Ws=6

Hh Collar Screw M 5x12 Ws=6

51

Needle Rol.din5402 Nrb 4x9, 8

Needle Rol.din5402 Nrb 4x9, 8
