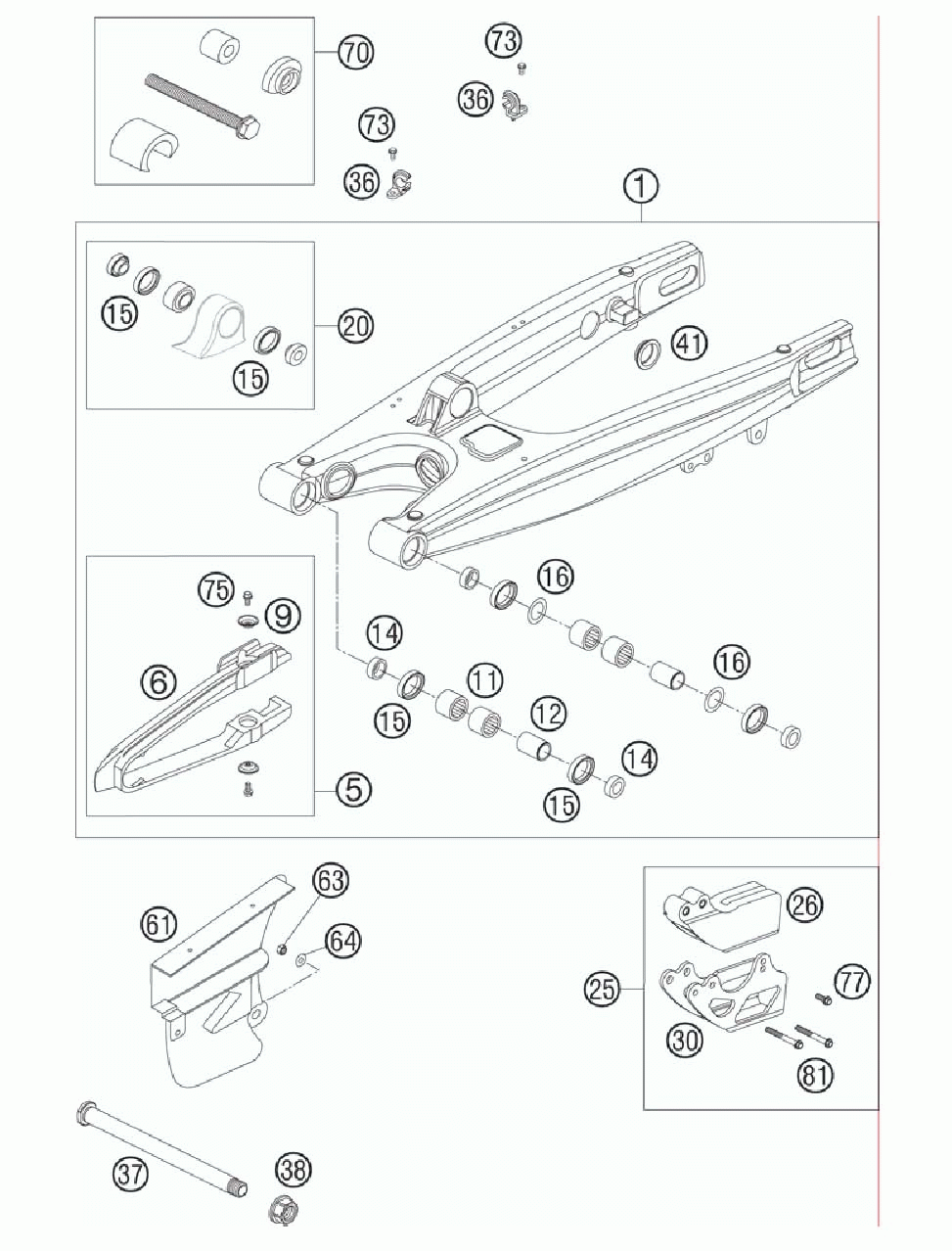

Бугель

KTM 525 XC CHASSIS

Бугель

#

oem код

название

цена

1

Swingarm Cpl. 05

Swingarm Cpl. 05

5

Chain Guard Cpl. 05

Chain Guard Cpl. 05

6

Chain Guard 05

Chain Guard 05

9

Шайба

Шайба

11

Needle Bearing Hk2212v

Needle Bearing Hk2212v

12

Bearing Sleeve 17x22x38, 7 03

Bearing Sleeve 17x22x38, 7 03

14

Bucket F. Shaft Seal Ring 03

Bucket F. Shaft Seal Ring 03

15

Shaft Seal Ring 25x32x7

Shaft Seal Ring 25x32x7

16

Stop Disk 22, 2x31, 7x1

Stop Disk 22, 2x31, 7x1

20

Pivot Bearing+bushes Pds '99

Pivot Bearing+bushes Pds '99

25

Chain Guide Rear Cpl.

Chain Guide Rear Cpl.

26

Chain Guide Rear '94

Chain Guide Rear '94

30

Retaining Plate Cpl.

Retaining Plate Cpl.

36

Retain.clamp For Brake Hose'96

Retain.clamp For Brake Hose'96

37

Swingarm Bolt M16x1, 5 07

Swingarm Bolt M16x1, 5 07

38

Self Lock.nut M16x1, 5 Ws=19 03

Self Lock.nut M16x1, 5 Ws=19 03

41

Closing Cover Round 03

Closing Cover Round 03

61

Chain Guard Small Exc 2000

Chain Guard Small Exc 2000

63

Self Lock. Nut Din0985-m 6

Self Lock. Nut Din0985-m 6

64

Washer Din9021-a 6, 4

Washer Din9021-a 6, 4

70

Tool Bearing Mounting Pds

Tool Bearing Mounting Pds

73

Special Screw M 5, 0x10

Special Screw M 5, 0x10

75

Hh Collar Screw M 6x10 Ws=8

Hh Collar Screw M 6x10 Ws=8

77

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

81

Hh Collar Screw M 6x50 Ws=8

Hh Collar Screw M 6x50 Ws=8

11

Needle Bush Hk2212v

Needle Bush Hk2212v
