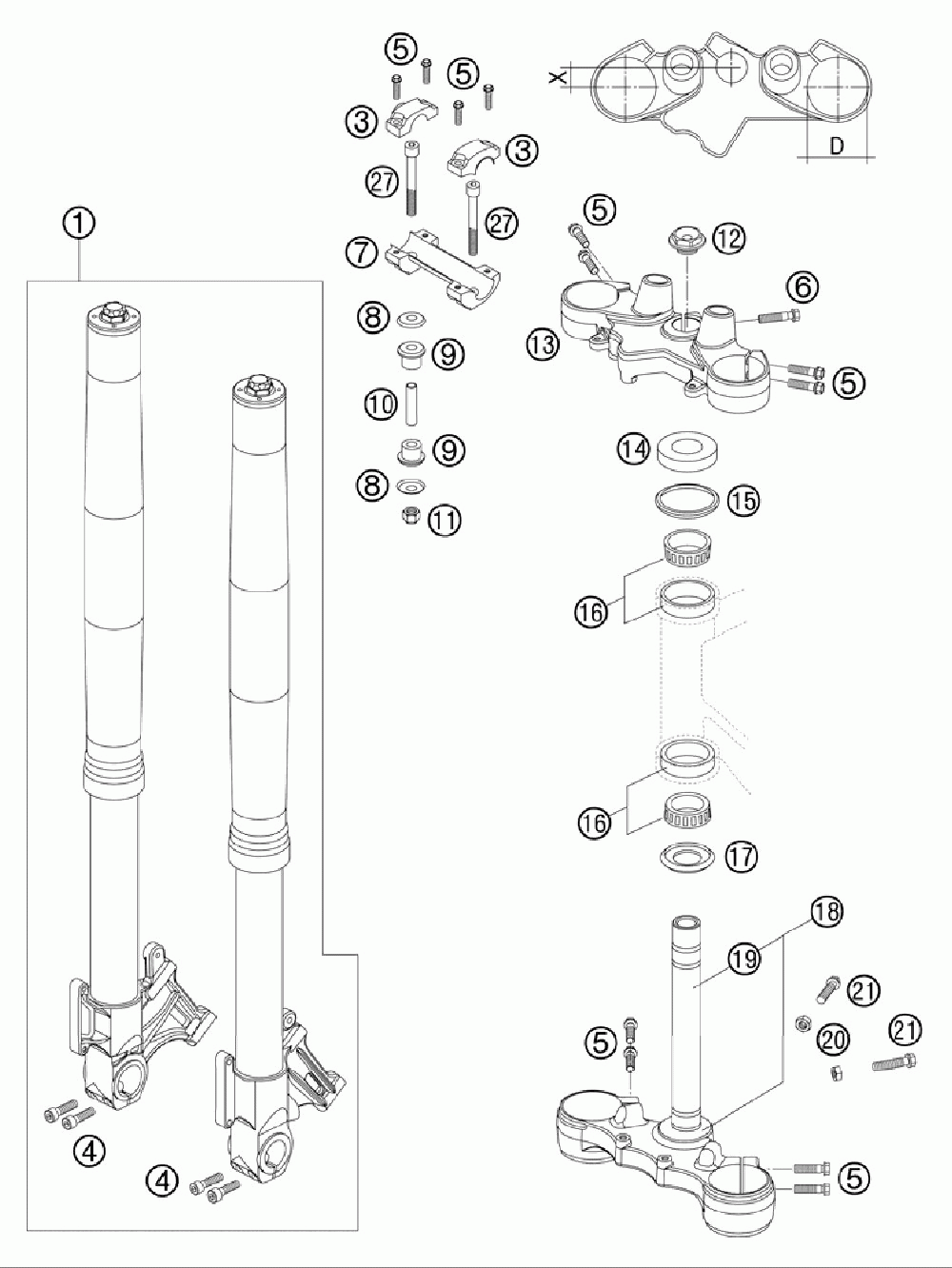

Telescopic fork

KTM 950 SUPERMOTO BLACK USA CHASSIS
KTM
#oem кодцена
1
14187C20
Front Fork Wp 950 Supermoto 07
3
5900103830001S
Handlebar Clamp 28mm 07
4
0912080303
Ah Screw Din0912-m 8x30
5
0025080306
Hh Collar Screw M8x30 Tx40
6
0015080353
Hh Collar Screw M 8x35 Ws=10
7
5900103920001S
Handlebar Support 28mm 07
8
56401042000
Washer 10, 5x32x2
9
56401040000
Ркзиновый отбойник
10
56401041100
Spacer Tube 10, 2x12x44
11
0982100003
Self Lock.nut Din0982-m10 High
12
54801036200
Steer.head Screw M20x1, 5 Sw=27
13
6250103402801S
Top Triple Clamp 07
14
54201086000
Steering Head Cover
15
54601184000
Stearing Head Gasket Top
16
54201081100
Tapered Roller Bearing Cpl. 06
17
54601084200
% O-ring Support W. Sealinglip
18
6250103202801S
Bottom Triple Clamp Cpl. 07
19
60001033000
Fork Tube Lc8 Adv 03
20
0934080003
Hexagon Nut Din0934-m 8
21
0933080303
Hh Screw Din0933-m 8x30
27
0984100703
Ah Screw Din6912-m10x70
17
54601084100
O-ring Support W. Sealing Lip
