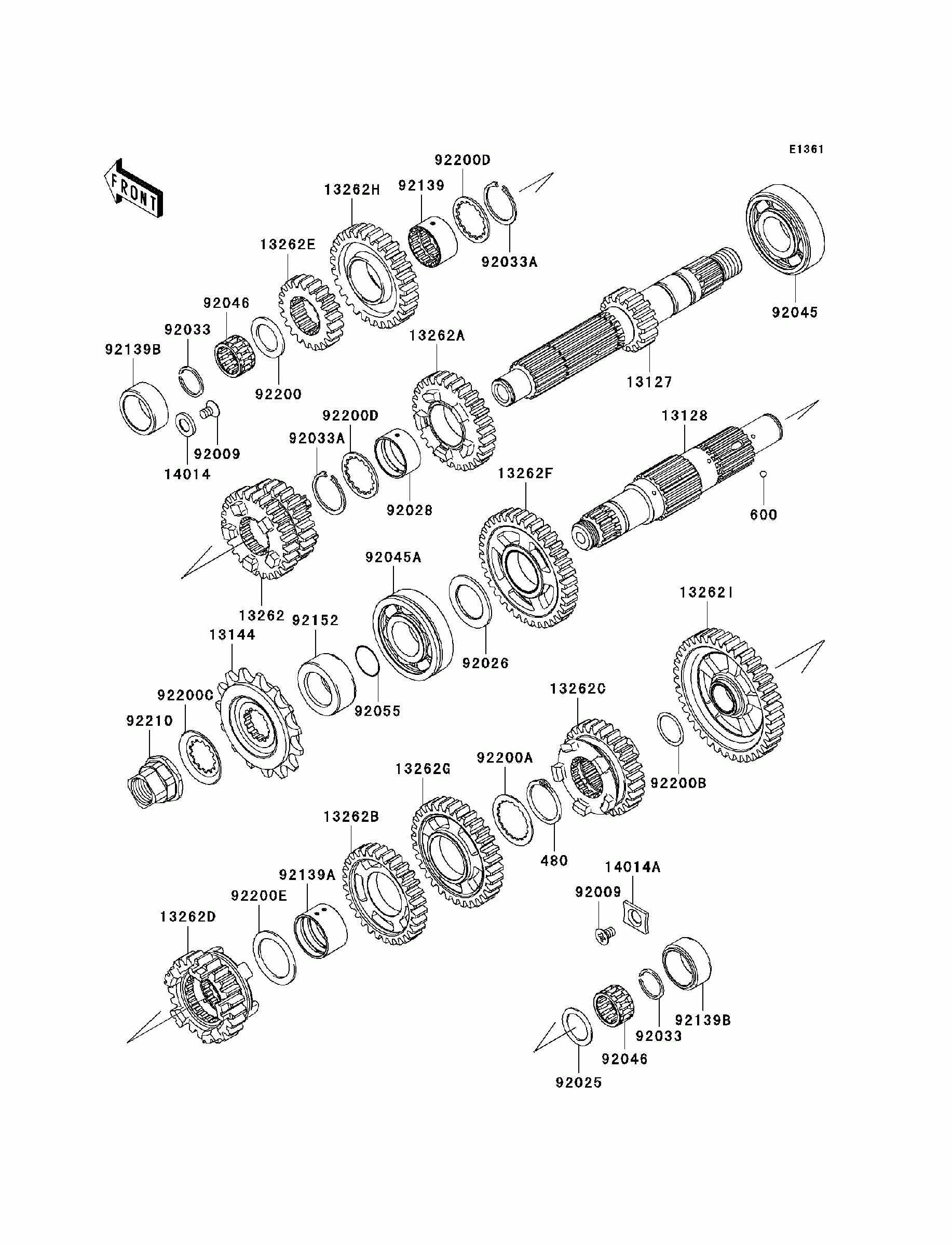

ТРАНСМИССИЯ

Kawasaki ER-6n (ER650-C9F)
Kawasaki
#oem кодцена
480
480J2900
СТОПОРНОЕ КОЛЬЦО
600
600A0500
Ball Steel 5/32'
13127
13127-0028
Shaft-transmission In
13128
13128-0020
Shaft-transmission Ou
13144
13144-0024
Sprocket-output, 15t, #
13262
13262-0245
Gear, Input 3rd&4th, 24
13262A
13262-0246
Gear, Input 5th, 29t
13262B
13262-0251
Gear, Output 4th, 30t
13262C
13262-0252
Шестерня, выход 5-ой, 28т
13262D
13262-0253
Gear, Output Top, 23t
13262E
13262-0335
Gear, Input 2nd, 21t
13262F
13262-0337
Gear, Output 2nd, 36t
13262G
13262-0338
Gear, Output 3rd, 32t
13262H
13262-0447
Gear, Input Top, 27t
13262I
13262-0498
Gear, Output Low, 39t
14014
14014-0019
Plate-position, Lh
14014A
14014-0020
Plate-position, Rh
92009
92009-1375
Screw, 6x10
92025
92025-1455
Shim, 20.3x28x1.1
92026
92026-1529
Spacer, 25.3x39x2.0
92028
92028-1449
Bushing, Input 5th Gea
92033
92033-015
СТОПОРНОЕ КОЛЬЦО
92033A
92033-1037
Snap Ring, 25.9x1.2t
92045
92045-0042
Bearing-ball, 25x62x17
92045A
92045-1224
Bearing-ball, 6305n2sh
92046
92046-1185
Bearing-needle, Kmj20x
92055
92055-0196
Ring-o, 21.5x1.5
92139
92139-0107
Bushing, Input Top Gea
92139A
92139-0108
Bushing, Out 3rd&4th G
92139B
92139-0120
Bushing, Bearing-needl
92152
92152-0300
Collar, 25x40x17.2
92200
92200-0221
Washer, 20.2x30x1.8
92200A
92200-0222
Washer, 30.3x38x1.0
92200B
92200-0291
Washer, 20.2x25.0x0.5
92200C
92200-0506
Шайба
92200D
92200-1240
Washer, 2nd, 3rd, 4th
92200E
92200-1278
Washer, 29.9x40x1.5
92210
92210-0222
Nut, M20, L=24mm
