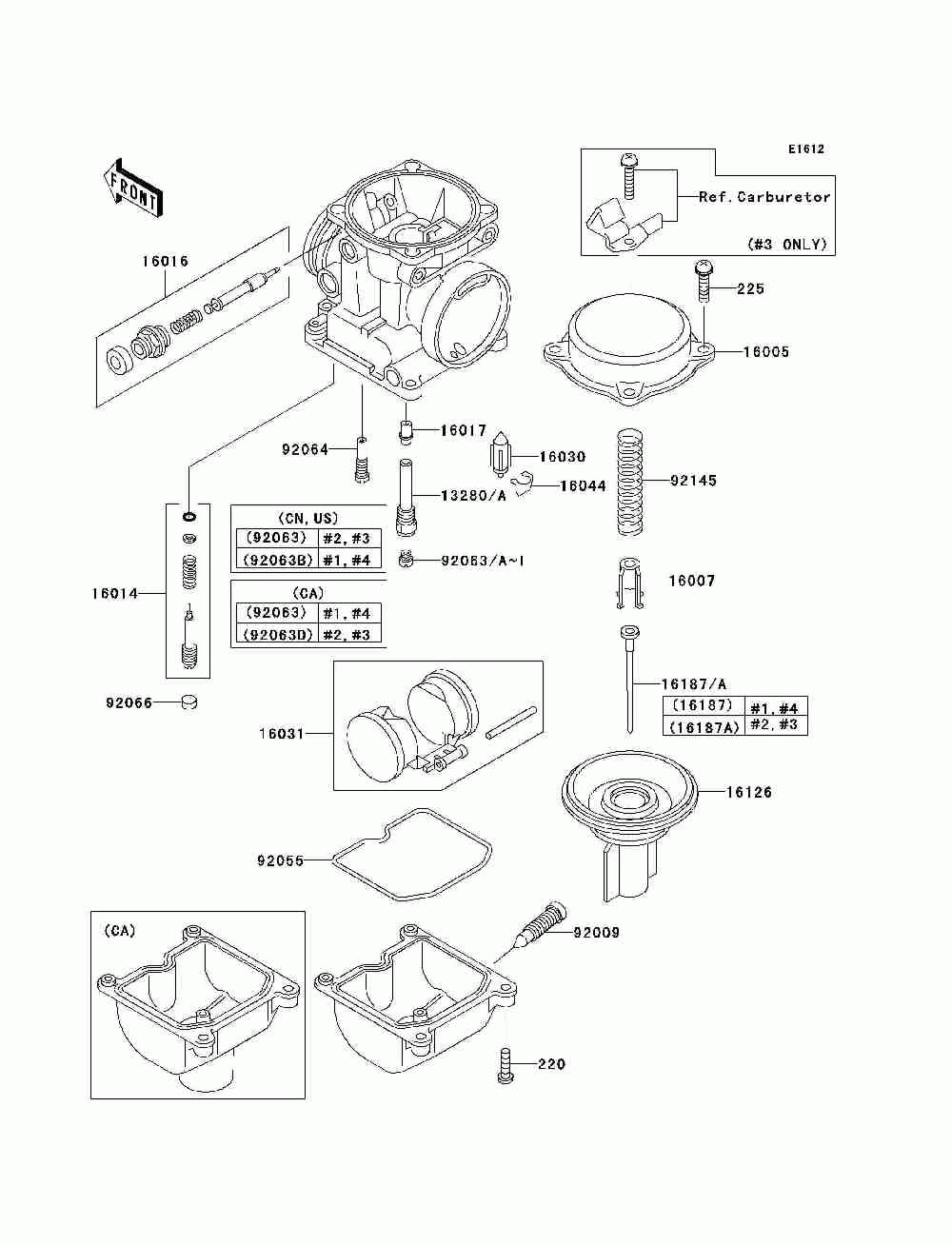

Карбюратор в разборе

Kawasaki ZRX1200R (ZR1200-A4)
Kawasaki
#oem кодцена
13280
13280-0101
Holder, Needle Jet Ca
13280A
13280-1054
Holder, Needle Jet Cnus
16005
16005-1057
Top-chamber, Mixing
16007
16007-1117
Seat-spring, Throttle
16014
16014-1080
Screw-pilot Air
16016
16016-1090
Плунжер
16017
16017-1440
Jet-needle
16030
16030-1057
Игла запорная
16031
16031-1077
Поплавок
16044
16044-007
Clip, Float Valve
16126
16126-1338
Valve, Vacuum
16187
16187-1200
Needle-jet, Nage
16187A
16187-1201
Needle-jet, Nagu
92009
92009-1551
Винт
92055
92055-1222
Ring-o, Float Chamber
92063
92063-1001
Main Jet, 2nd, #95
92063B
92063-1004
Main Jet, #92, 2nd Cnus
92063D
92063-1005
Main Jet, #2nd, #98 Ca
220
220AA0414
Винт
225
225AB0418
Винт
92064
92064-1101
Jet-pilot, #35
92066
92066-1051
Plug, Pilot Screw
92145
92145-1064
Spring, Vacuum Valve
92063A
92063-1003
Main Jet, 2nd, #90 (option)
92063F
92063-1006
Main Jet, 2nd, #100 Cnus (option)
92063G
92063-1008
Main Jet, #100 Ca (option)
92063H
92063-1024
Main Jet, 2nd #88 Cnus (option)
92063I
92063-1115
Jet-main, #102 Ca (option)
