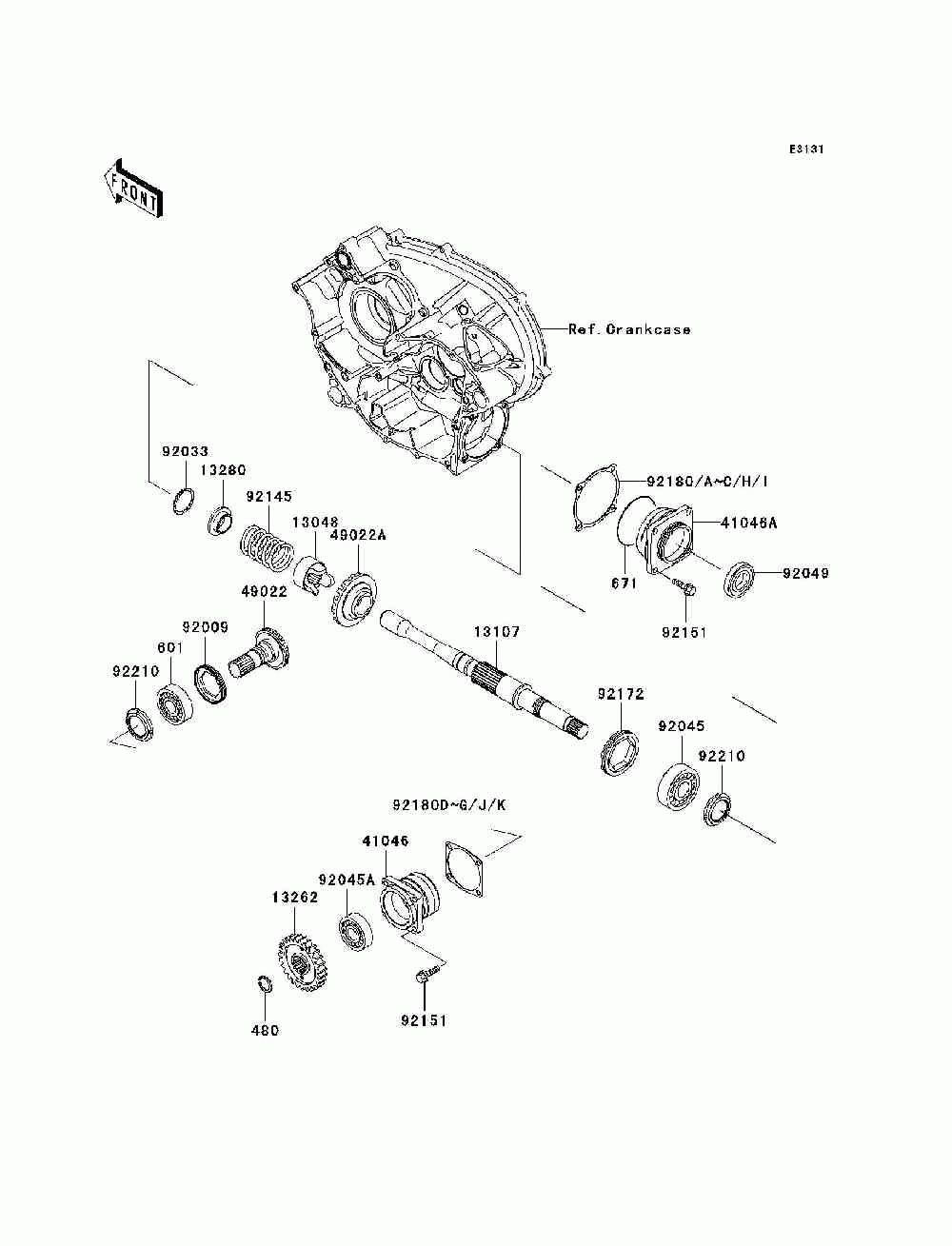

Передняя коническая зубчатая передача

Kawasaki KFX700 (KSV700-B6F)

Передняя коническая зубчатая передача

#

oem код

название

цена

480

Circlip 28mm

Circlip 28mm

601

Ball Bearing, #6206

Ball Bearing, #6206

671

Кольцо

Кольцо

13048

Cam-damper

Cam-damper

13107

Вал

Вал

13262

Gear, Output Driven, 27

Gear, Output Driven, 27

13280

Держатель

Держатель

41046

Housing-bearing

Housing-bearing

41046A

Housing-bearing

Housing-bearing

49022

Gear-bevel, Drive, 12t

Gear-bevel, Drive, 12t

49022A

Gear-bevel, Drivne, 20t

Gear-bevel, Drivne, 20t

92009

Screw, 64mm

Screw, 64mm

92033

Кольцо

Кольцо

92045

Bearing-ball, 6306sh2

Bearing-ball, 6306sh2

92045A

Bearing-ball, 62/28

Bearing-ball, 62/28

92049

Сальник

Сальник

92145

Пружина

Пружина

92151

Болт

Болт

92172

Screw, Set, 75x10

Screw, Set, 75x10

92210

Nut, 30mm

Nut, 30mm

92180

Shim, Driven, T=0.15

Shim, Driven, T=0.15

92180A

Shim, Driven, T=0.20

Shim, Driven, T=0.20

92180B

Shim, Driven, T=0.50

Shim, Driven, T=0.50

92180C

Shim, Driven, T=0.80

Shim, Driven, T=0.80

92180D

Shim, Drive, T=0.15

Shim, Drive, T=0.15

92180E

Shim, Drive, T=0.20

Shim, Drive, T=0.20

92180F

Shim, Drive, T=0.50

Shim, Drive, T=0.50

92180G

Shim, Drive, T=0.80

Shim, Drive, T=0.80

92180H

Shim, Driven, T=1.00

Shim, Driven, T=1.00

92180I

Shim, Driven, T=1.20

Shim, Driven, T=1.20

92180J

Shim, Drive, T=0.10

Shim, Drive, T=0.10

92180K

Shim, Drive, T=0.12

Shim, Drive, T=0.12

41046A

Housing-bearing

Housing-bearing
