Crankcase cover assembly Запчасти для квадроциклов ATV Arctic Cat 250-300 (2001)

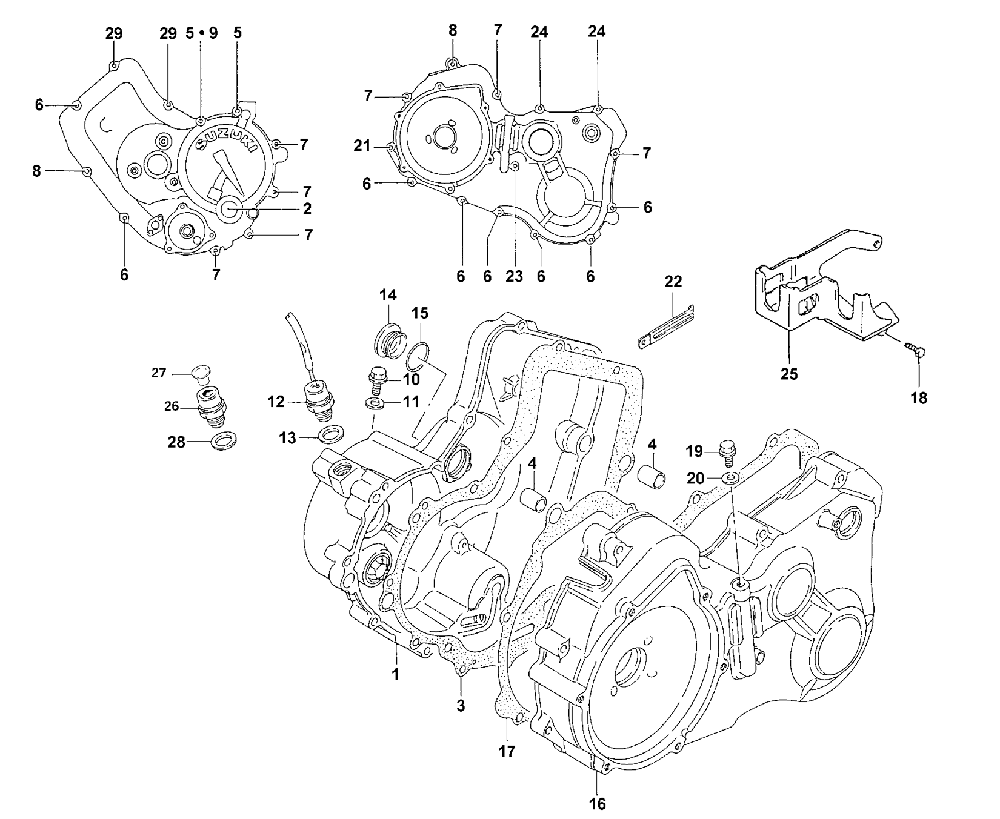

Crankcase cover assembly

Arctic Cat 250-300

oem код

название

цена

3402-254

Cover, Clutch (inc. 2)

3402-112

Lens, Oil Inspection

3402-794

Прокладка крышки сцепления

3423-088

Pin, Cylinder Head Knock(aligment)

Болт 6х100

Болт

Болт

Болт поддона

Прокладка

Болт

Gasket, M8.2x14x1.6

Switch, Oil Lamp (300)

3402-013

Gasket, M16x22x2 (300)

Cap, 30mm

O Ring, D:3.1id:26.4

Cover, Transfer

Gasket, Transfer Cover

3423-898

Bolt, M6x16

3007-457

Болт

3007-369

Bolt, Cylinder Head Cover No. 1

0693-274

Clamp, M6 (250)

3402-237

Clamp, L:135, M6 (300)

3423-896

Bolt, M6x60

3423-878

Bolt, Crankcase-m6x45

3430-029

Brkt, Control Cable 1

3403-236

Plug 16mm (250)

3402-405

Cap, Oil Plug, 8mm (250)

3423-098

Bolt, Transfer Cover-m6x40 (rb 3007-496)

3004-705

Bolt, M8x12 (rb 3007-407)

3004-339

Bolt, 6x10 (r/b 3007-457)
