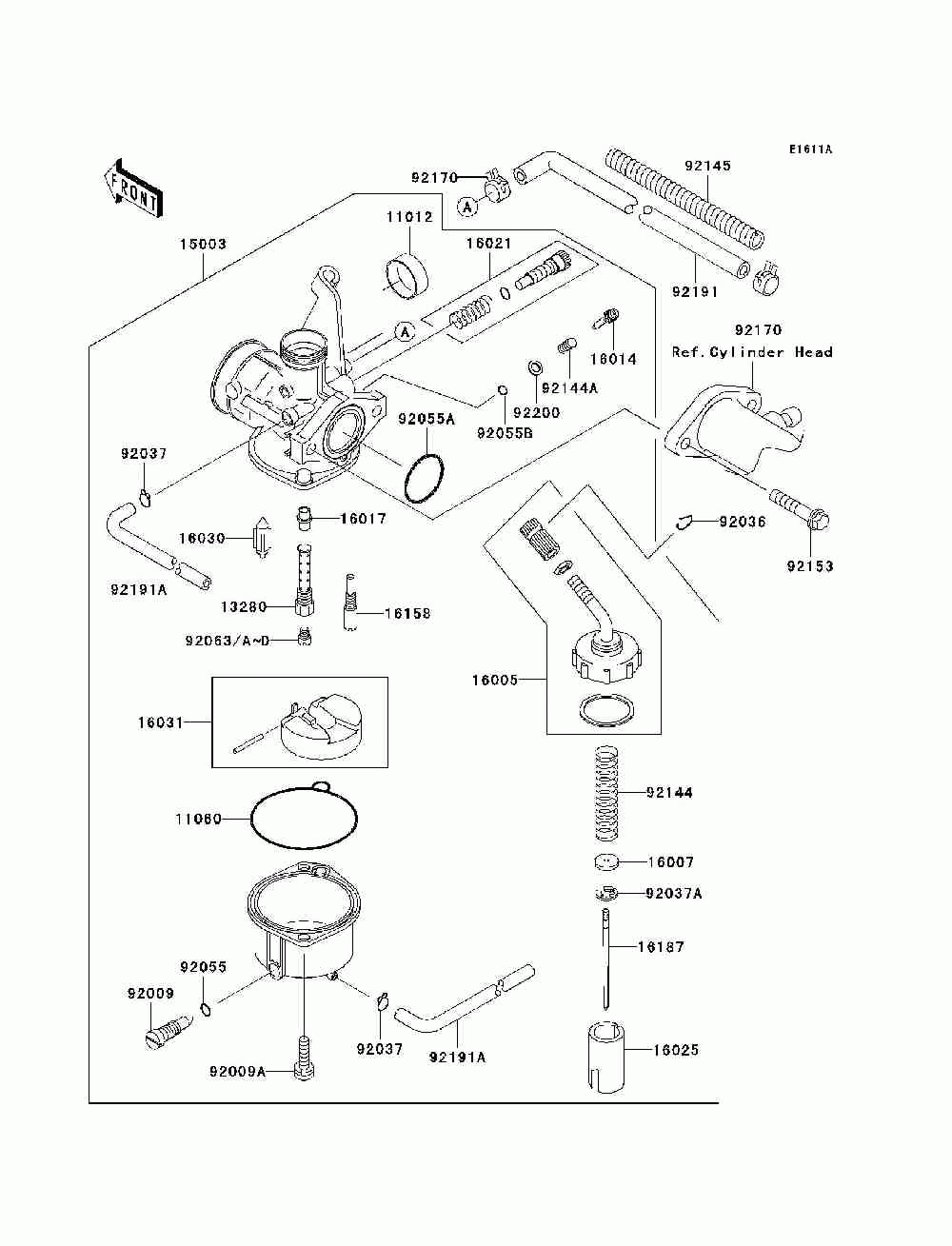

Carburetor(a6f/a7f)(cn)

Kawasaki KLX110 (KLX110-A6F)
Kawasaki
#oem кодцена
11012
11012-1940
Cap, Choke Cn
11060
11060-1700
Gasket, Float Chamber Cn
13280
13280-1092
Holder, Needle Jet Cn
15003
15003-1694
Carburetor-assy Cn
16005
16005-1091
Top-chamber Cn
16007
16007-1103
Seat-spring Cn
16014
16014-1093
Screw-pilot Air Cn
16017
16017-1434
Jet-needle Cn
16021
16021-1241
Screw-throttle Stop Cn
16025
16025-1209
Valve-throttle, Ca3.0 Cn
16030
16030-0002
Valve-float, Float Cn
16031
16031-1088
Float Cn
16158
16158-1063
Jet-slow Cn
16187
16187-1228
Needle-jet, Ncfa Cn
92009
92009-1057
Screw, Drain Cn
92009A
92009-1750
Screw Cn
92036
92036-018
Circlip Cn
92037
92037-1142
Clamp, Tube, Overflow Cn
92037A
92037-1401
Clamp, Jet Needle Cn
92055
92055-1053
"o" Ring, Dr Cn
92055A
92055-1541
Ring-o Cn
92055B
92055-1542
Ring-o Cn
92063C
92063-1396
Jet-main, #80 Cn
92144
92144-1875
Spring, Throttle Cn
92144A
92144-1876
Spring Cn
92145
92145-1481
Spring, Hose Protecter Cn
92153
132BD0630
Bolt-flanged-small Cn
92170
92170-1872
Clamp Cn
92191
92191-1700
Tube, Fuel Cn
92191A
92191-1735
Tube, 3.5x6.5x418 Cn
92200
92200-1270
Washer Cn
92063
92063-1326
Jet-main, #85 Cn (option)
92063A
92063-1393
Jet-main, #78 Cn (option)
92063B
92063-1395
Jet-main, #75 Cn (option)
92063D
92063-1397
Jet-main, #82 Cn (option)
