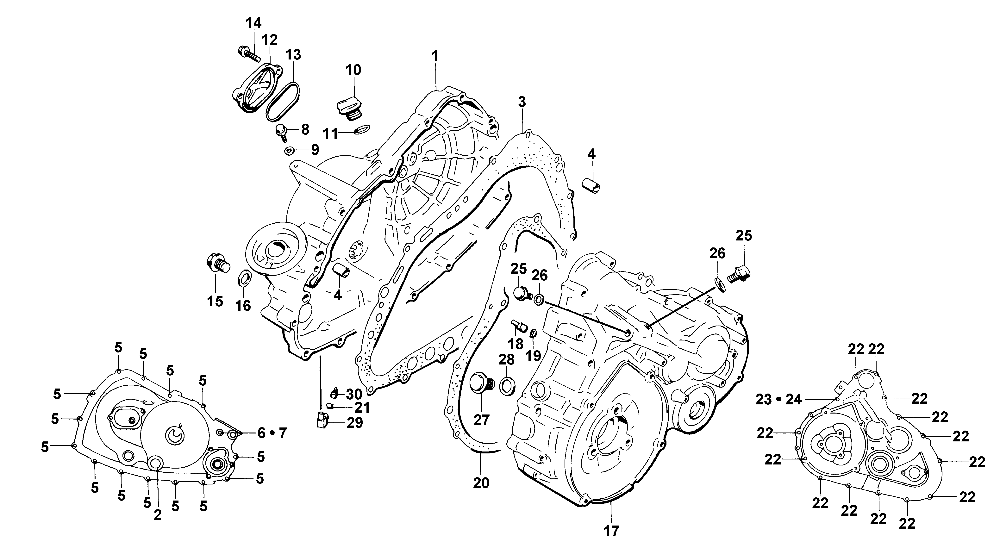

Crankcase cover assembly Запчасти для квадроциклов ATV Arctic Cat 400-500 4x4 (1998)

Crankcase cover assembly

Arctic Cat 400-500 4x4

oem код

название

цена

3402-199

Cover, Clutch (inc. 2) (400)

3402-367

Cover, Comp - Clutch (inc. 2) (500)

3402-112

Lens, Oil Inspection

3402-108

Gasket, Sub Trans

3423-088

Pin, Cylinder Head Knock(aligment)

3007-503

Болт

3423-097

Bolt, Clutch Cover-m6x70

Прокладка

Болт

Plug, 20mm

O Ring D:3.1 Id:16.8

Cap, Inspection (400)

3402-363

Cap, Inspection (500)

3402-101

O Ring, Inspection Cap

Винт

Plug, 14mm (400)

Plug, 14mm (500)

Gasket, Oil Plug,m13.8x18.8x0.4

3402-106

Cover Set, Transfer (inc. 18-19) (400)

3402-368

Cover, Transfer (inc. 18-19) (500)

3402-097

Jet, Air

3423-051

Кольцо

3402-538

Gasket, Transfer Cover

3423-120

Clip, Water Drain Tube Hose,m8

Болт

Bolt, Crank M6x70

Bolt, Ground (400)

Plug, Oil Gallery(bolt),8mm (500)

Gasket, M8.2x14x1.6

Пробка 16мм

Прокладка M16x22x2

Union, Water Drain

Tube, Water Drain

Bolt, 6x10 (r/b 3007-457)

3423-098

Bolt, Transfer Cover-m6x40 (rb 3007-496)

3004-705

Bolt, M8x12 (rb 3007-407) (400)
