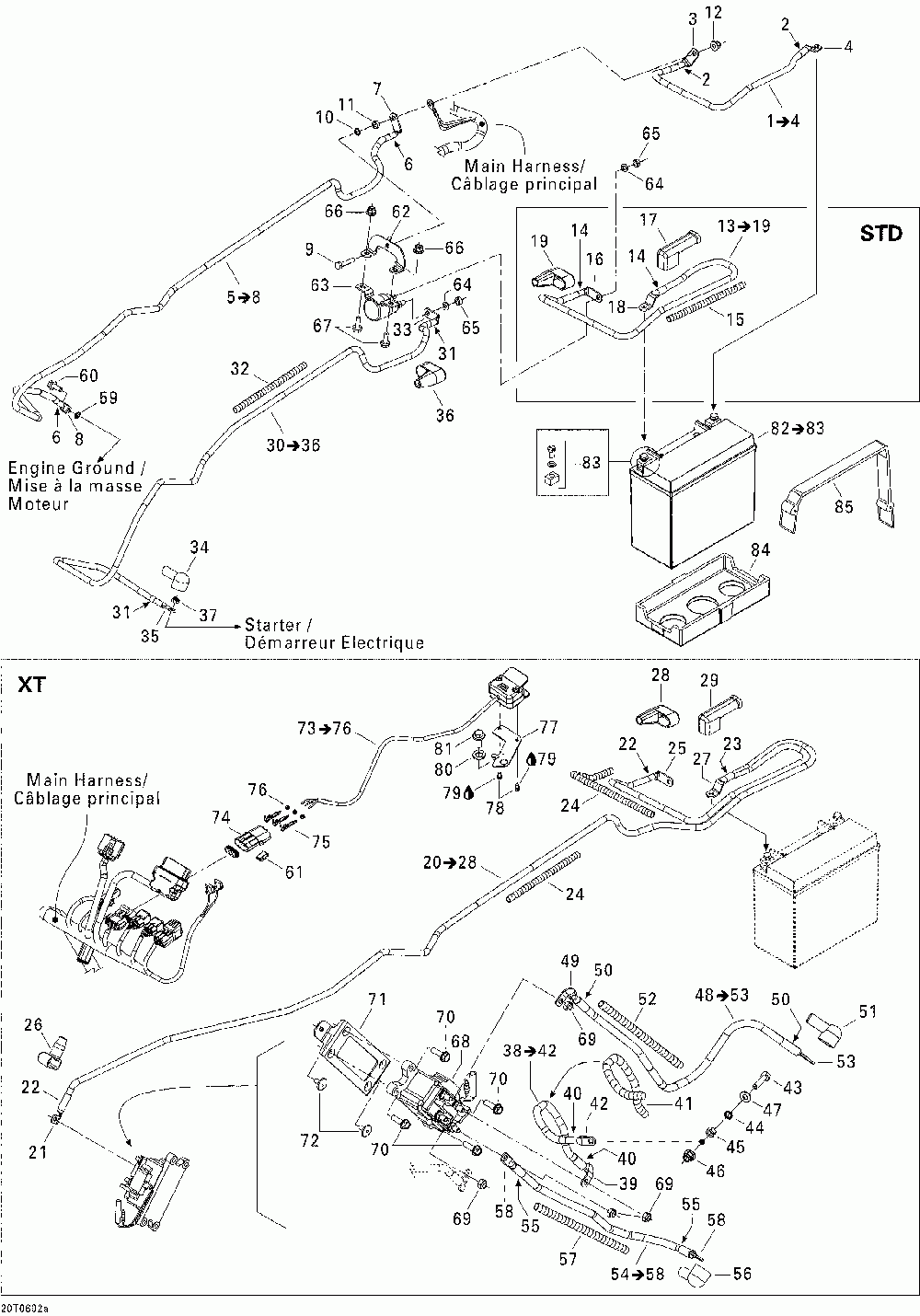

Электрическая система XT

Can-Am (Bombardier) Outlander Max 800 XT 4 X 4
Can-Am (Bombardier)
#oem кодцена
1
710000830
Cable Masse *cable-ground Includes 1 To 4
4
710000518
Cosse A Anneau *open Baril
5
710000844
Cable Masse *cable-ground Includes 5 To 8
8
710000530
Terminal *terminal
9
207162544
Винт
10
234461608
Washer-lock Serrated Din.6798a-a2
11
232061414
Гайка
12
233061414
Гайка Din.6927
20
710000843
Cable Positif *cable-positive Xt, Includes 20 To 28
21
710000476
Cosse A Anneau *open Baril Xt
24
710000497
Gaine *protector Tube Xt
26
710001828
Capuchon *cap Xt
27
710000519
Cosse A Anneau *open Baril Xt
28
710000902
Capuchon *cap Xt
29
710000516
Capuchon *cap Xt
30
710000903
Cable Positif *cable-positive Includes 30 To 36
32
710000497
Защитная оплетка шланга
34
710000526
Крышка
35
710000530
Terminal *terminal
36
710000902
Крышка
37
232561414
Гайка с тефлоном
38
710000455
Cable Negatif *negative Cable Xt / Includes 38 To 42
39
710000476
Cosse A Anneau *open Baril Xt
41
710000497
Gaine *protector Tube Xt
42
710000530
Terminal *terminal Xt
43
207162544
Screw-hex.cap Din.933 Xt
44
234461608
Washer-lock Serrated Din.6798a-a2 Xt
45
232061414
Nut-hexagonal Din.934 Xt
46
233261414
Nut-flange Elastic Din.6926 Xt
47
224061121
Washer-flat Xt
48
710000451
Cable Positif *cable-positive Xt / Includes 48 To 53
49
710000476
Cosse A Anneau *open Baril Xt
52
710000497
Gaine *protector Tube Xt
53
710000530
Terminal *terminal Xt
54
710000454
Cable Positif *cable-positive Xt / Includes 54 To 58
57
710000497
Gaine *protector Tube Xt
58
710000530
Terminal *terminal Xt
59
234461608
Washer-lock Serrated Din.6798a-a2
60
207561644
Винт
61
409014200
Clip *clip Xt
62
705201325
Supp. Solenoide*solenoid-supp.
63
515176011
Solenoide Dem. *relay-starter
64
234161601
Шайба Din.127b-a2
65
232061600
Гайка
66
233061414
Гайка Din.6927
67
207661244
Винт
68
710001000
Solenoide *solenoid Xt
69
232561414
Nut-stop Elastic Din.985 Xt
70
210262080
Screw-forming Hex.hd.fl.gm6174m Xt
71
710000798
Sup. Solenoid *relay Bracket Xt
72
390406500
Rivet-pop 3/16 *rivet-pop 3/16 Xt
73
710001001
Interrupteur *switch Xt / Includes 73 To 76
74
278000281
Bloc 3 Circ.fem*housing-tab Xt
75
278000222
Cosse Male *terminal-male Xt
77
710000755
Support Noir *black Support Xt
78
250000153
Slotted Head Hex Cap Screw 6-32 X 1/4 Xt
80
234101601
Washer-lock Helical Din.127b-a2 Xt
81
250000029
Screw-hex.cap Din.961 M10 X 16 Xt
82
410301203
Batterie Ytx20lbs*battery18amps(wet) Includes 82 To 83
83
295500849
Ens. Boulon Ba*fastener Battery Kit
84
710000279
Tampon Batterie*insulator Pad
85
293850077
Sangle Retenue *strap-rubber
