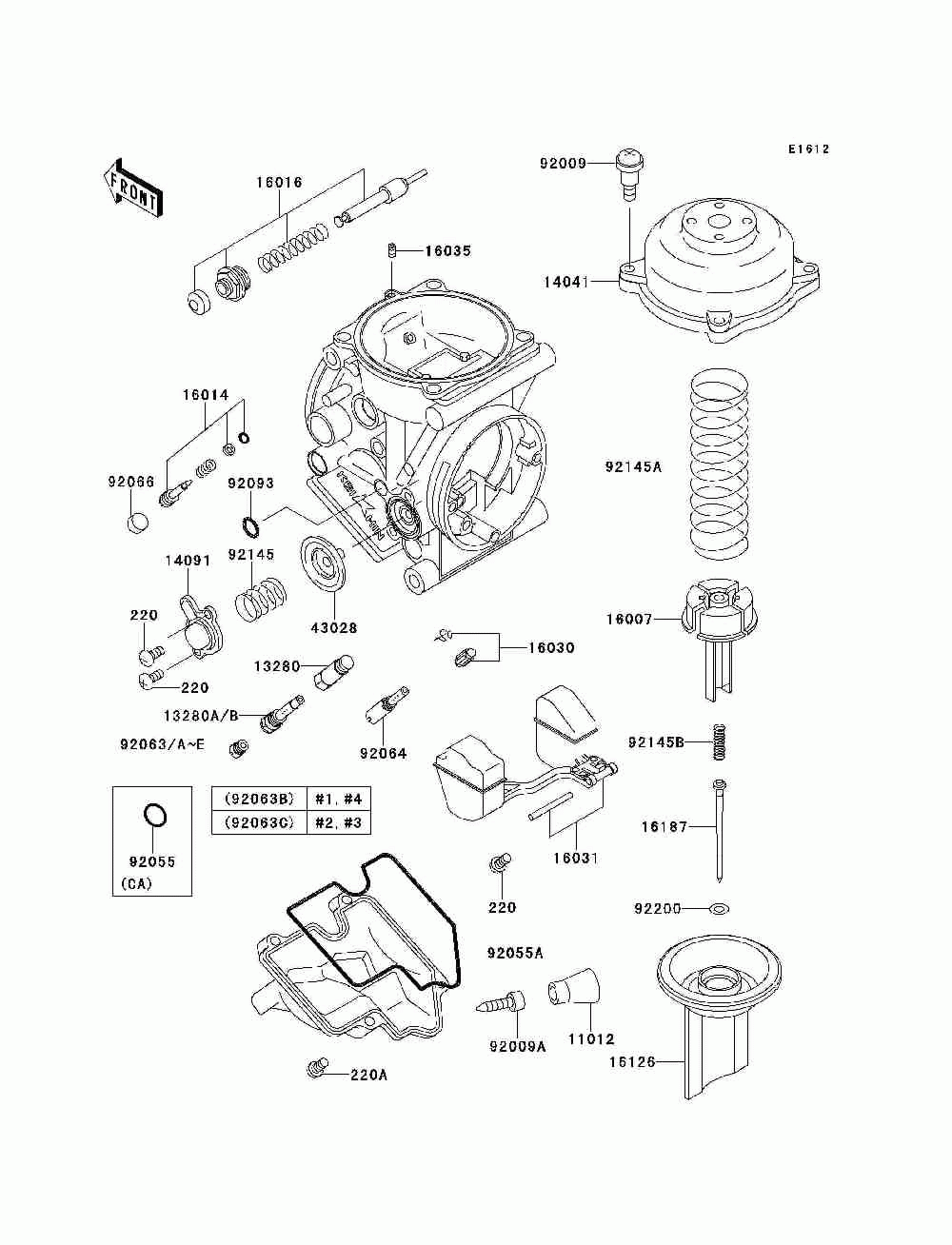

Карбюратор в разборе

Kawasaki Ninja ZX-9R (ZX900-E2)
Kawasaki
#oem кодцена
220
220AA0408
Винт
220A
220AA0414
Винт
11012
11012-1675
Cap, Drain Screw
13280
13280-1096
Holder, Jet
13280A
13280-1194
Holder, Jet Needle Cnus
13280B
13280-1200
Holder, Jet Needle Ca
14041
14041-1138
Cover-comp, Mixing Top
14091
14091-1246
Cover, Air Cut Valve
16007
16007-1206
Seat-spring, Vacuum Va
16014
16014-1105
Screw-pilot Air
16016
16016-1114
Плунжер
16030
16030-1094
Игла запорная
16031
16031-1097
Поплавок
16035
16035-1055
Jet-air, Leak
16126
16126-1392
Valve, Vacuum Valve
16187
16187-1131
Needle-jet, N9bb
43028
43028-1085
Diaphragm, Air Cut Val
92009
92009-1549
Screw, 4x4.4
92009A
92009-1551
Винт
92055
92055-1004
"o" Ring Ca
92055A
92055-1589
Ring-o, Float
92063B
92063-1345
Jet-main, #160
92063C
92063-1347
Jet-main, #165
92064
92064-1210
Jet-pilot, #38
92066
92066-1051
Plug, Pilot Screw
92093
92093-1046
Seal-"u"rin
92145
92145-1149
Spring, Air Cut Valve
92145A
92145-1337
Spring, Vacuum Valve
92145B
92145-1338
Spring, Needle Jet
92200
92200-1525
Washer, Needle Jet
92063
92063-1332
Jet-main, #155 (option)
92063A
92063-1344
Jet-main, #158 (option)
92063D
92063-1386
Jet-main, #170 (option)
92063E
92063-1387
Jet-main, #175 (option)
