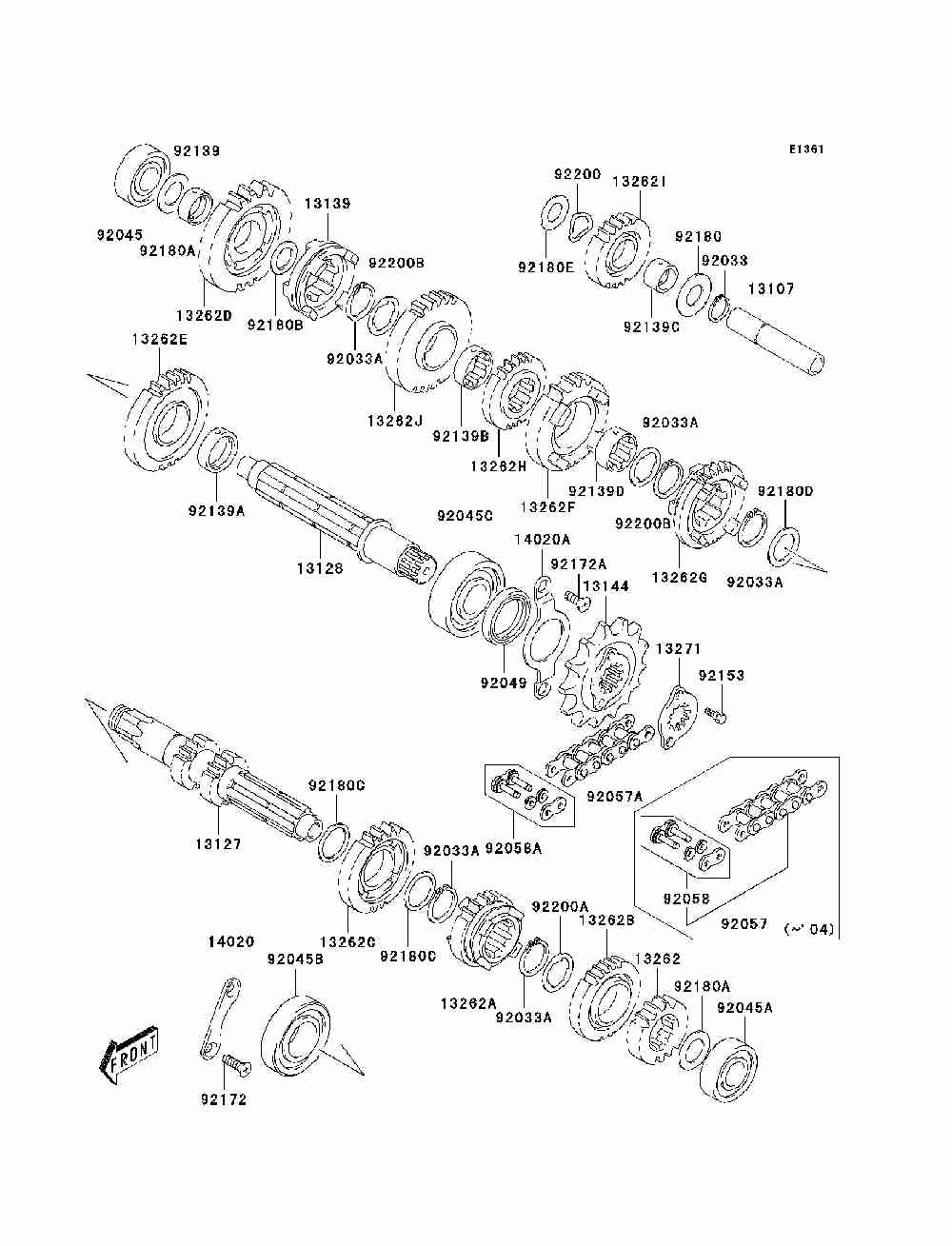

ТРАНСМИССИЯ

Kawasaki KFX400 (KSF400-A3)
Kawasaki
#oem кодцена
13107
13107-S005
Shaft, Reverse Idle
13127
13127-S006
Shaft-transmission In
13128
13128-S008
Shaft-transmission Ou
13139
13139-S002
Shifter, Reverse
13144
13144-S006
Sprocket-output, 14t
13262
13262-S011
Gear, Input, 2nd, 18t
13262A
13262-S012
Gear, Input, 3rd, 21t
13262B
13262-S013
Gear, Input, 4th, 23t
13262C
13262-S014
Gear, Input, 5th, 26t
13262D
13262-S015
Gear, Output, Low, 33t
13262E
13262-S016
Gear, Output, 2nd, 30t
13262F
13262-S017
Gear, Output, 3rd, 26t
13262G
13262-S018
Gear, Output, 4th, 23t
13262H
13262-S019
Gear, Output, 5th, 22t
13262I
13262-S020
Gear, Reverse, 24t
13262J
13262-S033
Gear, Reverse, 28t
13271
13271-S047
Пластина
14020
14020-S007
Седло
14020A
14020-S010
Седло
92033
92033-S078
Кольцо
92033A
92033-S039
Кольцо
92045
92045-S035
Bearing-ball, Cranksha
92045A
92045-S051
Подшипник
92045B
92045-S052
Подшипник
92045C
92045-S053
Подшипник
92049
92049-S051
Seal-oil, Drive Shaft
92057A
92057-S018
Цепь
92058A
92058-S006
Joint-chain
92139
92139-S022
Втулка
92139A
92139-S023
Bushing, 2nd Gear
92139B
92139-S025
Втулка
92139C
92139-S026
Bushing, Reverse Idle
92139D
92139-S027
Bushing, 3rd Gear
92153
92153-S284
Bolt, Engine Sprocket
92172
92172-S112
Винт
92172A
92172-S171
Screw, Retainer
92180
92180-S013
Shim, Reverse Idle Gea
92180A
92180-S014
Shim, 2nd Gear
92180B
92180-S015
Shim, 1st Gear
92180C
92180-S016
Shim, 5th Gear
92180D
92180-S017
Shim, 2nd Gear
92180E
92180-S046
Shim, Reverse Idle Gea
92200
92200-S142
Washer, Reverse Gear
92200A
92200-S145
Washer, 4th Gear
92200B
92200-S146
Washer, 3rd Gear
13262G
13262-S045
Gear, Output, 4th, 23t
