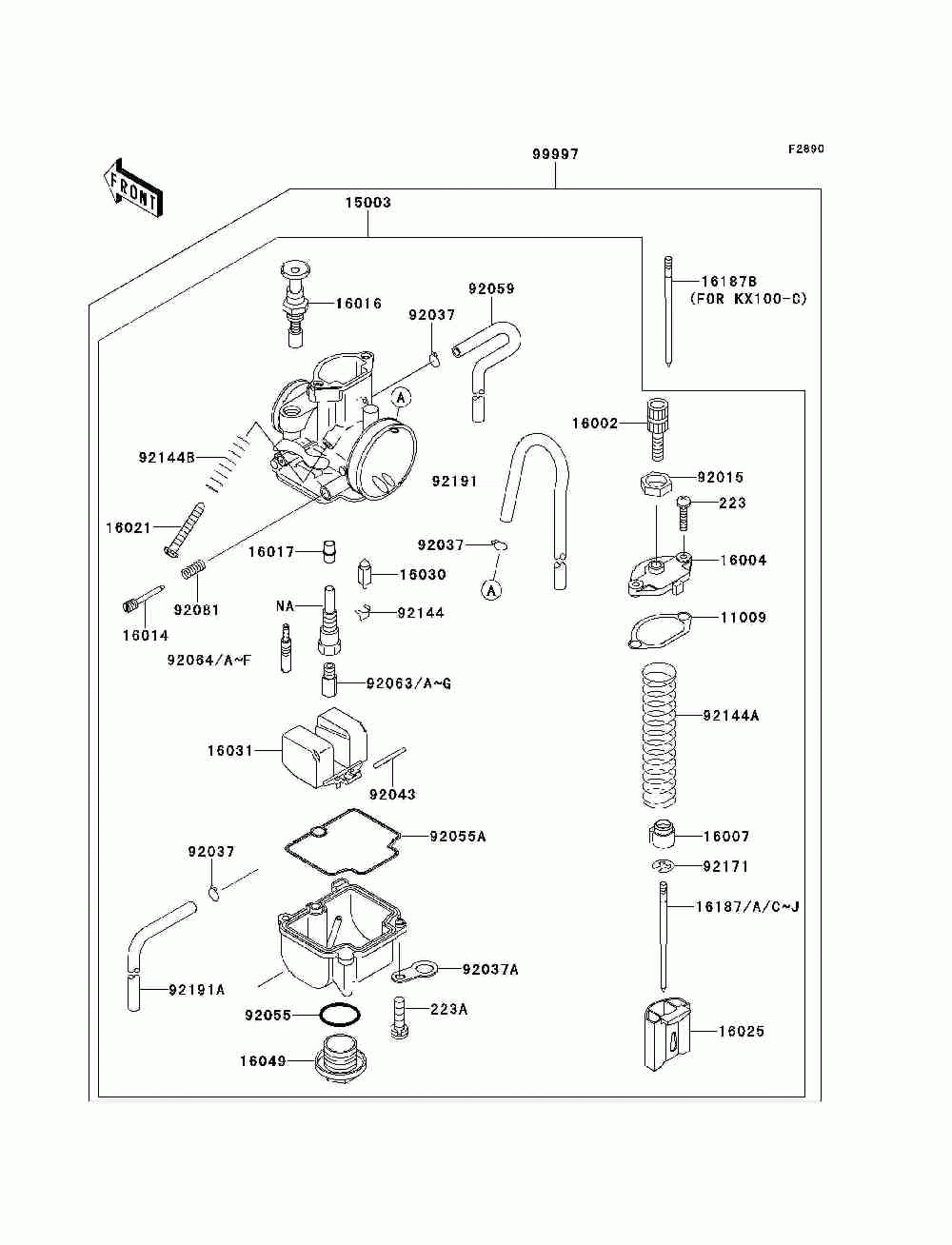

Optional parts(carburetor)

Kawasaki KX100 (KX100-C2)

Optional parts(carburetor)

#

oem код

название

цена

11009

Gasket, Mixing Chamber

Gasket, Mixing Chamber

15003

Carburetor-assy

Carburetor-assy

16002

Adjuster-cable

Adjuster-cable

16004

Cap-chamber, Mixing

Cap-chamber, Mixing

16007

Seat-spring, Throttle

Seat-spring, Throttle

16014

Screw-pilot Air

Screw-pilot Air

16016

Плунжер

Плунжер

16017

Jet-needle

Jet-needle

16021

Screw-throttle Stop

Screw-throttle Stop

16025

Valve-throttle, Ca3.5

Valve-throttle, Ca3.5

16030

Игла запорная

Игла запорная

16031

Поплавок

Поплавок

16049

Cover-main Jet

Cover-main Jet

16187

Needle-jet, Nada 2.355 (option)

Needle-jet, Nada 2.355 (option)

16187A

Needle-jet, Nadb 2.365 (option)

Needle-jet, Nadb 2.365 (option)

16187B

Needle-jet, Nadc 2.375

Needle-jet, Nadc 2.375

16187C

Needle-jet, Nadd 2.385 (option)

Needle-jet, Nadd 2.385 (option)

16187D

Needle-jet, Nade 2.395 (option)

Needle-jet, Nade 2.395 (option)

16187E

Needle-jet, Naea 2.355 (option)

Needle-jet, Naea 2.355 (option)

16187F

Needle-jet, Naeb 2.365 (option)

Needle-jet, Naeb 2.365 (option)

16187G

Needle-jet, Naec 2.375

Needle-jet, Naec 2.375

16187I

Needle-jet, Naed 2.385 (option)

Needle-jet, Naed 2.385 (option)

16187J

Needle-jet, Naee 2.395 (option)

Needle-jet, Naee 2.395 (option)

92015

Гайка

Гайка

92037

Зажим

Зажим

92037A

Хомут

Хомут

92043

Палец

Палец

92055

Ring-o, Main Jet Cover

Ring-o, Main Jet Cover

92055A

Ring-o, Float Chamber

Ring-o, Float Chamber

92059

Tube, 4x7x480

Tube, 4x7x480

223

Screw-pan-ws-cros

Screw-pan-ws-cros

223A

Screw-pan-ws-cros

Screw-pan-ws-cros

92063

Jet-main, #130 (option)

Jet-main, #130 (option)

92063A

Jet-main, #132 (option)

Jet-main, #132 (option)

92063B

Jet-main, #135 (option)

Jet-main, #135 (option)

92063C

Jet-main, #138

Jet-main, #138

92063D

Jet-main, #140 (option)

Jet-main, #140 (option)

92063E

Jet-main, #142 (option)

Jet-main, #142 (option)

92063F

Jet-main, #145 (option)

Jet-main, #145 (option)

92063G

Jet-main, #148 (option)

Jet-main, #148 (option)

92064

Jet-pilot, #52 (option)

Jet-pilot, #52 (option)

92064A

Jet-pilot, #38 (option)

Jet-pilot, #38 (option)

92064B

Jet-pilot, #40 (option)

Jet-pilot, #40 (option)

92064C

Jet-pilot, #42 (option)

Jet-pilot, #42 (option)

92064D

Jet-pilot

Jet-pilot

92064E

Jet-pilot, #48 (option)

Jet-pilot, #48 (option)

92064F

Jet-pilot (option)

Jet-pilot (option)

92081

Spring, Adjust Screw

Spring, Adjust Screw

92144

Spring, Float

Spring, Float

92144A

Spring, Throttle Valve

Spring, Throttle Valve

92144B

Spring, Throttle Stop

Spring, Throttle Stop

92171

Зажим

Зажим

92191

Tube, 4x7x560

Tube, 4x7x560

92191A

Tube, 4x7x420

Tube, 4x7x420

99997

Kit-carburetor

Kit-carburetor
