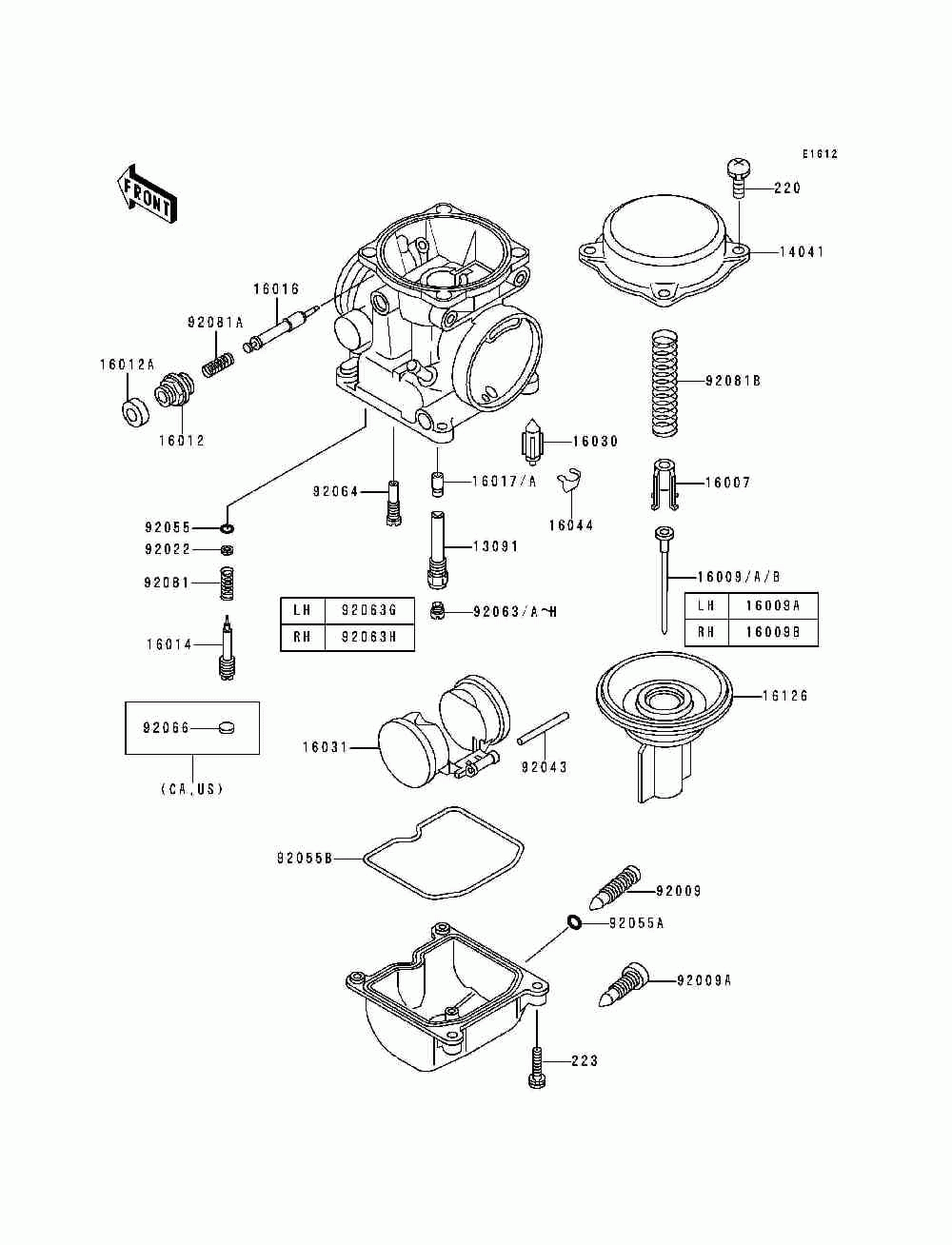

Карбюратор в разборе

Kawasaki Vulcan 500 (EN500-A5)
Kawasaki
#oem кодцена
13091
13091-1425
Держатель
14041
16005-1065
Top-chamber, Mixing
16007
16007-1117
Seat-spring, Throttle
16009
16009-1615
Needle-jet, N60q Caus
16009A
16009-1616
Needle-jet, N60t Cn
16009B
16009-1617
Needle-jet, N60s Cn
16012
16012-1051
Cap-starter Plunger
16012A
16012-1052
Cap-starter Plunger
16014
16014-1054
Screw-pilot Air
16016
16016-1077
Плунжер
16017
16017-1059
Needle Jet Caus
16017A
16017-1277
Jet-needle Cn
16030
16030-1007
Float Valve
16031
16031-1056
Поплавок
16044
16044-007
Clip, Float Valve
16126
16126-1173
Valve, Vacuum
92009
92009-1095
Винт
92009A
92009-1551
Винт
92022
92022-1003
Шайба
92043
92043-1148
Палец
92055
92055-1002
O Ring, Pilot Adj
92055A
92055-1053
"o" Ring, Dr
92055B
92055-1222
Ring-o, Float Chamber
92063
92063-1008
Main Jet, #100 Cn (racing Use Only)
92063A
92063-1009
Main Jet, #105 Cn
92063B
92063-1071
Jet-main, #118 Caus (racing Use Only)
92063C
92063-1072
Main Jet, 2nd, #120 Caus (racing Use Only)
92063D
92063-1114
Jet-main #110 (racing Use Only)
220
220AA0408
Screw-pan-cros Caus
223
223AB0416
Screw-pan-ws-cros
482
482L4000
Circlip-type-e
92063E
92063-1115
Jet-main, #102 Cn (racing Use Only)
92063F
92063-1116
Jet-main #108 (racing Use Only)
92063G
92063-1117
Jet-main #112 Caus
92063H
92063-1118
Jet-main #115 Caus
92064
92064-1101
Jet-pilot, #35
92066
92066-1051
Plug, Pilot Screw Caus
92081
92081-1002
Spring, Pirot Adj Scrw
92081A
92081-1618
Spring, Starter Plunge
92081B
92081-1874
Spring, Vacuum Valve
482
482EA4000
Circlip-type-e
