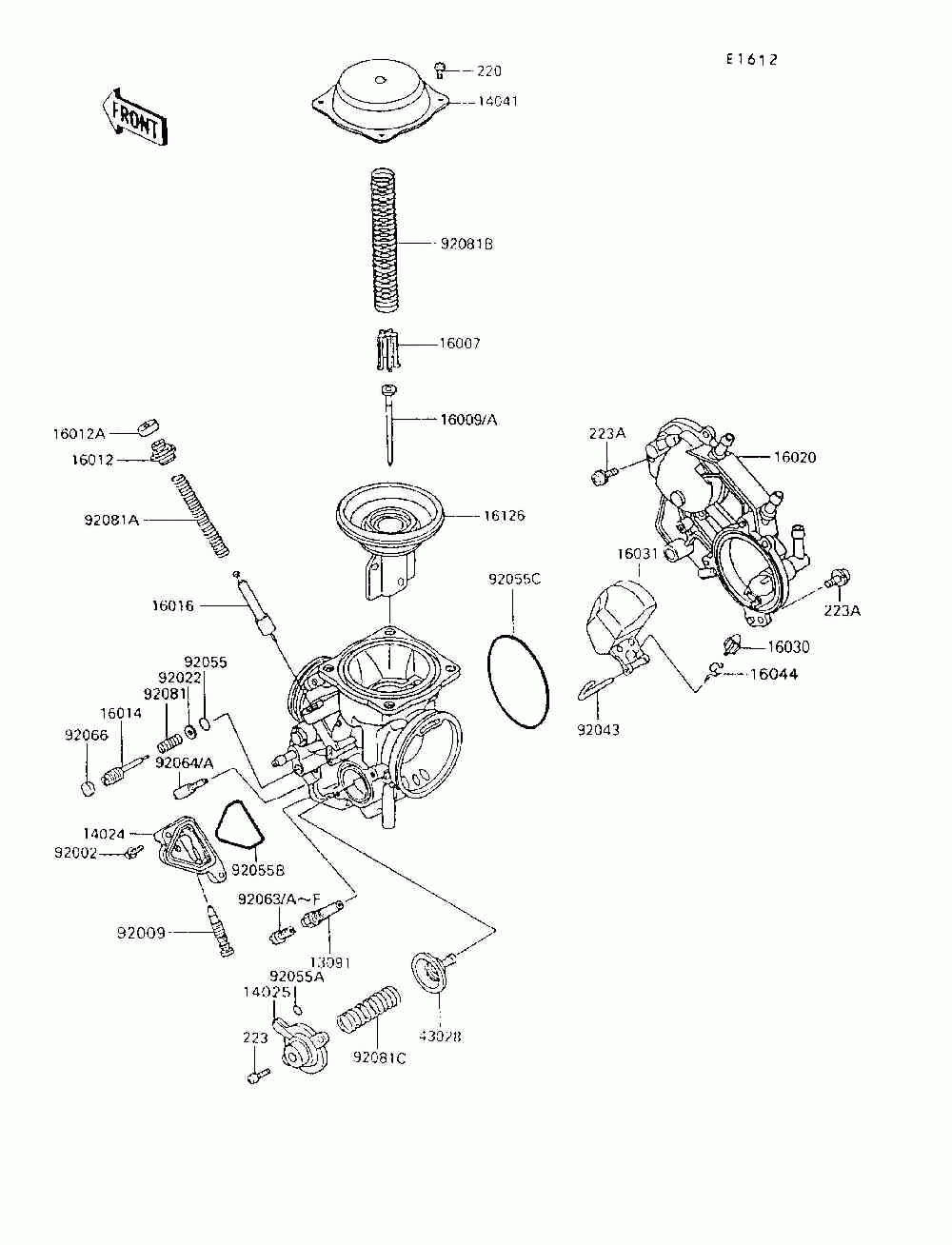

Карбюратор в разборе

Kawasaki Vulcan 750 (VN750-A10)
Kawasaki
#oem кодцена
13091
13091-1384
Держатель
14024
14024-1094
Cover, Drain
14025
14025-1903
Cover, Air Cut Valve
14041
16005-1065
Top-chamber, Mixing
16007
16007-1117
Seat-spring, Throttle
16009
16009-1327
Needle-jet, N53a, Fr
16009A
16009-1328
Needle-jet, N53b, Rr
16012
16012-1051
Cap-starter Plunger
16012A
16012-1052
Cap-starter Plunger
16014
16014-1054
Screw-pilot Air
16016
16016-1066
Плунжер
16020
16020-1051
Chamber-float, Comp
16030
16030-1057
Игла запорная
16031
16031-1059
Поплавок
16044
16044-007
Clip, Float Valve
16126
16126-1173
Valve, Vacuum
43028
43028-1053
Diaphragm, Air Cut Val
92002
92150-1851
Болт
92009
92009-1551
Винт
92022
92022-1003
Шайба
92043
92043-1285
Палец
92055
92055-1002
O Ring, Pilot Adj
92055A
92055-1245
Кольцо
92055B
92055-1290
Кольцо
92055C
92055-1291
Кольцо
92063
92063-1014
Main Jet, #135 (racing Use Only)
92063A
92063-1015
Main Jet, #138 (racing Use Only)
92063B
92063-1069
Main Jet, 2nd, #125 (racing Use Only)
92063C
92063-1073
Main Jet, 2nd, #122 (racing Use Only)
92063D
92063-1074
Main Jet, 2nd, #128 (racing Use Only)
92063E
92063-1075
Main Jet, 2nd, #130 (racing Use Only)
92063F
92063-1076
Jet-main, #132
92064
92064-1118
Jet-pilot
92064A
92064-1123
Jet-pilot, #35 (option)
220
220AA0408
Винт
223
223D0410
Screw-pan-ws-cros
223A
223AA0512
Screw-pan-ws-cros
92066
92066-1051
Plug, Pilot Screw
92081
92081-1002
Spring, Pirot Adj Scrw
92081A
92081-1761
Spring, Starter Plunge
92081B
92081-1874
Spring, Vacuum Valve
92081C
92081-1891
Spring, Air Cut Valve
223
223AA0410
Screw-pan-ws-cros
