Стартер Оригинальные запчасти для мотоциклов Kawasaki Zephyr 750 (ZR750-C3) (1993)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

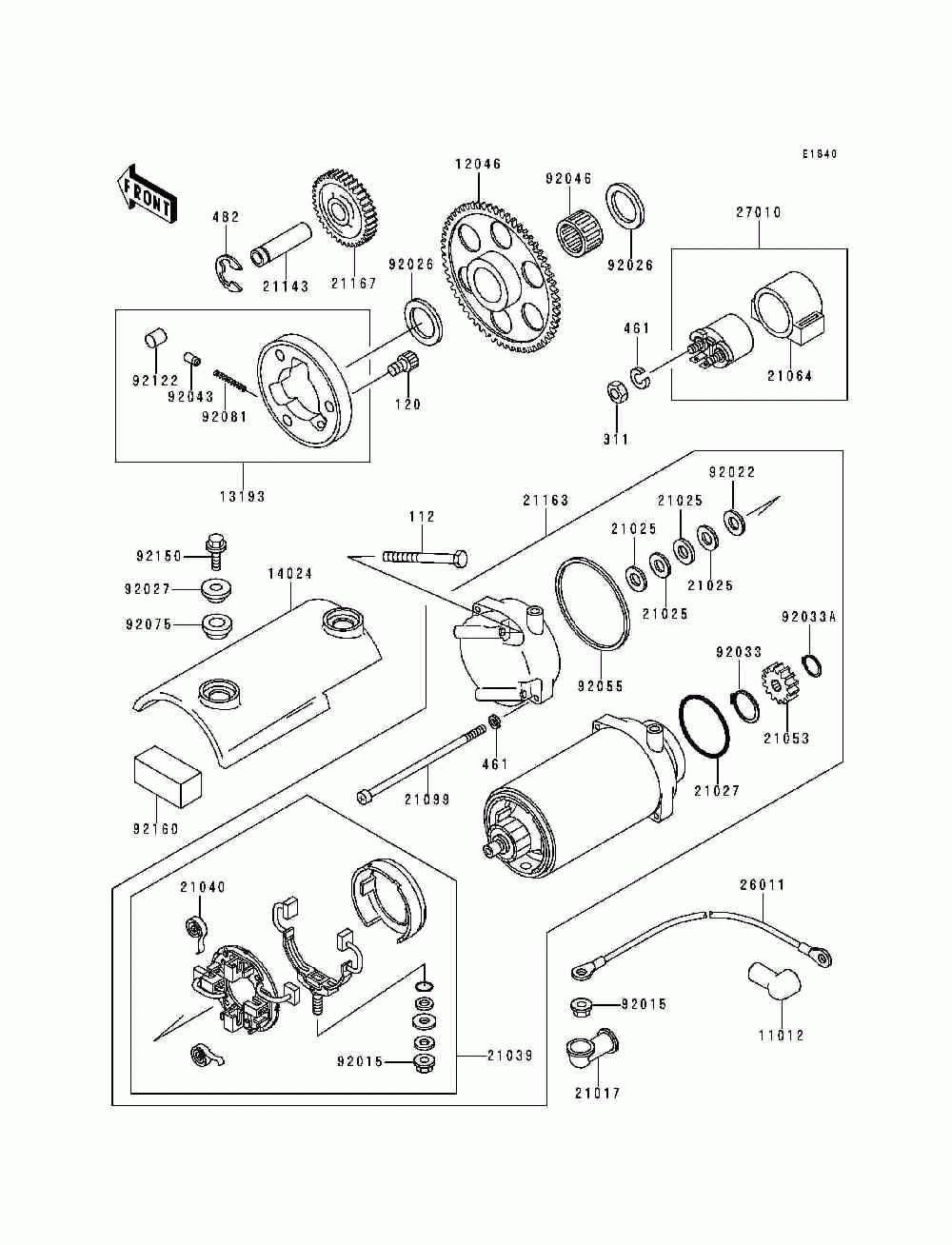

Стартер

Kawasaki Zephyr 750 (ZR750-C3)

Стартер

#

oem код

название

цена

112

Болт

Болт

120

Bolt, Socket, 8x12

Bolt, Socket, 8x12

311

Nut-hex, 6mm

Nut-hex, 6mm

461

Washer-spring, 6mm

Washer-spring, 6mm

482

Circlip-type-e, 12mm

Circlip-type-e, 12mm

11012

Cap, Terminal

Cap, Terminal

12046

Sprocket, Starter, 58t

Sprocket, Starter, 58t

13193

Clutch-assy-oneway

Clutch-assy-oneway

14024

Cover, Starter Motor

Cover, Starter Motor

21017

Grommet, Cord

Grommet, Cord

21025

Washer, Thrust, 0.2t

Washer, Thrust, 0.2t

21027

Кольцо

Кольцо

21039

Brush, Carbon

Brush, Carbon

21040

Spring-brush

Spring-brush

21053

Gear-spur

Gear-spur

21064

Damper Mag Switch Shk

Damper Mag Switch Shk

21099

Screw, Pan Head, 6x130

Screw, Pan Head, 6x130

21143

Вал

Вал

21163

Starter-electric

Starter-electric

21167

Gear, Idle, 29t

Gear, Idle, 29t

26011

Wire-lead, Start Motor

Wire-lead, Start Motor

27010

Switch, Magnetic

Switch, Magnetic

92015

Nut, 6mm

Nut, 6mm

92022

Washer, Thrust, 0.8t

Washer, Thrust, 0.8t

92026

Spacer, 25x36x3.2

Spacer, 25x36x3.2

92027

Collar, L=7.4

Collar, L=7.4

92033

Кольцо

Кольцо

92033A

Circlip, 13m/m

Circlip, 13m/m

92043

Штифт

Штифт

92046

Brg, Needle, K253017

Brg, Needle, K253017

92055

"0" Ring, St

"0" Ring, St

92075

Damper, Rubber

Damper, Rubber

92081

Пружина

Пружина

92122

Ролик

Ролик

92150

Bolt, Flanged, 6x12

Bolt, Flanged, 6x12

92160

Демпфер

Демпфер

112

Болт

Болт
